The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

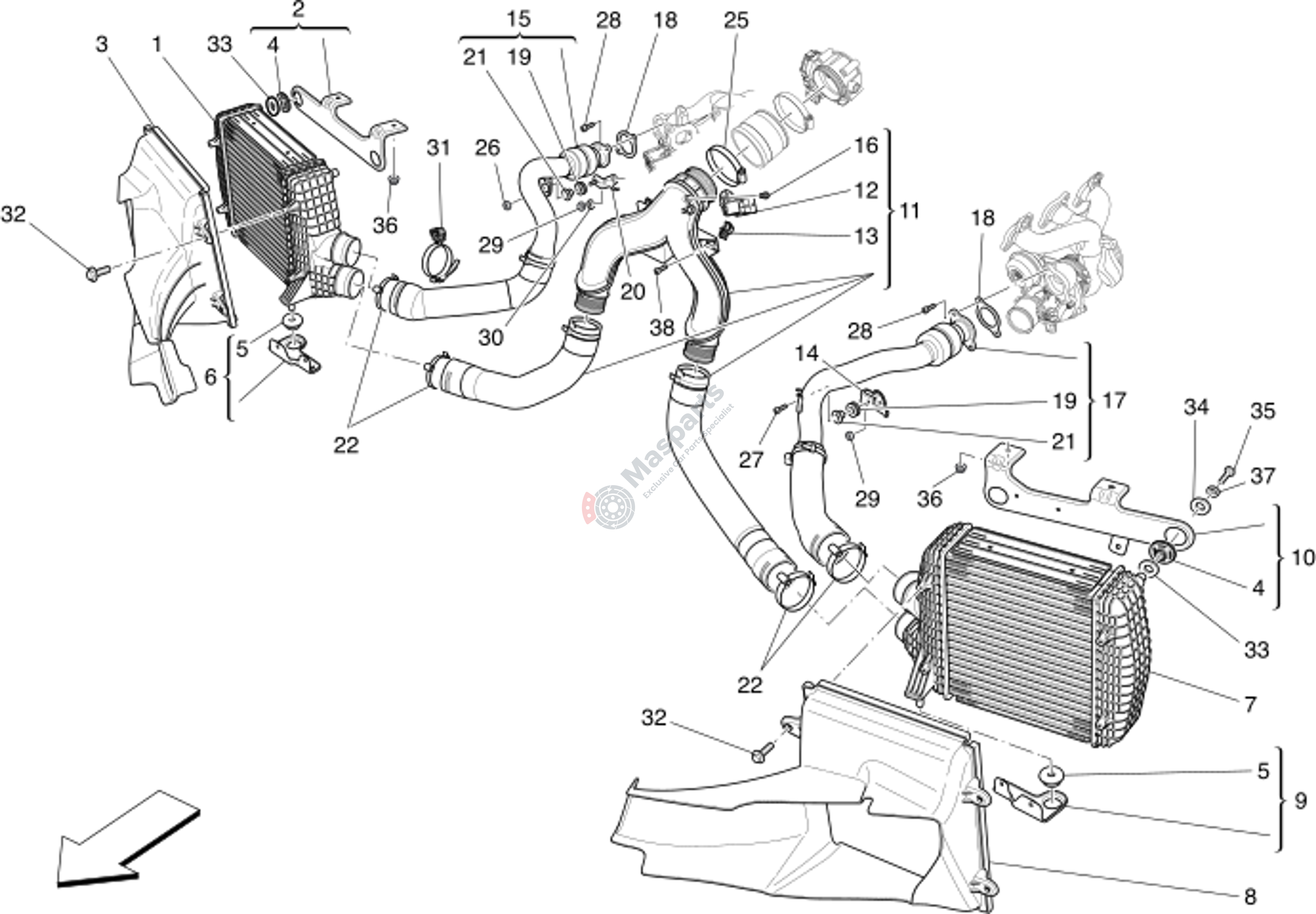

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670039351 | Intecooler |
€323,00 |
|
|
| 2 | M-670001349 | Ic Upper Rh Support Bracket |
€23,18 |
|
|
| 3 | M-670038774 | Rh Side Air Duct ˇ |
€51,85 |
|
|
| 4 | M-675000201 | Small Block. |
€7,91 |
|
|
| 5 | M-670009556 | Radiator Support Fastening B |
€2,61 |
|
|
| 6 | M-670037757 | Lower Intercooler Bracket |
€16,47 |
|
|
| 7 | M-670035636 | L.H. Intercooler |
€323,00 |
|
|
| 8 | M-670038777 | Lh Side Air Duct ˇ |
€51,85 |
|
|
| 9 | M-670037759 | Intercooler Bracket |
€80,78 |
|
|
| 10 | M-670001348 | Ic Upper Lh Support Bracket |
€29,44 |
|
|
| 11 | M-670039354 | Sleeve |
€376,55 |
|
|
| 12 | M-675000248 | Air Temp Sensor |
€99,76 |
|
|
| 13 | M-670006739 | Retaining Clip |
€2,09 |
|
|
| 14 | M-670009370 | Lh Bracket |
€9,20 |
|
|
| 15 | M-670106006 | Sleeve From Turbine To Rh In |
€216,75 |
|
|
| 16 | M-675000190 | Screw |
€2,49 |
|
|
| 17 | M-670106008 | Sleeve From Turbocharg. To I |
€216,75 |
|
|
| 18 | M-670006210 | Gasket |
€3,68 |
|
|
| 19 | M-675000016 | Rubber Bushing |
€4,88 |
|
|
| 20 | M-670104971 | Bracket |
€4,97 |
|
|
| 21 | M-675000017 | Spacer |
€6,90 |
|
|
| 22 | M-675000362 | Collar |
€4,06 |
|
|
| 25 | M-675000685 | Collar |
€6,44 |
|
|
| 27 | M-675000088 | Screw |
€2,24 |
|
|
| 28 | M-675000104 | Screw |
€1,32 |
|
|
| 30 | M-675000366 | Washer |
€1,62 |
|
|
| 31 | M-670006982 | Retaining Clip |
€2,61 |
|
|
| 32 | M-675000354 | Screw |
€2,29 |
|
|
| 33 | M-670007293 | Spacer |
€2,61 |
|
|
| 35 | M-675000409 | Washer |
€2,09 |
|
|
| 37 | M-675000718 | Washer |
€1,89 |
|
|
| 38 | M-675000088 | Screw |
€2,24 |
|
