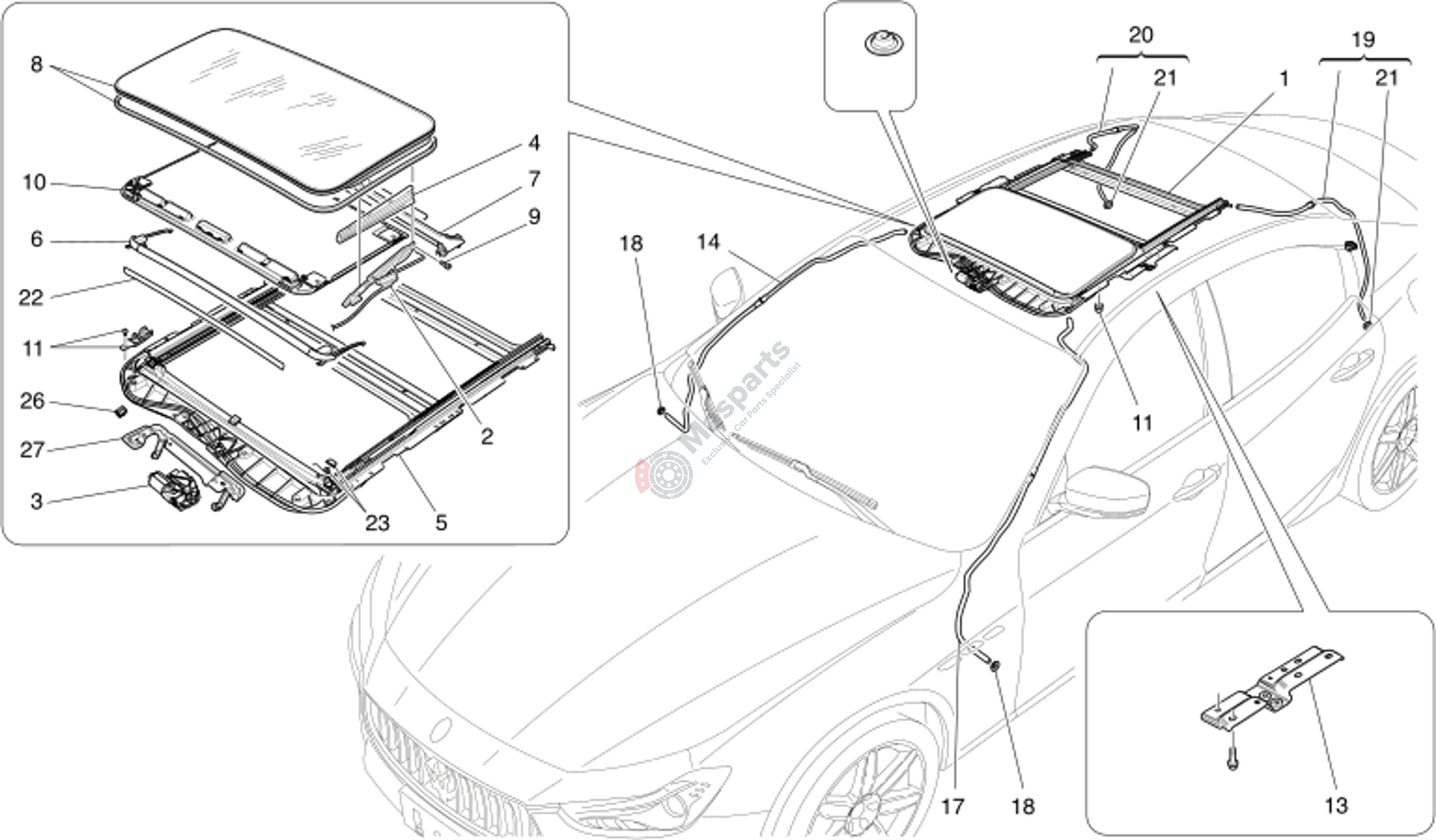

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-980139303 | Rh Mechanism 6109734A |
$128.87 |
|
|
| 3 | M-673000063 | Gearmotor 6113336A |
$385.77 |
|
|
| 4 | M-980139306 | Rh Mechanism Guard 6109725A |
$50.81 |
|
|
| 5 | M-673008102 | Sunroof Frame |
$1,045.86 |
|
|
| 6 | M-673000051 | Deflector 6113337A |
$188.60 |
|
|
| 7 | M-980139310 | Sunroof Guide Rail Assembly |
$61.39 |
|
|
| 8 | M-673009009 | Complete Glass |
$896.93 |
|
|
| 9 | M-980139314 | Glass Fastening Screw 610973 |
$27.93 |
|
|
| 11 | M-673000442 | Fastening Clips Kit |
$23.71 |
|
|
| 13 | M-670030311 | Support Sunroof Rt Bracket |
$18.97 |
|
|
| 14 | M-670003339 | Pipe For Water Outlet |
$35.92 |
|
|
| 17 | M-670003340 | Pipe For Water Outlet |
$33.26 |
|
|
| 18 | M-670031349 | Plug |
$4.54 |
|
|
| 19 | M-670031338 | Lh Rear Water Pipe |
$73.34 |
|
|
| 20 | M-670031337 | Rh Rear Water Pipe |
$73.34 |
|
|
| 21 | M-670005386 | Rubber |
$7.14 |
|
|
| 22 | M-670102014 | Adhesive Flap Sticker Sunroo |
$13.40 |
|
|
| 23 | M-673009181 | Clamps With Plastic Cover |
$59.44 |
|
|
| 27 | M-670159319 | Upholstery Bracket |
$41.55 |
|
