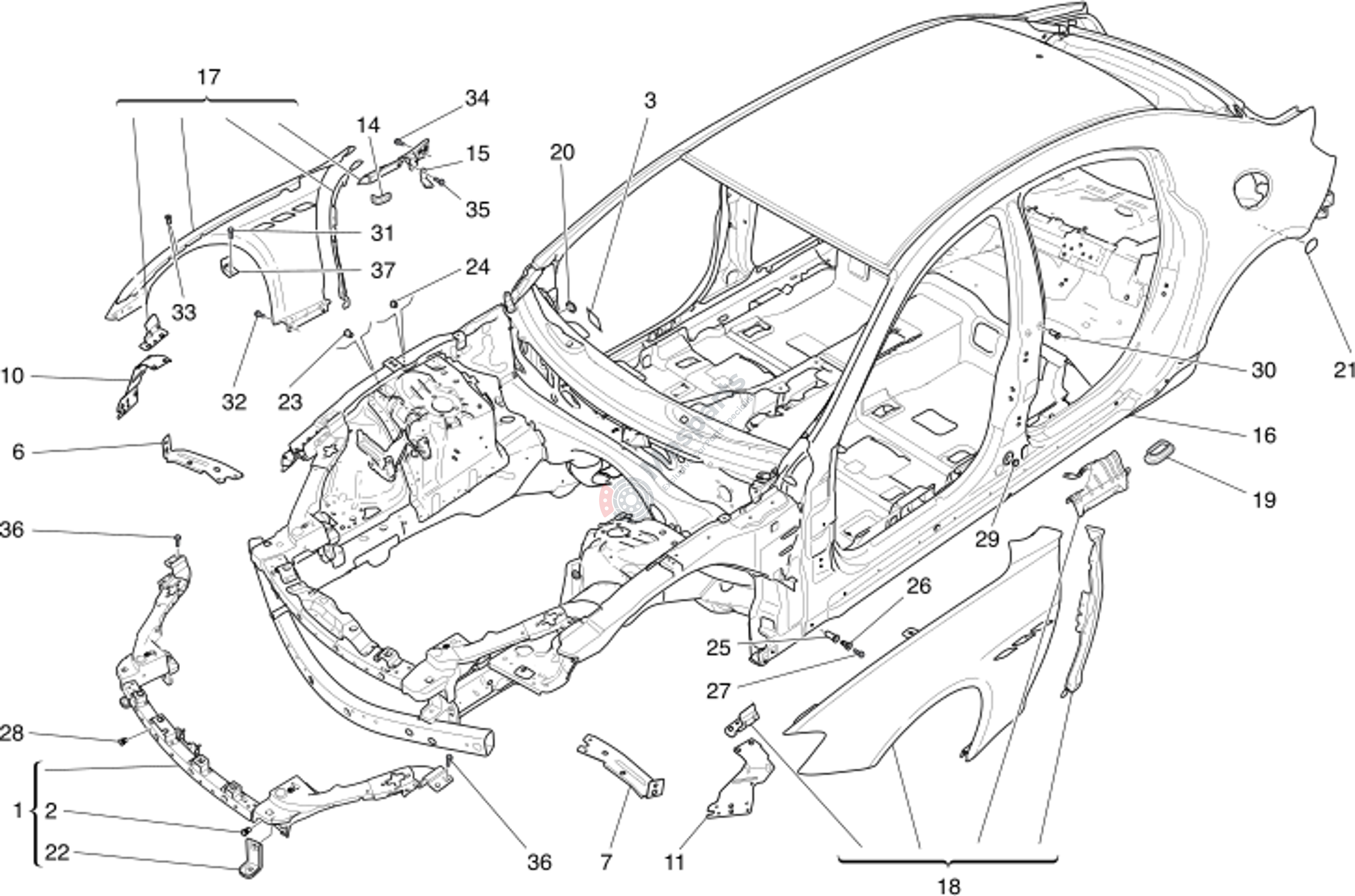

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673010857 | Front Upper Cross Member |
$622.89 |
|
|
| 2 | M-675000399 | Rivet |
$3.18 |
|
|
| 3 | M-675000747 | Protection |
$3.16 |
|
|
| 6 | M-673003653 | Cpl Rh Mudguard Support Brac |
$49.46 |
|
|
| 7 | M-673003652 | Cpl Lh Mudguard Support Brac |
$49.46 |
|
|
| 10 | M-673002588 | Rh Front Mudguard Lower Rein |
$26.95 |
|
|
| 11 | M-673002589 | Sh Front Mudguard Lower Rein |
$26.95 |
|
|
| 14 | M-673000794 | Mudguard Lateral Bracket |
$23.33 |
|
|
| 15 | M-673000796 | Rh Mudguard Upper Fast.Brack |
$20.75 |
|
|
| 17 | M-673002042 | Rh Front Modguard |
$791.16 |
|
|
| 18 | M-673002041 | Lh Front Modguard |
$791.16 |
|
|
| 19 | M-670036842 | Cap |
$1.13 |
|
|
| 20 | M-675000316 | Plug |
$3.17 |
|
|
| 22 | M-670003856 | Headlight Holder Crossmember |
$22.04 |
|
|
| 23 | M-670003669 | Rivet |
$2.20 |
|
|
| 24 | M-670005411 | Rivet |
$1.71 |
|
|
| 25 | M-670005223 | Rivet |
$22.65 |
|
|
| 26 | M-670006065 | Adjustable Insert |
$5.71 |
|
|
| 27 | M-670005287 | M6 Bolt |
$2.47 |
|
|
| 28 | M-670002185 | Rivet |
$2.97 |
|
|
| 29 | M-675000244 | Plug |
$0.98 |
|
|
| 30 | M-675000715 | Nutserts |
$1.71 |
|
|
| 31 | M-675000588 | Screw |
$1.01 |
|
|
| 32 | M-670005287 | M6 Bolt |
$2.47 |
|
|
| 33 | M-675000686 | Rivet |
$1.19 |
|
|
| 34 | M-675000605 | Screw |
$0.98 |
|
|
| 35 | M-675000751 | Screw |
$1.18 |
|
|
| 36 | M-670005314 | Screw M8X25 |
$2.44 |
|
|
| 37 | M-673010188 | Bracket |
$15.27 |
|
