Diagram image not available

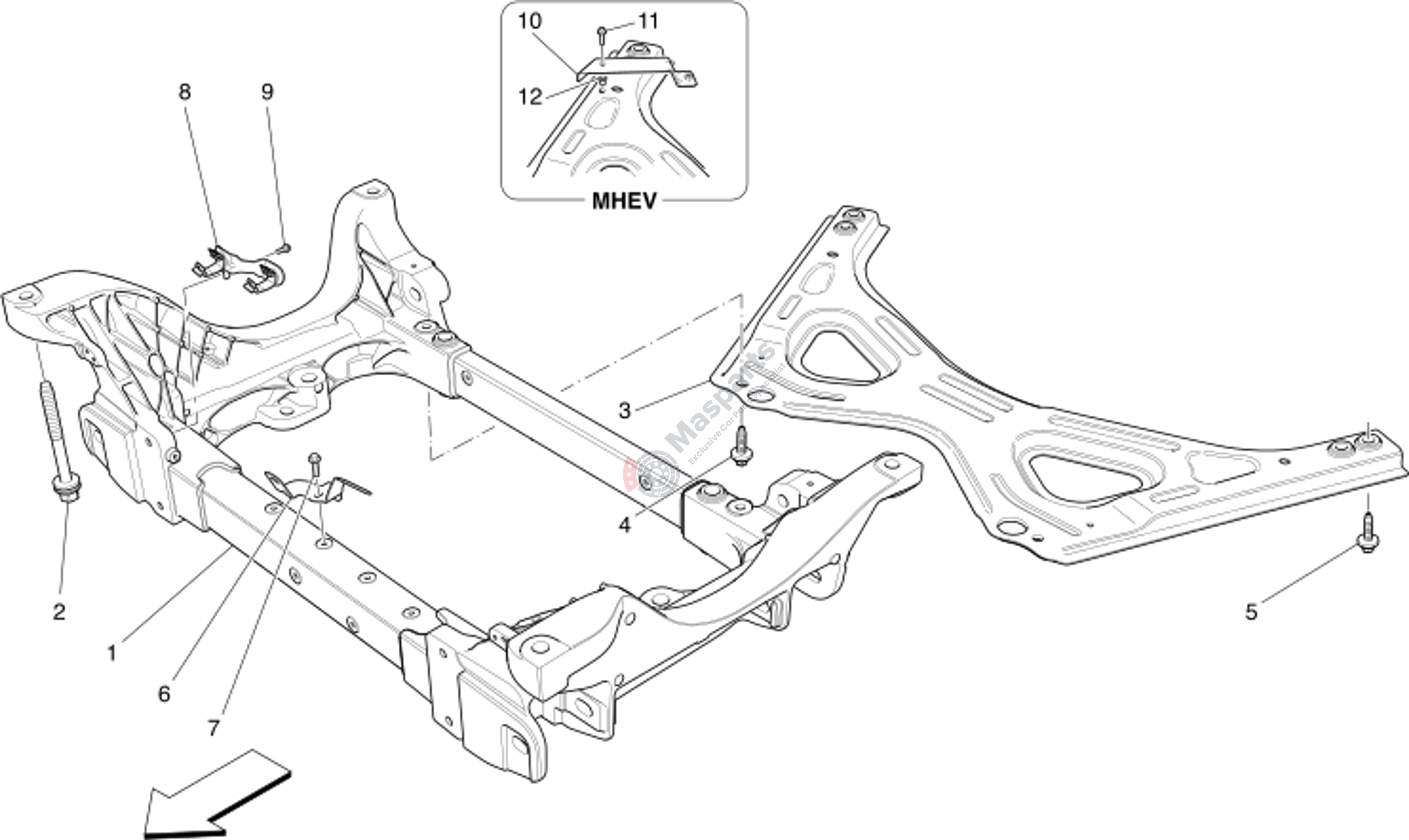

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154977 | Front Suspension Frame M157 |
€1.635,40 |
|
|
| 2 | M-670002915 | Screw |
€12,24 |
|
|
| 3 | M-670154976 | Front Frame Reinf.Cross |
€375,70 |
|
|
| 4 | M-670039625 | Screw M12 X 1.75 |
€8,10 |
|
|
| 5 | M-670003130 | Screw |
€4,28 |
|
|
| 6 | M-670100024 | Bracket (Bz) |
€5,61 |
|
|
| 7 | M-670101724 | Screw & Washer Captive |
€3,34 |
|
|
| 8 | M-670100023 | Water Pump Fastening Bracket |
€4,28 |
|
|
| 9 | M-670101724 | Screw & Washer Captive |
€3,34 |
|
|
| 10 | M-670157456 | Bracket |
€9,75 |
|
|
| 11 | M-675000278 | Screw |
€1,32 |
|
|
| 12 | M-670173720 | Rivet |
€1,88 |
|
