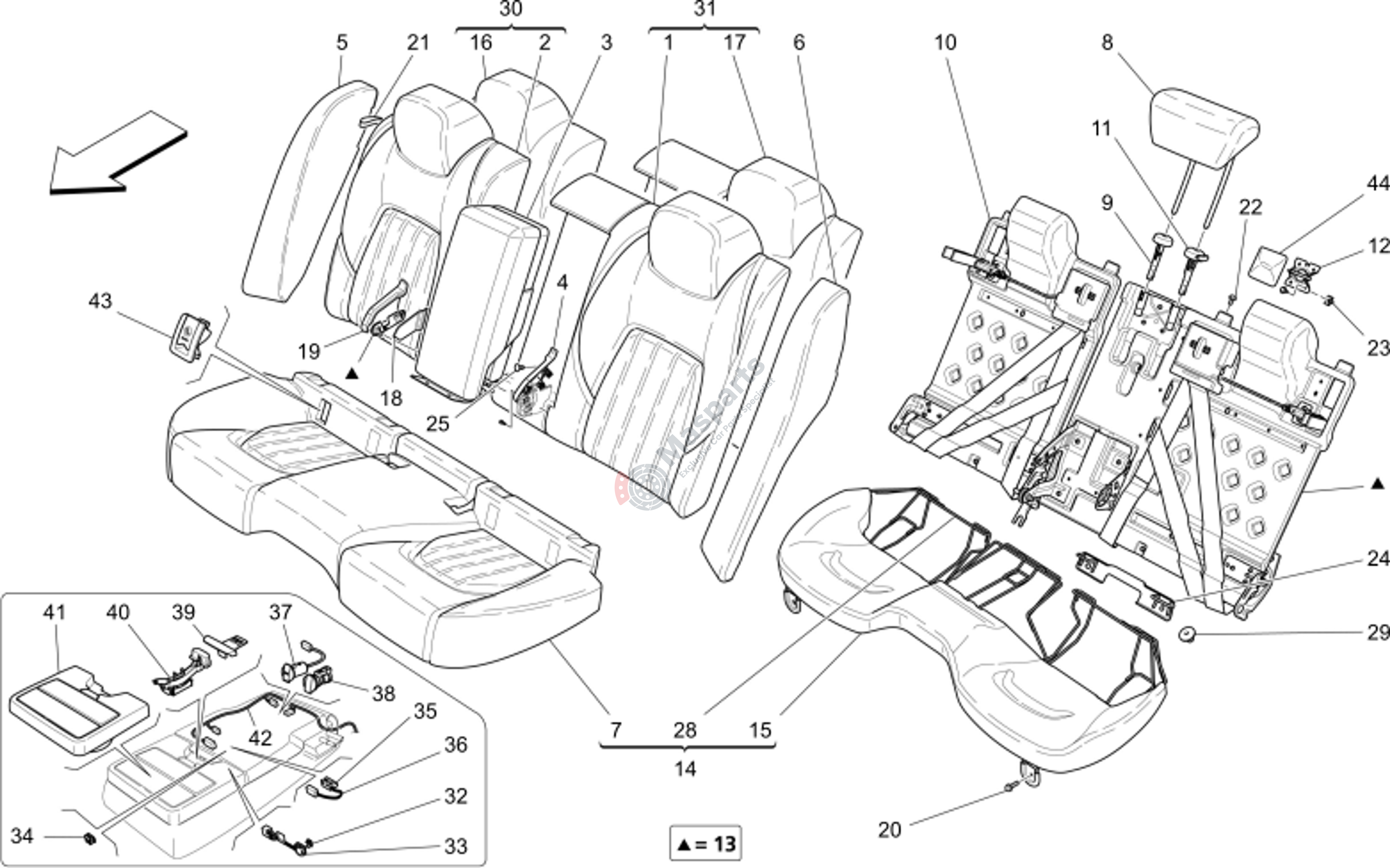

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 10 | M-670006153 | Rear Rh Seat Back Structure |
$377.50 |
|
|
| 12 | M-675000429 | Striker |
$11.05 |
|
|
| 15 | M-673003138 | Rear Padding |
$180.33 |
|
|
| 16 | M-670007410 | Rear Rh Backrest Padding |
$136.74 |
|
|
| 17 | M-670007411 | Rear Lh Backrest Padding |
$231.86 |
|
|
| 20 | M-675000396 | Screw |
$2.43 |
|
|
| 22 | M-675000403 | Rear Seats Cushion Fastening |
$2.54 |
|
|
| 23 | M-675000502 | Nut |
$1.74 |
|
|
| 25 | M-673000663 | Pin |
$4.60 |
|
|
| 32 | M-670006649 | Plate |
$6.22 |
|
|
| 33 | M-670005971 | Led |
$50.53 |
|
|
| 34 | M-670006707 | Clip For Connector |
$10.94 |
|
|
| 35 | M-670006699 | Switch |
$10.03 |
|
|
| 36 | M-670007043 | Switch |
$71.38 |
|
|
| 37 | M-670006716 | Plug |
$128.32 |
|
|
| 38 | M-670006645 | Plug 12 Volt |
$28.27 |
|
|
| 39 | M-673000719 | Latch Level Storage |
$49.88 |
|
|
| 40 | M-673000745 | Button Cupholder |
$86.64 |
|
|
| 42 | M-670005970 | Wiring |
$86.62 |
|
