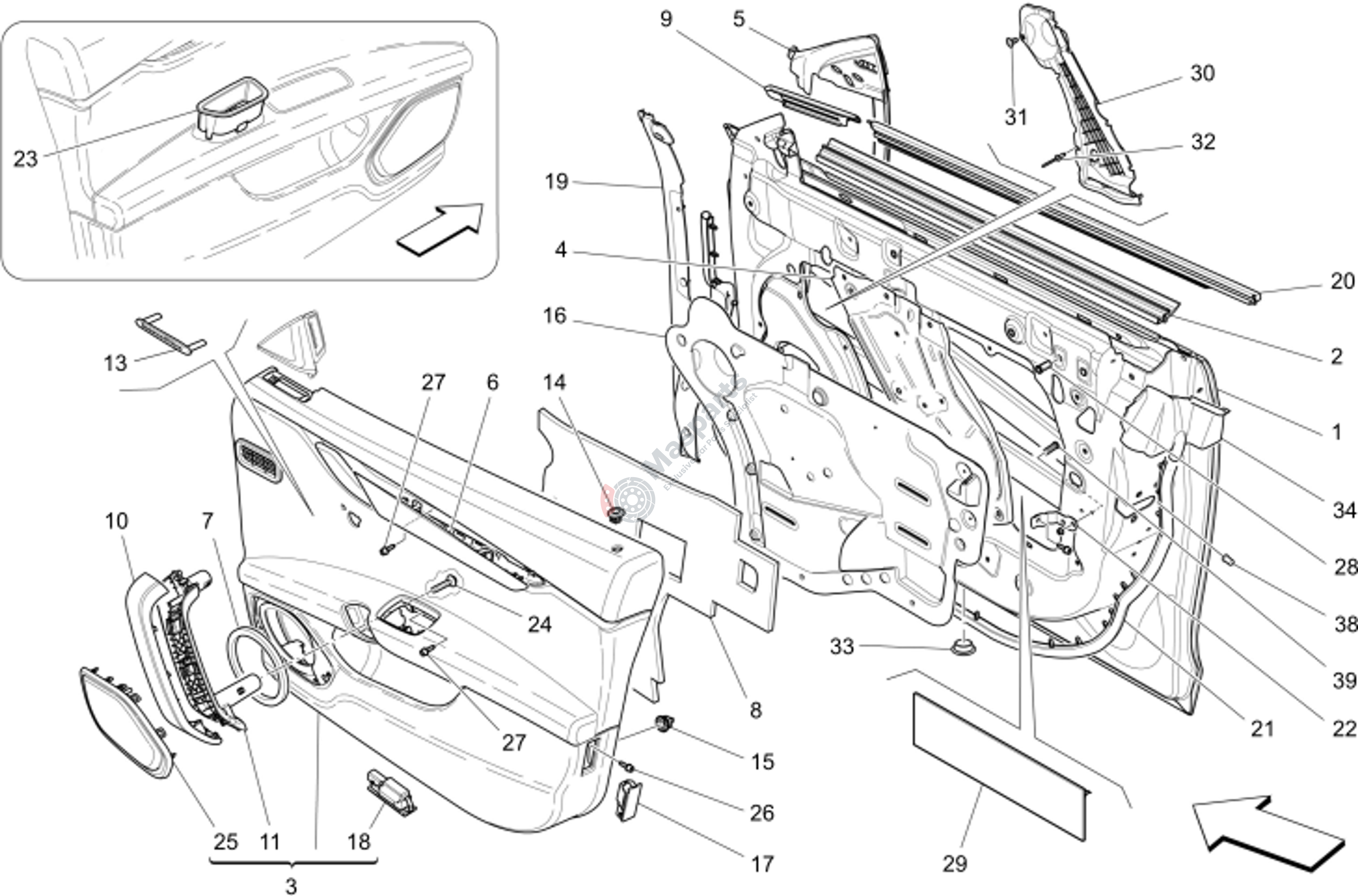

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007995 | Cpl Rh Front Door |
$1,709.03 |
|
|
| 2 | M-670030047 | R.H. Front Glass Scraper Gas |
$82.60 |
|
|
| 4 | M-670035256 | Rh Front Door Central Framew |
$40.15 |
|
|
| 5 | M-670101716 | Rh Door Mirror Gasket |
$159.12 |
|
|
| 7 | M-673001453 | Gasket |
$23.09 |
|
|
| 8 | M-673002007 | Rh Door Panel Soundproofing |
$71.61 |
|
|
| 13 | M-673001459 | Label Bower & Wilkins |
$38.72 |
|
|
| 14 | M-673001441 | Front Door Bushing |
$66.37 |
|
|
| 15 | M-670220013 | Door Panel Fastening Pin |
$2.94 |
|
|
| 16 | M-670153451 | Water Shield For Rh Front Do |
$54.54 |
|
|
| 17 | M-670007082 | Door Light |
$31.63 |
|
|
| 18 | M-675000265 | Door Lamp Black |
$11.53 |
|
|
| 19 | M-670004964 | Rh Fr.Door Vertical Anti-Rus |
$64.67 |
|
|
| 21 | M-670182198 | Rh Front Door Gasket |
$176.92 |
|
|
| 22 | M-670005885 | Bracket Fast. Front Rh Door |
$5.66 |
|
|
| 24 | M-673002001 | Screw For Carrier Pull Handl |
$13.21 |
|
|
| 26 | M-670153171 | Screw |
$2.09 |
|
|
| 27 | M-670153171 | Screw |
$2.09 |
|
|
| 28 | M-670005149 | Rivet |
$2.90 |
|
|
| 29 | M-670034380 | Doors Soundproofing Adhesive |
$3.56 |
|
|
| 30 | M-670039796 | Rh Front Door Speaker Lid |
$22.74 |
|
|
| 31 | M-670035453 | Fixing Button |
$2.90 |
|
|
| 32 | M-670007137 | Rivet |
$2.20 |
|
|
| 34 | M-670101775 | Rh Front Door Gasket Rear Si |
$77.26 |
|
|
| 38 | M-670036706 | Pin |
$3.66 |
|
|
| 39 | M-670155282 | Pin |
$2.90 |
|
