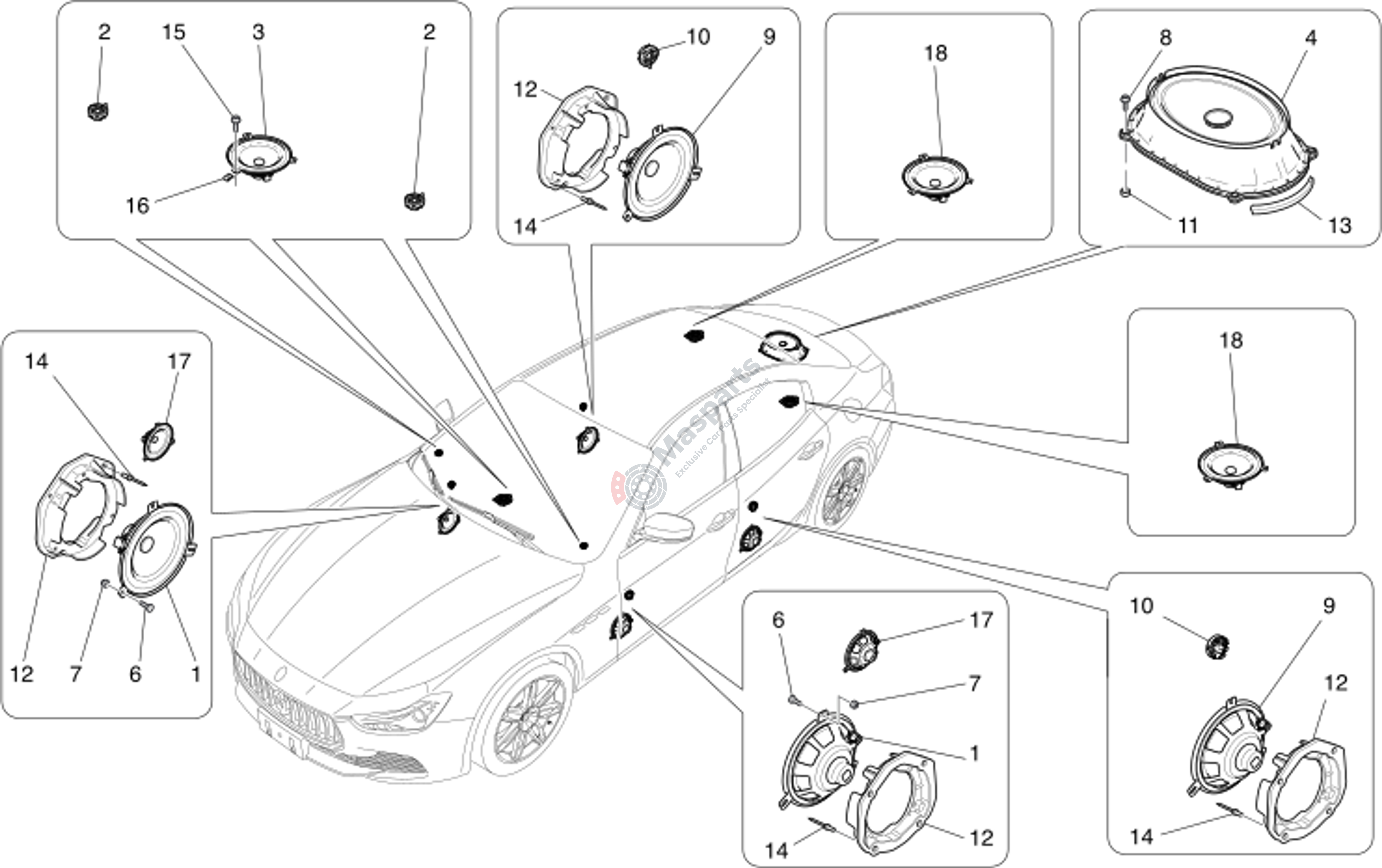

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670037288 | Midwoofer |
$222.71 |
|
|
| 4 | M-670005163 | Subwoofer |
$235.64 |
|
|
| 6 | M-673002003 | Screw For Speaker (M5X12) |
$13.42 |
|
|
| 7 | M-673002002 | Nut For Speaker (M5) |
$11.04 |
|
|
| 9 | M-670037288 | Midwoofer |
$222.71 |
|
|
| 11 | M-670009572 | Plug |
$1.73 |
|
|
| 14 | M-670007137 | Rivet |
$2.23 |
|
|
| 15 | M-670006374 | Screw |
$2.99 |
|
|
| 16 | M-670107273 | Clip |
$1.81 |
|
|
| 17 | M-670002145 | Midwoofer |
$208.79 |
|
|
| 18 | M-670002145 | Midwoofer |
$208.79 |
|
