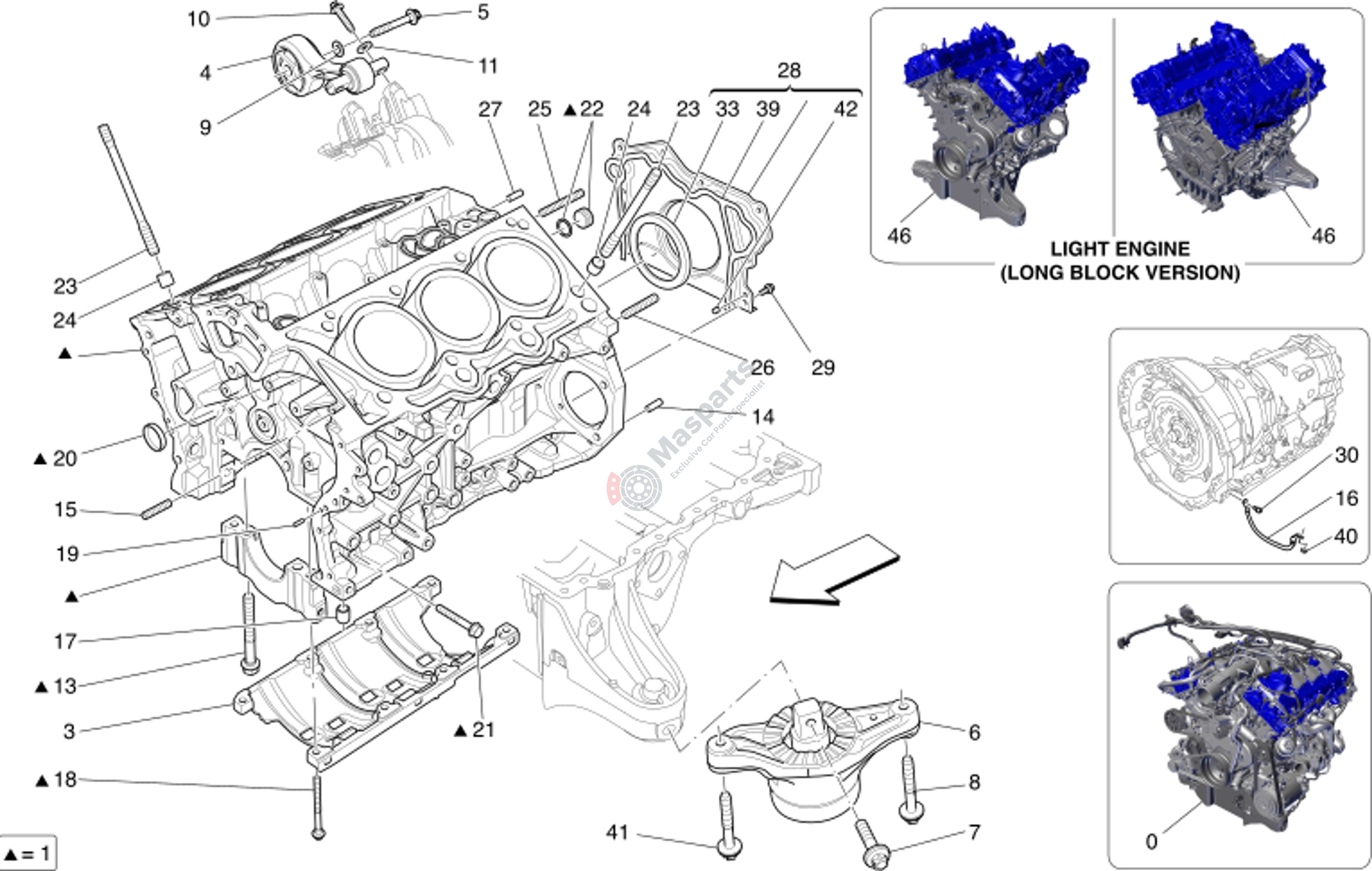

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 0 | M-670105622 | Cpl.Engine V6 430Hp Awd My19 |
$20,508.91 |
|
|
| 1 | M-295334 | Complete Crankcase |
$3,186.51 |
|
|
| 3 | M-275361 | Shield |
$76.23 |
|
|
| 4 | M-670003630 | High Connecting Rod |
$85.29 |
|
|
| 5 | M-675000146 | Screw |
$5.75 |
|
|
| 6 | M-670003628 | Rh Engine Bushing |
$325.40 |
|
|
| 7 | M-670038507 | Special Screw |
$5.69 |
|
|
| 8 | M-670103084 | Screw And Washer |
$3.04 |
|
|
| 9 | M-670103084 | Screw And Washer |
$3.04 |
|
|
| 10 | M-670035412 | Screw |
$4.96 |
|
|
| 11 | M-675000247 | Washer |
$1.64 |
|
|
| 14 | M-10337710 | Pin |
$9.37 |
|
|
| 16 | M-670007404 | Ground Cable For Engine-Fram |
$180.94 |
|
|
| 17 | M-300476 | Centering Dowel D.15X17 |
$4.61 |
|
|
| 19 | M-279025 | Centering Dowel |
$82.11 |
|
|
| 22 | M-313719 | Threaded Plug With Cu Washer |
$128.70 |
|
|
| 23 | M-306027 | Stud |
$25.01 |
|
|
| 24 | M-185360 | Centring Dowel D.16X15 |
$6.33 |
|
|
| 25 | M-303590 | Stud M10X15X26 Stem54 M10X12 |
$6.60 |
|
|
| 26 | M-303589 | Stud M10X15X26 Stem40 M10X12 |
$12.46 |
|
|
| 27 | M-10337710 | Pin |
$9.37 |
|
|
| 28 | M-335495 | Rear Plate (Assy) Post-Chang |
$337.96 |
|
|
| 29 | M-231617 | Socket Head Screw With Washe |
$2.42 |
|
|
| 30 | M-675000383 | Screw |
$1.21 |
|
|
| 33 | M-334627 | Crankshaft Rear Gasket |
$75.02 |
|
|
| 39 | M-326558 | Cranckshaft Rear Plate Seal |
$10.04 |
|
|
| 40 | M-675000505 | Nut |
$2.98 |
|
|
| 41 | M-670009954 | Special Screw (With Washer) |
$8.69 |
|
|
| 42 | M-102725 | Centring Dowel D.8X8 |
$1.71 |
|
