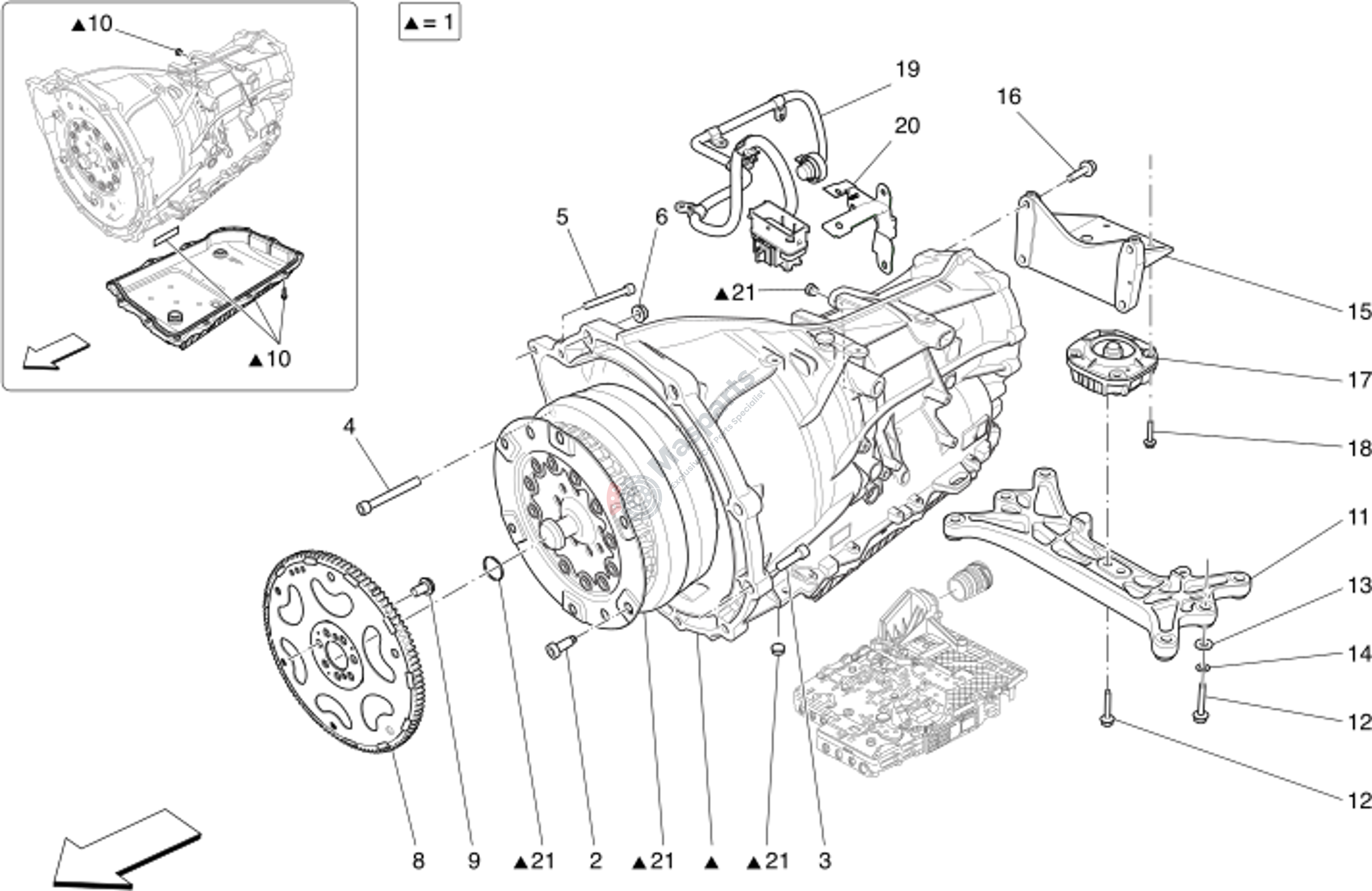

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154552 | Automatic Gearbox |
$7,098.79 |
|
|
| 2 | M-675001018 | Screw |
$1.39 |
|
|
| 3 | M-675001094 | Screw |
$1.82 |
|
|
| 4 | M-675000377 | Screw |
$2.02 |
|
|
| 5 | M-675001107 | Screw |
$2.14 |
|
|
| 6 | M-675000184 | Nut |
$1.81 |
|
|
| 8 | M-675000875 | Engine Flywheel |
$198.17 |
|
|
| 9 | M-675000996 | Screw |
$2.42 |
|
|
| 10 | M-673011113 | Oil Sump Kit |
$271.49 |
|
|
| 11 | M-670003953 | Gearbox Mounting Cross Membe |
$213.03 |
|
|
| 12 | M-675000145 | Screw |
$4.13 |
|
|
| 13 | M-675000247 | Washer |
$1.68 |
|
|
| 14 | M-675000254 | Washer |
$1.79 |
|
|
| 15 | M-670154973 | Bracket |
$125.84 |
|
|
| 16 | M-675001130 | Screw |
$1.96 |
|
|
| 17 | M-670154972 | Engine Mounting Bushing |
$102.51 |
|
|
| 18 | M-675000540 | Screw M8X40 |
$1.82 |
|
|
| 19 | M-670155452 | Automatic Gearbox Wiring |
$254.64 |
|
|
| 20 | M-670182565 | Bracket |
$12.44 |
|
|
| 21 | M-673011115 | Converter Kit + Shaft Gasket |
$2,492.97 |
|
