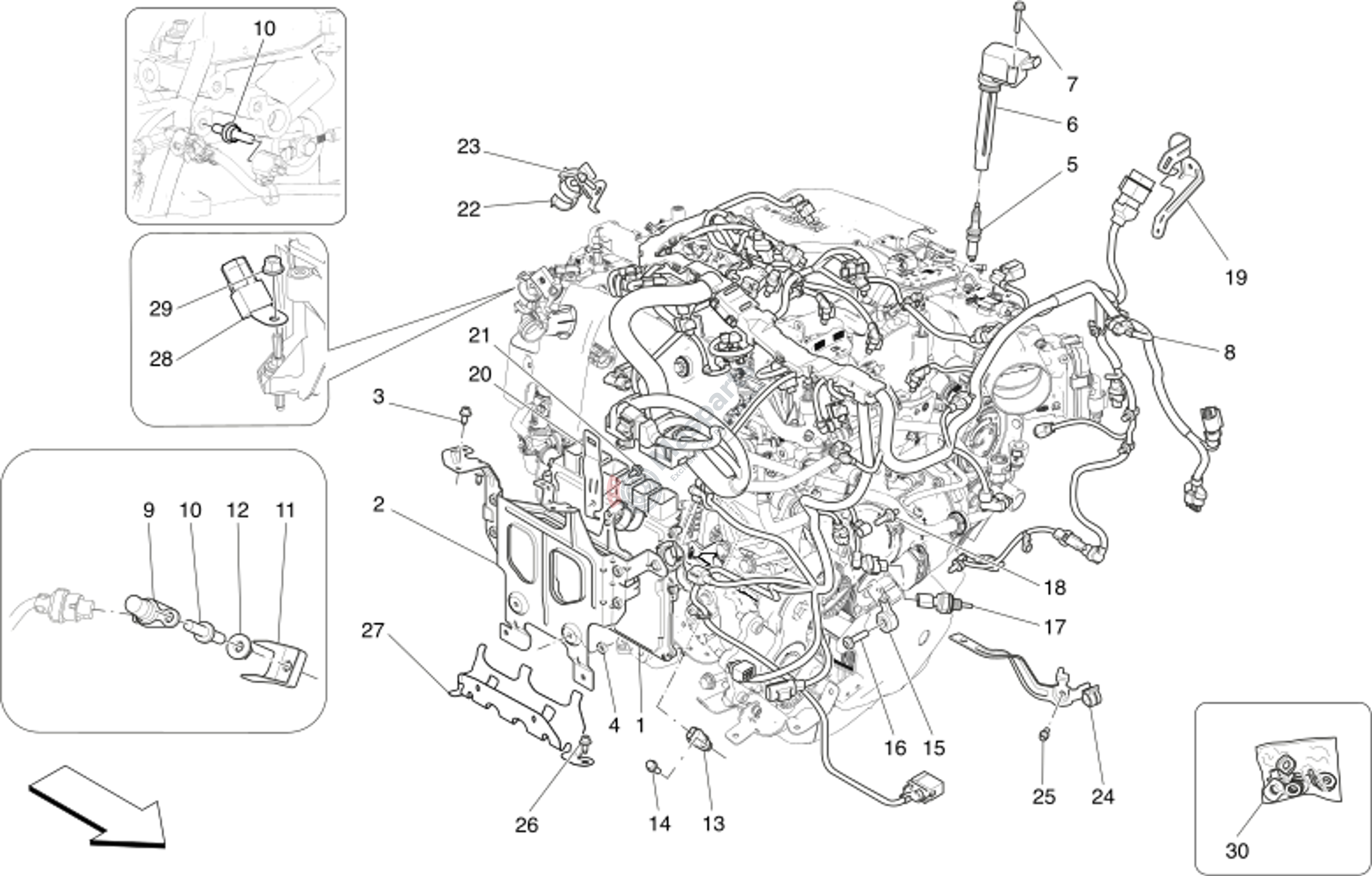

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670172631 | Ecm M157 |
$733.17 |
|
|
| 2 | M-670212783 | Bracket |
$39.32 |
|
|
| 3 | M-675000088 | Screw |
$2.59 |
|
|
| 4 | M-675000969 | Nut |
$0.97 |
|
|
| 5 | M-675000934 | Spark Plug |
$22.24 |
|
|
| 6 | M-670053141 | Coil |
$93.79 |
|
|
| 7 | M-675000972 | Screw |
$4.80 |
|
|
| 8 | M-670053615 | Engine Wiring Harness |
$384.96 |
|
|
| 9 | M-675002367 | Camshaft Position Sensor |
$45.65 |
|
|
| 10 | M-675000898 | Threaded Rod |
$4.79 |
|
|
| 11 | M-675000899 | Sensor Cover |
$5.68 |
|
|
| 12 | M-675000896 | Nut Nut&Washer Hex Cone Wash |
$2.78 |
|
|
| 14 | M-675000919 | Screw |
$2.02 |
|
|
| 16 | M-675000917 | Screw |
$2.02 |
|
|
| 18 | M-675000915 | Threaded Rod |
$4.66 |
|
|
| 19 | M-670157510 | Wiring Bracket For Mounting |
$31.27 |
|
|
| 20 | M-670157511 | Wiring Bracket For Mounting |
$27.66 |
|
|
| 22 | M-670154506 | Bracket |
$10.61 |
|
|
| 23 | M-675000172 | Screw |
$0.99 |
|
|
| 24 | M-675001151 | Bracket |
$9.49 |
|
|
| 25 | M-675000172 | Screw |
$0.99 |
|
|
| 26 | M-675000974 | Screw |
$2.23 |
|
|
| 27 | M-670213970 | Bracket |
$21.11 |
|
|
| 28 | M-675000956 | Condenser |
$4.50 |
|
|
| 29 | M-675000957 | Nut |
$1.46 |
|
