Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

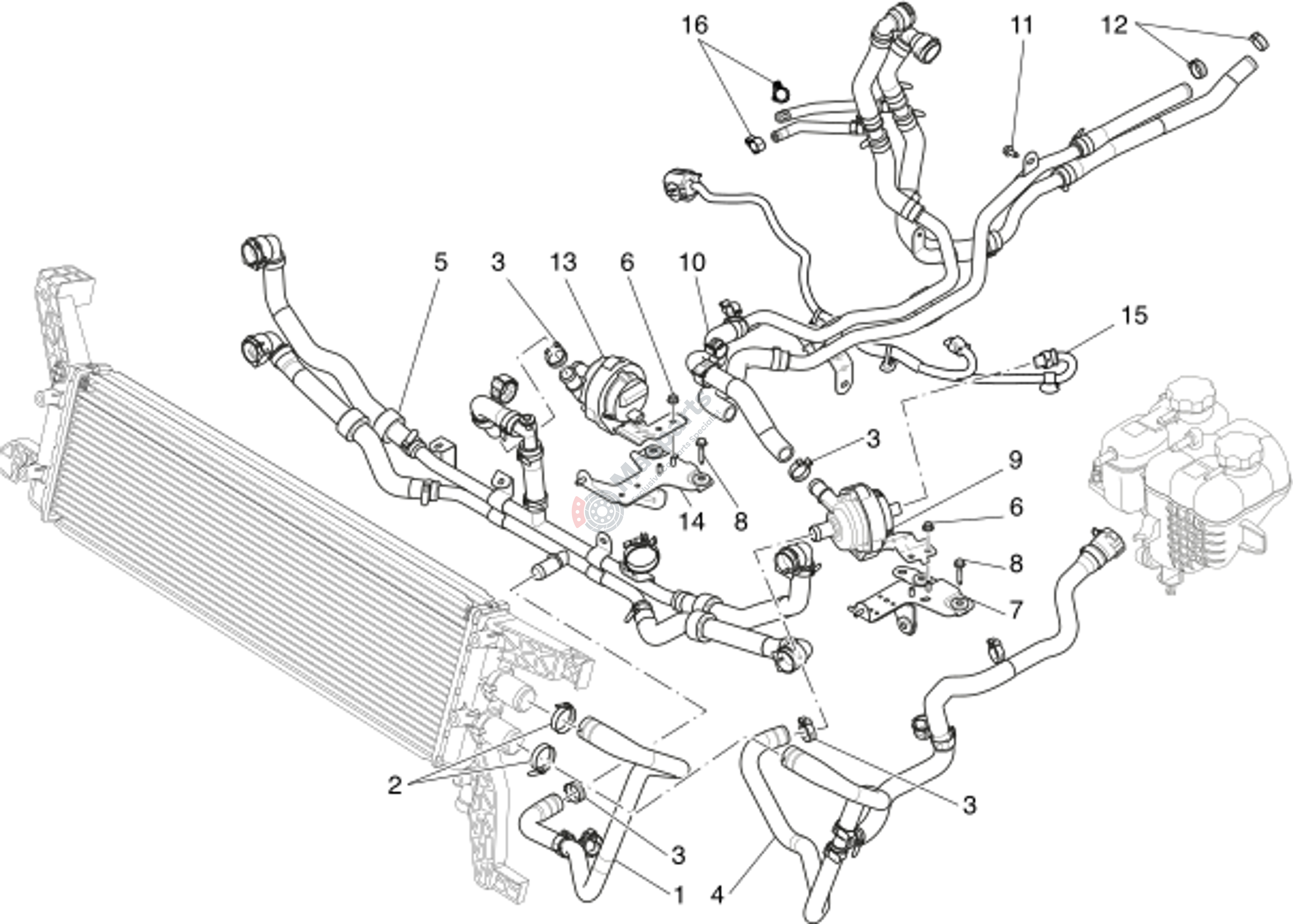

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154646 | Secondary Radiator Pipe |
€49,47 |
|
|
| 2 | M-11417670 | Nemo Bes Fastening Collar D3 |
€8,28 |
|
|
| 3 | M-675000658 | Snap Collar |
€4,69 |
|
|
| 4 | M-670173212 | Pipe Between Radiator And Pu |
€68,51 |
|
|
| 5 | M-670177868 | Manifold |
€141,10 |
|
|
| 6 | M-675000794 | Flanged Nut |
€1,29 |
|
|
| 7 | M-670154659 | Bracket |
€24,38 |
|
|
| 8 | M-675000468 | Screw |
€1,94 |
|
|
| 9 | M-670154651 | Electric Water Pump |
€260,95 |
|
|
| 10 | M-670154648 | Hose Main Electric Pump Outl |
€229,50 |
|
|
| 11 | M-675001117 | Screw |
€0,93 |
|
|
| 12 | M-675000372 | Strap Collar |
€1,48 |
|
|
| 13 | M-670154656 | Secondary Electric Water Pum |
€282,20 |
|
|
| 14 | M-670154660 | Bracket |
€24,38 |
|
|
| 15 | M-670155291 | Water Pump Bridle |
€34,66 |
|
|
| 16 | M-675000369 | Strap Collar |
€1,44 |
|
