Diagram image not available

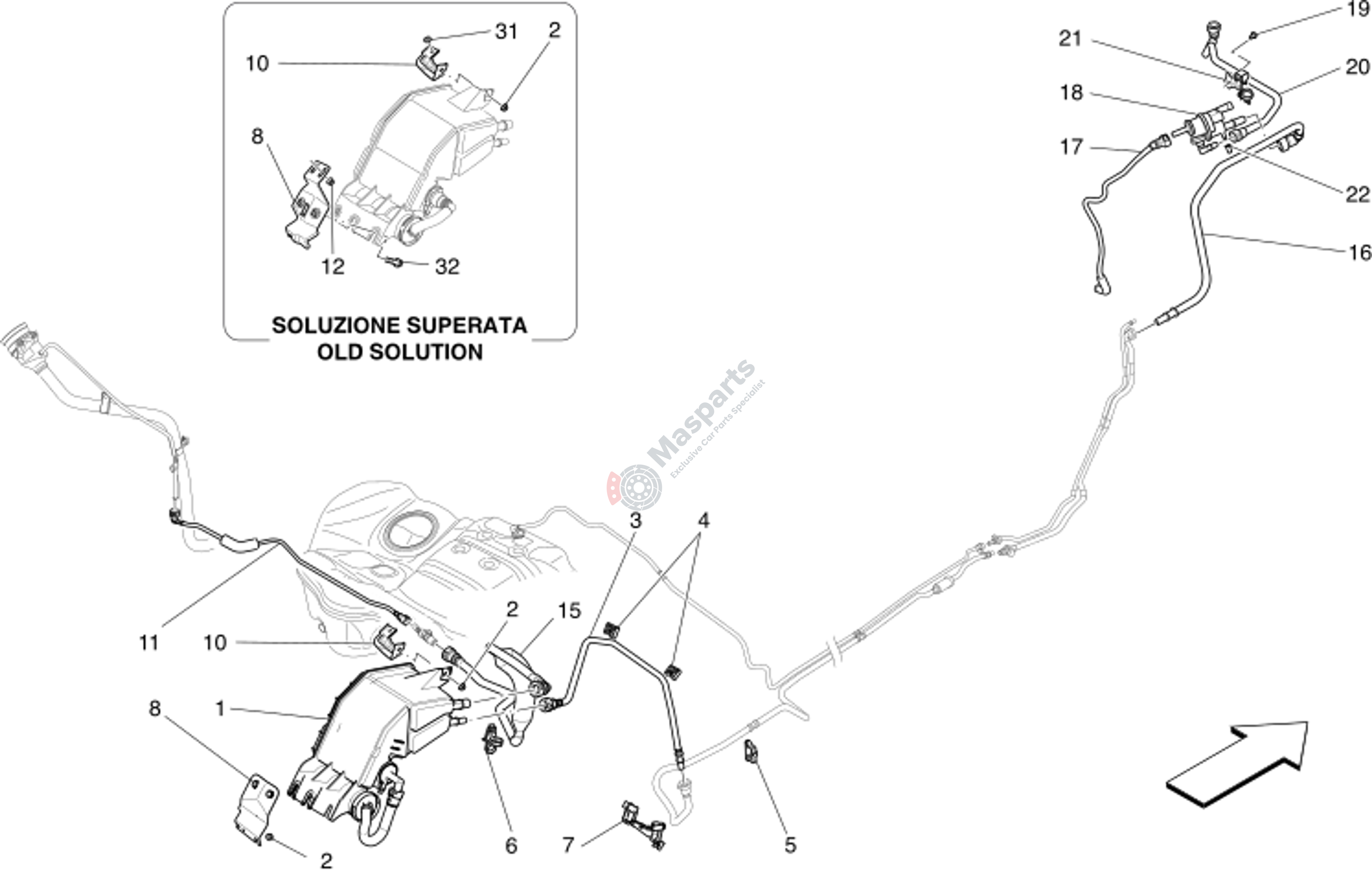

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102642 | Fuel Vapour Filter |
$181.52 |
|
|
| 2 | M-675000095 | Nut |
$0.78 |
|
|
| 3 | M-670105545 | Fuel Vapour Pipe |
$28.32 |
|
|
| 4 | M-670033289 | Pipe Clip |
$3.10 |
|
|
| 5 | M-675000790 | Clip |
$1.27 |
|
|
| 6 | M-670154600 | Bracket |
$3.11 |
|
|
| 7 | M-670106064 | Clip |
$3.22 |
|
|
| 8 | M-670101522 | Rear Bracket |
$15.90 |
|
|
| 10 | M-670036933 | Canister Bracket |
$25.29 |
|
|
| 11 | M-670005215 | Flex.Hose |
$28.61 |
|
|
| 12 | M-675000114 | Nut |
$1.27 |
|
|
| 15 | M-670154613 | Vent Pipe |
$92.70 |
|
|
| 16 | M-670155397 | Tube Fuel Vapor |
$34.14 |
|
|
| 17 | M-675000981 | Flexible Pipe |
$192.99 |
|
|
| 18 | M-675000977 | Spurge Valve |
$195.93 |
|
|
| 19 | M-675000172 | Screw |
$1.02 |
|
|
| 20 | M-670154516 | Pipe |
$42.47 |
|
|
| 21 | M-670154518 | Bracket |
$10.27 |
|
|
| 22 | M-675000982 | Plug |
$13.96 |
|
|
| 31 | M-670100665 | Washer |
$1.22 |
|
|
| 32 | M-675000436 | Screw |
$2.45 |
|
