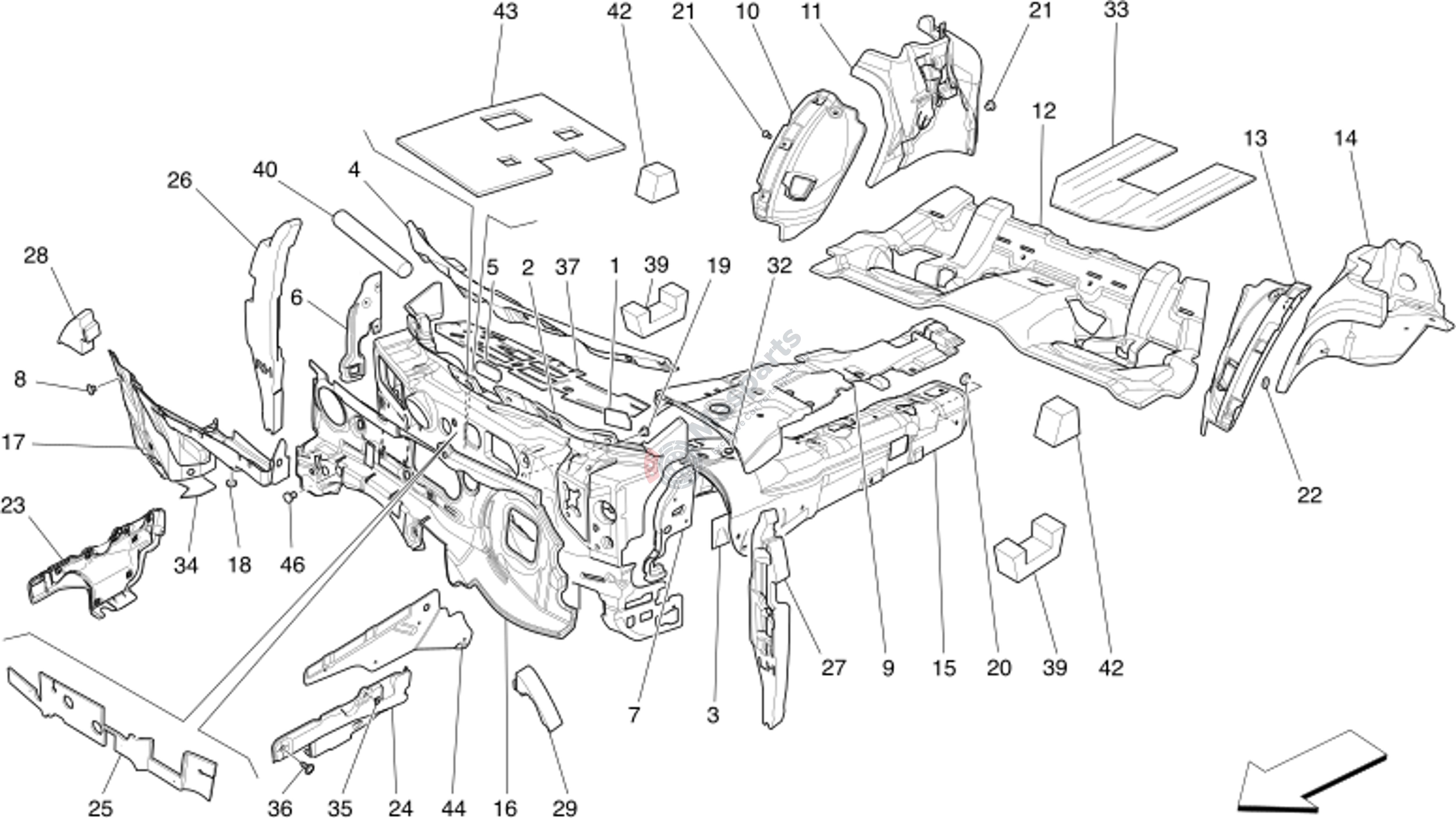

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000151 | Seal Plug |
$1.69 |
|
|
| 2 | M-670105244 | Insulation |
$220.11 |
|
|
| 3 | M-670001856 | Soundproofing |
$3.61 |
|
|
| 5 | M-675000417 | Oval Protection Sheet 48X140 |
$7.04 |
|
|
| 10 | M-670037434 | Front Part Of Rear Rh Wheelh |
$19.72 |
|
|
| 11 | M-670038084 | Rear Part Of Rear Rh Wheelho |
$22.11 |
|
|
| 12 | M-670108268 | Insulation |
$47.78 |
|
|
| 13 | M-670037435 | Front Part Of Rear Lh Wheelh |
$19.72 |
|
|
| 14 | M-670038083 | Rear Part Of Rear Lh Wheelho |
$22.11 |
|
|
| 15 | M-670155008 | Ext. Tunnel Soundproofing Gu |
$55.19 |
|
|
| 16 | M-670004556 | Engine Compartment Insulatio |
$81.10 |
|
|
| 17 | M-670104213 | Upper Rh Engine Compart. Ins |
$48.22 |
|
|
| 18 | M-675000453 | Plate |
$1.63 |
|
|
| 20 | M-675000411 | Washer |
$3.64 |
|
|
| 22 | M-675000424 | Plug |
$8.61 |
|
|
| 23 | M-670038489 | Front Rh Wheelhouse Guard |
$40.90 |
|
|
| 24 | M-670038488 | Front Lh Wheelhouse Guard |
$40.90 |
|
|
| 26 | M-670009236 | Front Rh Soundproofing |
$35.36 |
|
|
| 27 | M-670009237 | Front Lh Soundproofing |
$35.36 |
|
|
| 28 | M-670009241 | Front Rh Bumper Jounce |
$16.03 |
|
|
| 29 | M-670009242 | Front Lh Bumper Jounce |
$16.15 |
|
|
| 32 | M-675000679 | Sealing Plug 22Mm |
$10.41 |
|
|
| 33 | M-670030941 | Soundproofing Panel |
$8.92 |
|
|
| 35 | M-670003320 | Fastening Button |
$1.69 |
|
|
| 36 | M-670009112 | Fastening Pin |
$3.61 |
|
|
| 39 | M-670037611 | Insulation Pad |
$8.71 |
|
|
| 40 | M-670037612 | Dashboard Insulation Pad |
$9.39 |
|
|
| 42 | M-670037614 | Upper Insulation Pad |
$7.50 |
|
|
| 43 | M-670172653 | Floor Insulation Pad |
$11.68 |
|
|
| 44 | M-670030624 | Insulation |
$10.09 |
|
