Diagram image not available

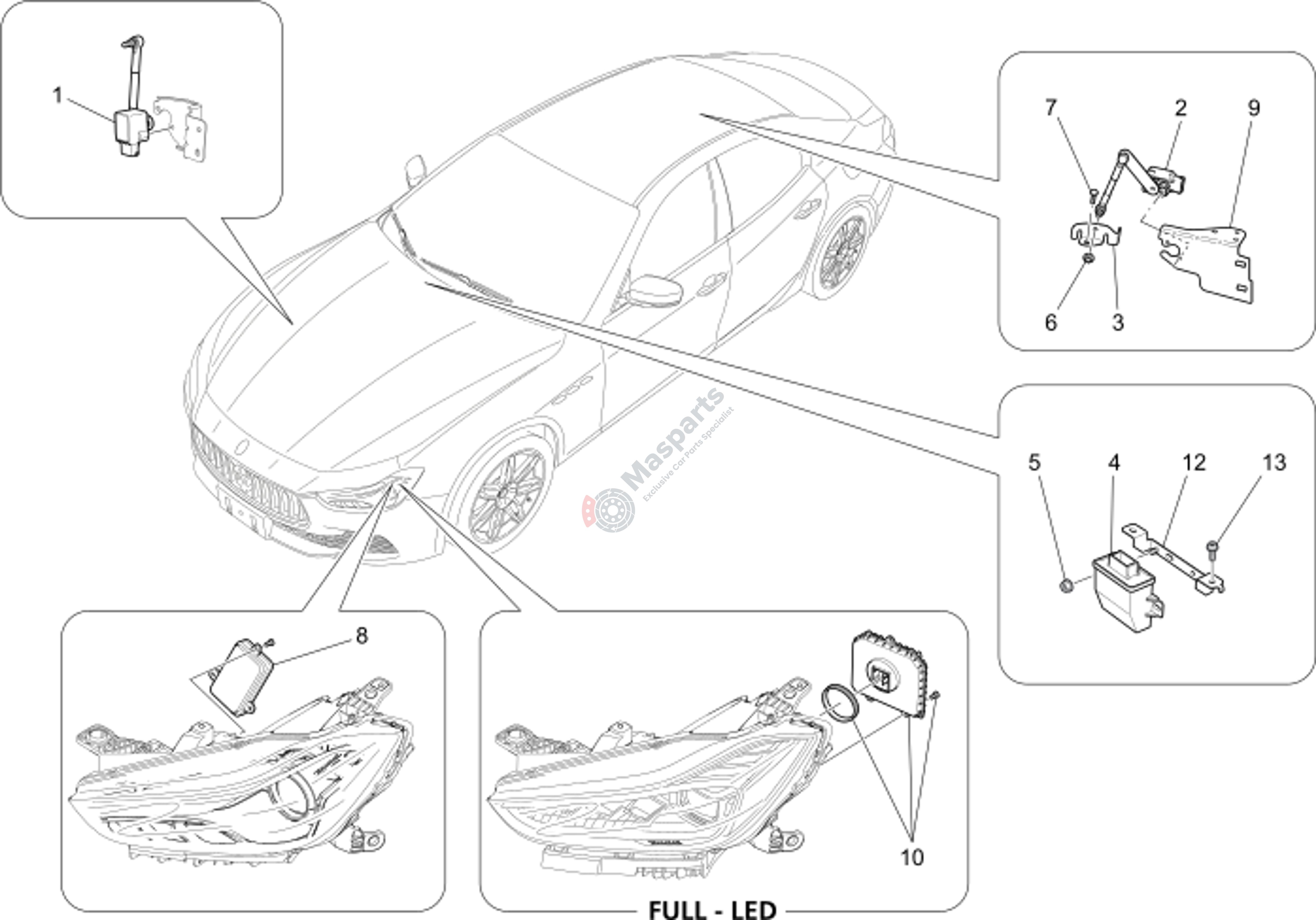

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670003042 | Light Adjusting Potentiomete |
$129.70 |
|
|
| 2 | M-670003051 | Rear Light Adjusting Potenti |
$107.27 |
|
|
| 3 | M-670037047 | Rh Headlight Bracket |
$24.88 |
|
|
| 4 | M-670153635 | Headlight Ecu |
$212.81 |
|
|
| 5 | M-675000449 | Nut |
$1.21 |
|
|
| 6 | M-675000095 | Nut |
$0.77 |
|
|
| 7 | M-675000437 | Screw |
$1.38 |
|
|
| 8 | M-673002959 | Headlight Ecu |
$195.08 |
|
|
| 9 | M-670036542 | Rh Headlight Bracket |
$7.27 |
|
|
| 10 | M-673009212 | Ecu Full Led Headlamps M157 |
$242.02 |
|
|
| 12 | M-670035986 | Sensor Headlight Bracket |
$5.64 |
|
|
| 13 | M-675000171 | Screw |
$1.36 |
|
