Diagram image not available

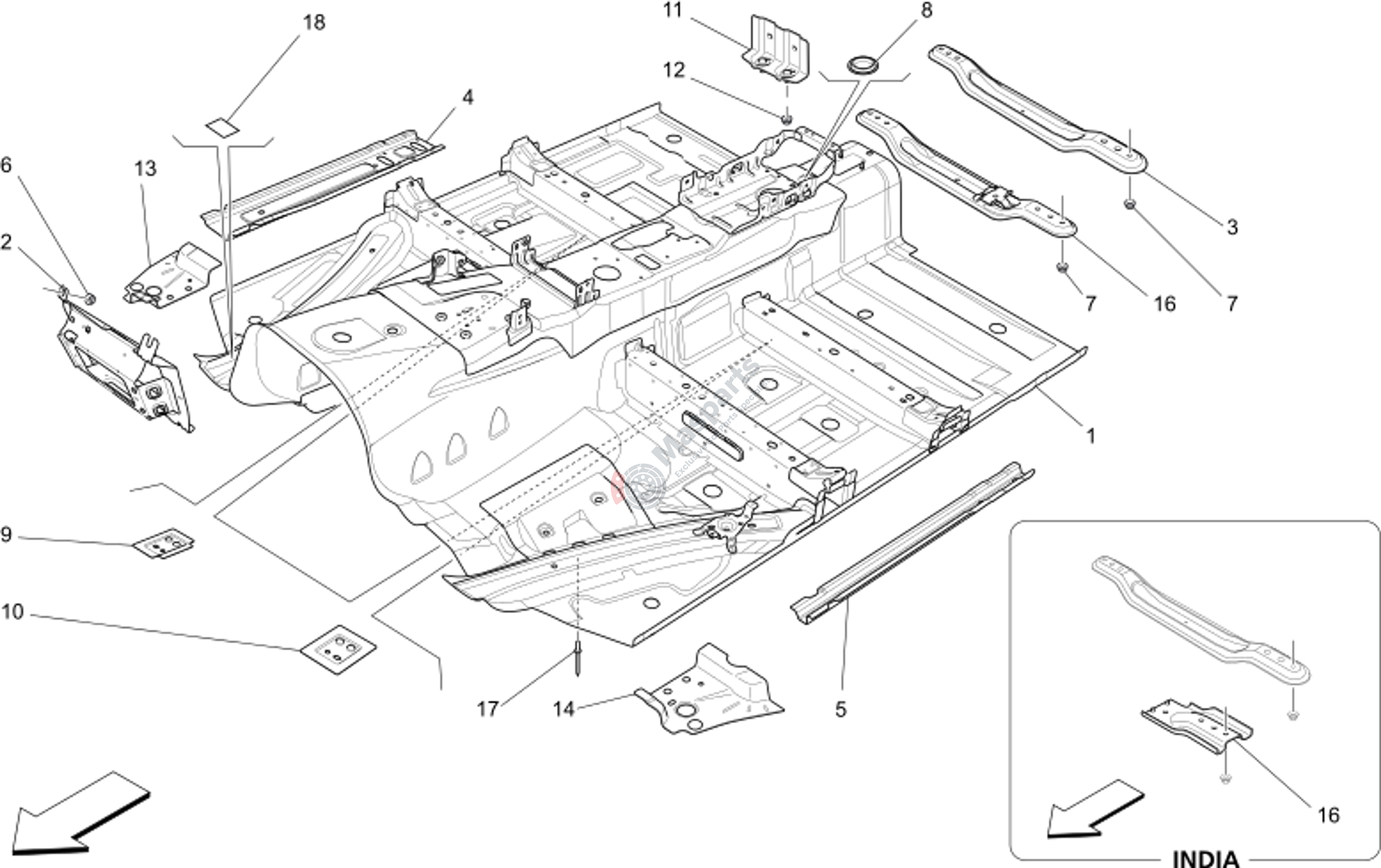

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009739 | Front Floor M157 |
$3,158.77 |
|
|
| 2 | M-670039535 | Body Computer Support Bracke |
$52.98 |
|
|
| 3 | M-670006640 | Underfloor Tunnel Rear Reinf |
$88.67 |
|
|
| 4 | M-673001720 | Rh Underfloor Small Side Mem |
$58.69 |
|
|
| 5 | M-673001721 | Lh Underfloor Small Side Mem |
$46.68 |
|
|
| 6 | M-675000412 | Hex Nut |
$1.22 |
|
|
| 8 | M-670006214 | Sticker Cap |
$2.45 |
|
|
| 9 | M-670003751 | Rh Plate |
$50.49 |
|
|
| 10 | M-670003900 | Lh Plate |
$50.80 |
|
|
| 11 | M-673004077 | Underfloor Bracket Rear Tunn |
$189.86 |
|
|
| 13 | M-670031919 | Reinforcement Dx |
$14.30 |
|
|
| 14 | M-670031920 | Reinforcement Dx |
$14.30 |
|
|
| 16 | M-670031638 | Underfloor Tunnel Front Rein |
$58.25 |
|
|
| 17 | M-670037283 | Rivet |
$4.94 |
|
|
| 18 | M-675000789 | Protective Film |
$2.82 |
|
