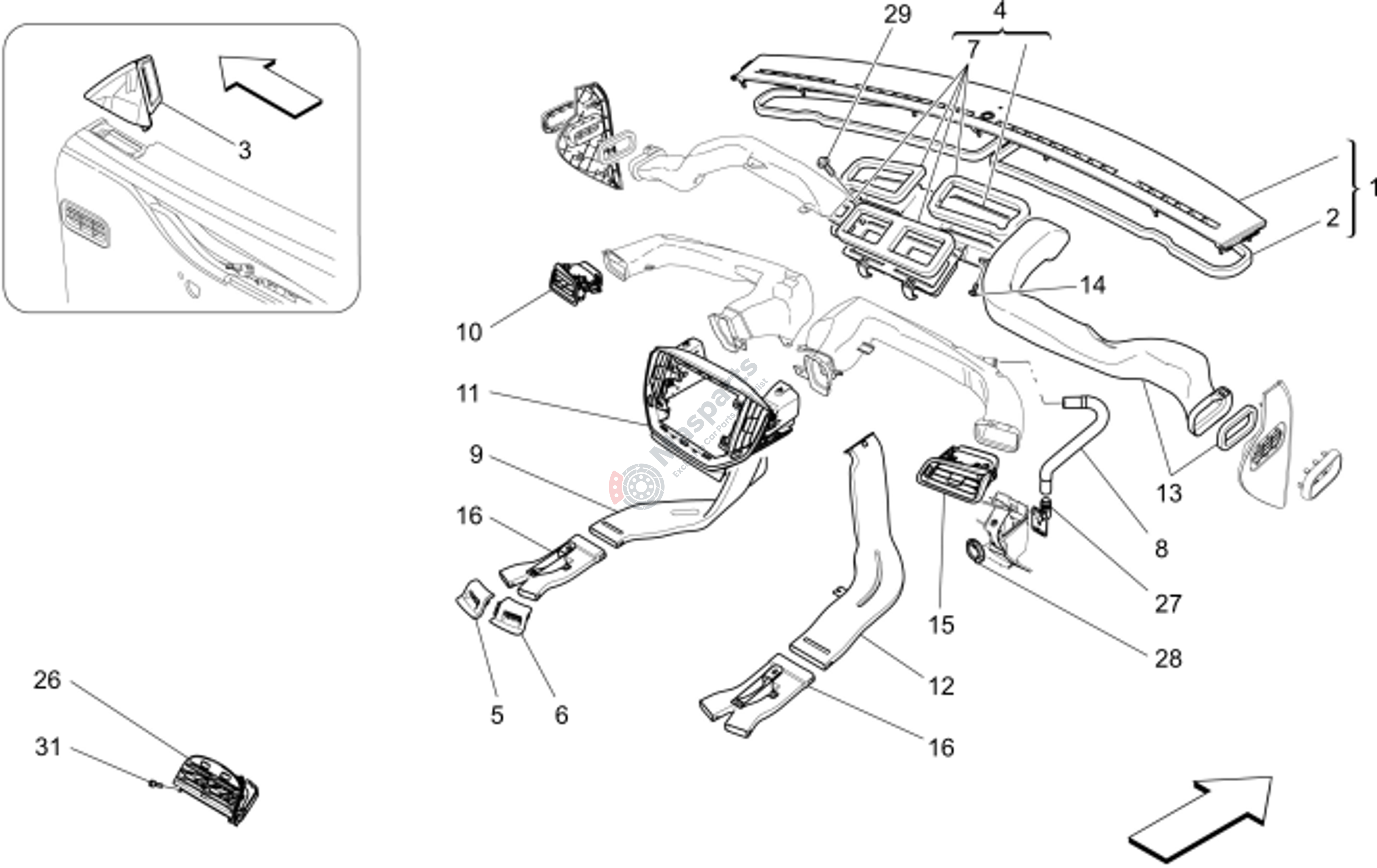

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 4 | M-670007558 | Cpl Defroster-Hvac Channel U |
$91.31 |
|
|
| 7 | M-670007560 | Hvac Defroster Junction Seal |
$48.13 |
|
|
| 8 | M-670031754 | Air Ducting |
$25.87 |
|
|
| 9 | M-670001501 | Rear Lh Air Ducting |
$25.33 |
|
|
| 12 | M-670001500 | Rear Rh Air Ducting |
$25.33 |
|
|
| 13 | M-670004688 | Side Air Duct |
$43.79 |
|
|
| 14 | M-670006484 | Screw |
$1.66 |
|
|
| 16 | M-670004970 | Air Duction Connection |
$31.45 |
|
|
| 27 | M-673001304 | Air Ducting Union |
$5.74 |
|
|
| 28 | M-673001306 | Air Exit Seal |
$4.39 |
|
|
| 29 | M-675000464 | Screw |
$1.04 |
|
|
| 31 | M-670006374 | Screw |
$2.86 |
|
