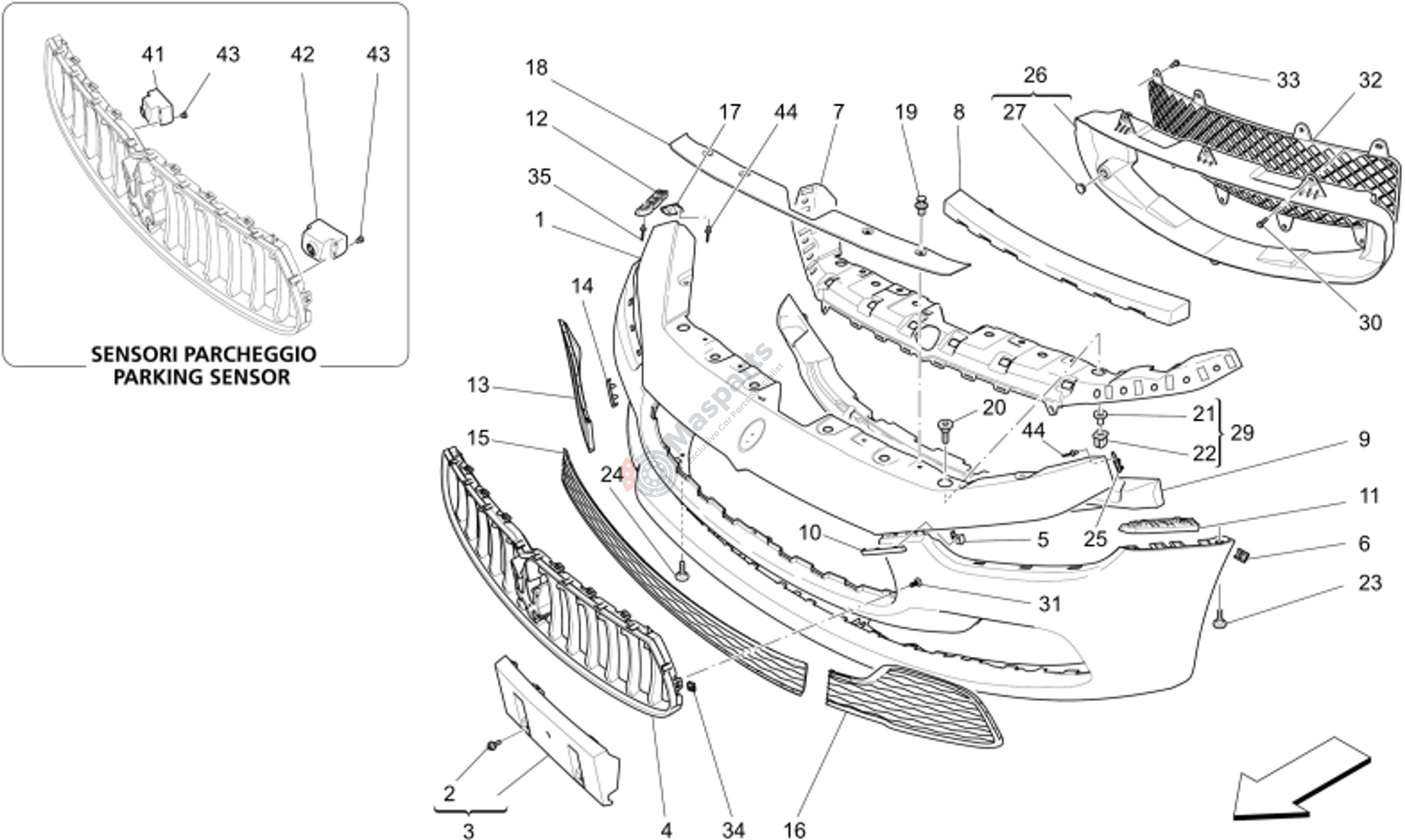

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000228 | Screw |
€1,94 |
|
|
| 5 | M-675000337 | Retaining Clip |
€3,42 |
|
|
| 6 | M-675000192 | Bracket |
€1,05 |
|
|
| 7 | M-670004437 | Upper Bumper Reinforcement |
€254,15 |
|
|
| 8 | M-670036190 | Upper Central Absorber |
€6,81 |
|
|
| 9 | M-670036192 | Lower Central Absorber |
€73,02 |
|
|
| 10 | M-670011292 | L.H. Plate |
€52,99 |
|
|
| 11 | M-670004830 | Lh. Front Bumper Bracket |
€22,60 |
|
|
| 12 | M-670004829 | Rh. Front Bumper Bracket |
€24,38 |
|
|
| 13 | M-670010765 | R.H. Modguard Protection Low |
€61,46 |
|
|
| 14 | M-670011291 | R.H. Plate |
€52,99 |
|
|
| 15 | M-670010773 | Central Grill |
€276,92 |
|
|
| 16 | M-670010766 | L.H. Modguard Protection Low |
€321,94 |
|
|
| 17 | M-670004442 | R.H. Lateral Bracket |
€22,60 |
|
|
| 19 | M-670014562 | Fixing Button. |
€2,50 |
|
|
| 20 | M-670003766 | Screw |
€4,28 |
|
|
| 23 | M-675000057 | Screw |
€1,99 |
|
|
| 24 | M-670034505 | Special Screw |
€2,09 |
|
|
| 25 | M-670004458 | L.H. Lateral Bracket |
€24,38 |
|
|
| 27 | M-670009832 | Towing Hook Cap |
€16,47 |
|
|
| 29 | M-670005535 | Block |
€6,26 |
|
|
| 30 | M-675000077 | Screw |
€1,99 |
|
|
| 31 | M-675000332 | Screw |
€6,07 |
|
|
| 32 | M-670006937 | Grill Conveyor |
€69,92 |
|
|
| 33 | M-675000104 | Screw |
€1,32 |
|
|
| 34 | M-673002939 | Clip |
€6,16 |
|
|
| 35 | M-675000323 | Rivet |
€1,58 |
|
|
| 41 | M-673002937 | Front Rh Parking Sensor Supp |
€31,83 |
|
|
| 42 | M-673002938 | Front Lh Parking Sensor Supp |
€31,83 |
|
|
| 43 | M-673006994 | Sensor Fastening Screw |
€2,23 |
|
|
| 44 | M-675000531 | Rivet |
€1,46 |
|
