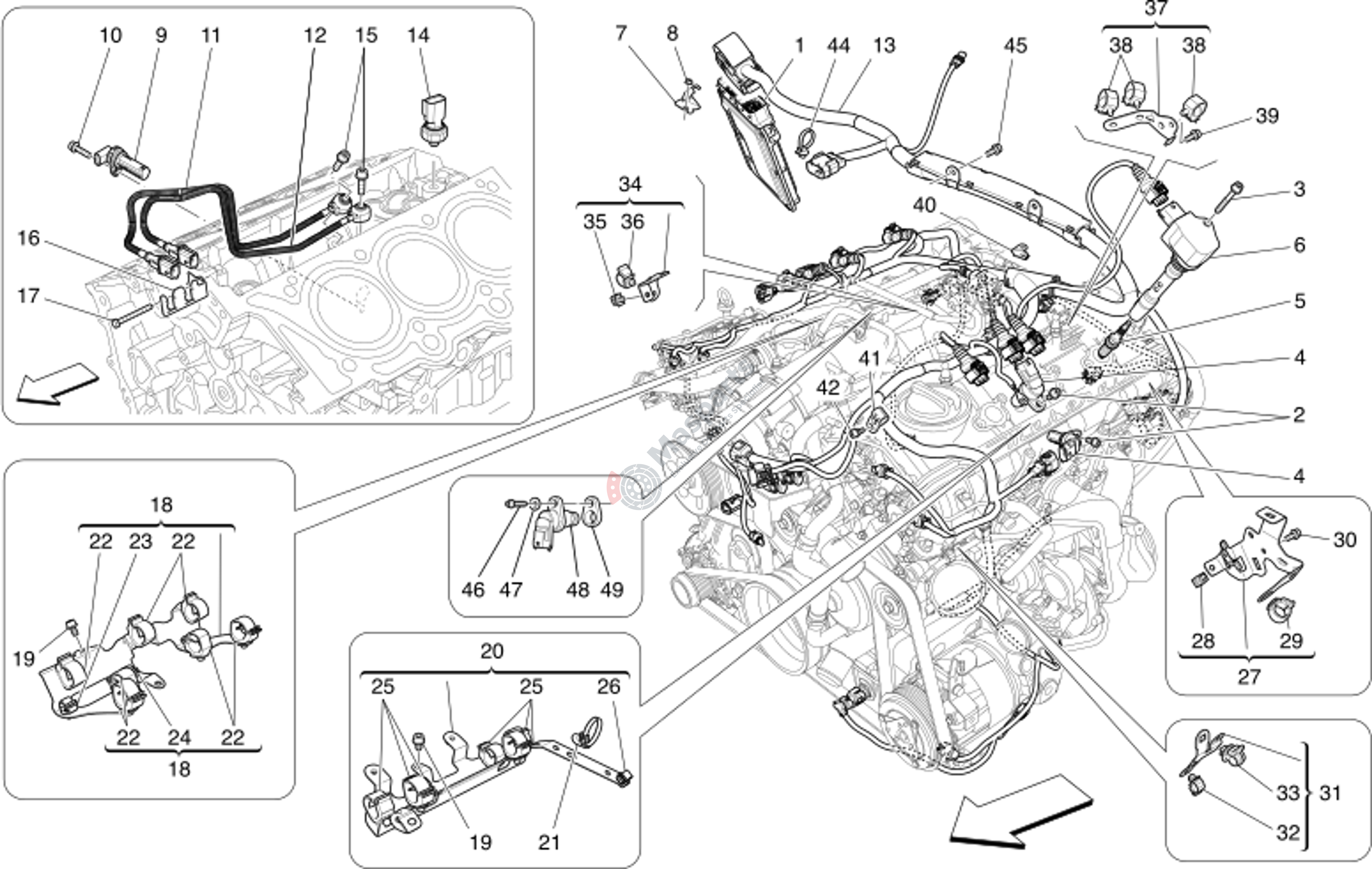

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031346 | Euro6 Engine Ecu Hardware Bu |
$1,328.23 |
|
|
| 2 | M-231616 | Screw |
$2.06 |
|
|
| 3 | M-231624 | Socket Head Screw With Washe |
$2.79 |
|
|
| 4 | M-224573 | Timing Sensor |
$50.67 |
|
|
| 5 | M-310235 | Spark Plug |
$22.52 |
|
|
| 6 | M-288233 | Ignition Coil |
$111.50 |
|
|
| 7 | M-670009042 | Control Unit Fixing Bracket |
$9.31 |
|
|
| 9 | M-961644 | Angolar Speed Sensor |
$63.68 |
|
|
| 10 | M-231620 | Socket Head Screw With Washe |
$1.61 |
|
|
| 11 | M-772995 | Cpl Rh Detonation Sensor 1-2 |
$106.61 |
|
|
| 12 | M-792379 | Cpl Lh Detonation Sensor 4-5 |
$115.41 |
|
|
| 13 | M-324912 | Engine Injection Wiring Harn |
$1,450.49 |
|
|
| 14 | M-328660 | Oil Pressure Sensor |
$67.87 |
|
|
| 15 | M-231629 | Socket Head Screw With Washe |
$2.42 |
|
|
| 16 | M-290057 | Cover |
$42.17 |
|
|
| 17 | M-10903724 | Screw |
$2.90 |
|
|
| 18 | M-302135 | Rh Cylinder Head Hoses Cpl B |
$43.00 |
|
|
| 19 | M-231616 | Screw |
$2.06 |
|
|
| 20 | M-317131 | Lh Cyl.Head Hoses&Wirings Br |
$48.34 |
|
|
| 21 | M-10901087 | Clamp |
$3.65 |
|
|
| 22 | M-259508 | Clip |
$1.71 |
|
|
| 23 | M-292112 | Pipe Retaining Clip D.8 |
$1.69 |
|
|
| 24 | M-226603 | Pipe Retaining Clip D.8 |
$2.42 |
|
|
| 25 | M-226603 | Pipe Retaining Clip D.8 |
$2.42 |
|
|
| 26 | M-259508 | Clip |
$1.71 |
|
|
| 27 | M-323966 | Bracket |
$34.85 |
|
|
| 28 | M-283287 | Clip |
$1.69 |
|
|
| 29 | M-191273 | Spring |
$1.69 |
|
|
| 30 | M-231616 | Screw |
$2.06 |
|
|
| 31 | M-290960 | Lh Turbo Hose Cpl Bracket |
$10.14 |
|
|
| 32 | M-226603 | Pipe Retaining Clip D.8 |
$2.42 |
|
|
| 33 | M-288849 | Cables Retaining Clip |
$37.29 |
|
|
| 34 | M-673007937 | Bracket And Screw |
$19.46 |
|
|
| 35 | M-283287 | Clip |
$1.69 |
|
|
| 36 | M-247440 | Spring |
$1.77 |
|
|
| 37 | M-318883 | Lh Cyl. Head Hoses&Wirings B |
$19.06 |
|
|
| 38 | M-259508 | Clip |
$1.71 |
|
|
| 39 | M-231616 | Screw |
$2.06 |
|
|
| 41 | M-291068 | Bracket |
$2.56 |
|
|
| 42 | M-233600 | Screw |
$2.32 |
|
|
| 44 | M-670008301 | Clip |
$1.10 |
|
|
| 45 | M-675000556 | Screw |
$2.06 |
|
|
| 46 | M-14358524 | Screw |
$2.42 |
|
|
| 47 | M-13577724 | Split Washer D.5.15-15X1.2 |
$1.69 |
|
|
| 48 | M-871810 | Blow By Pressure Sensor |
$127.15 |
|
|
| 49 | M-956533 | Blow-By Pressure Sensor Bloc |
$33.08 |
|
