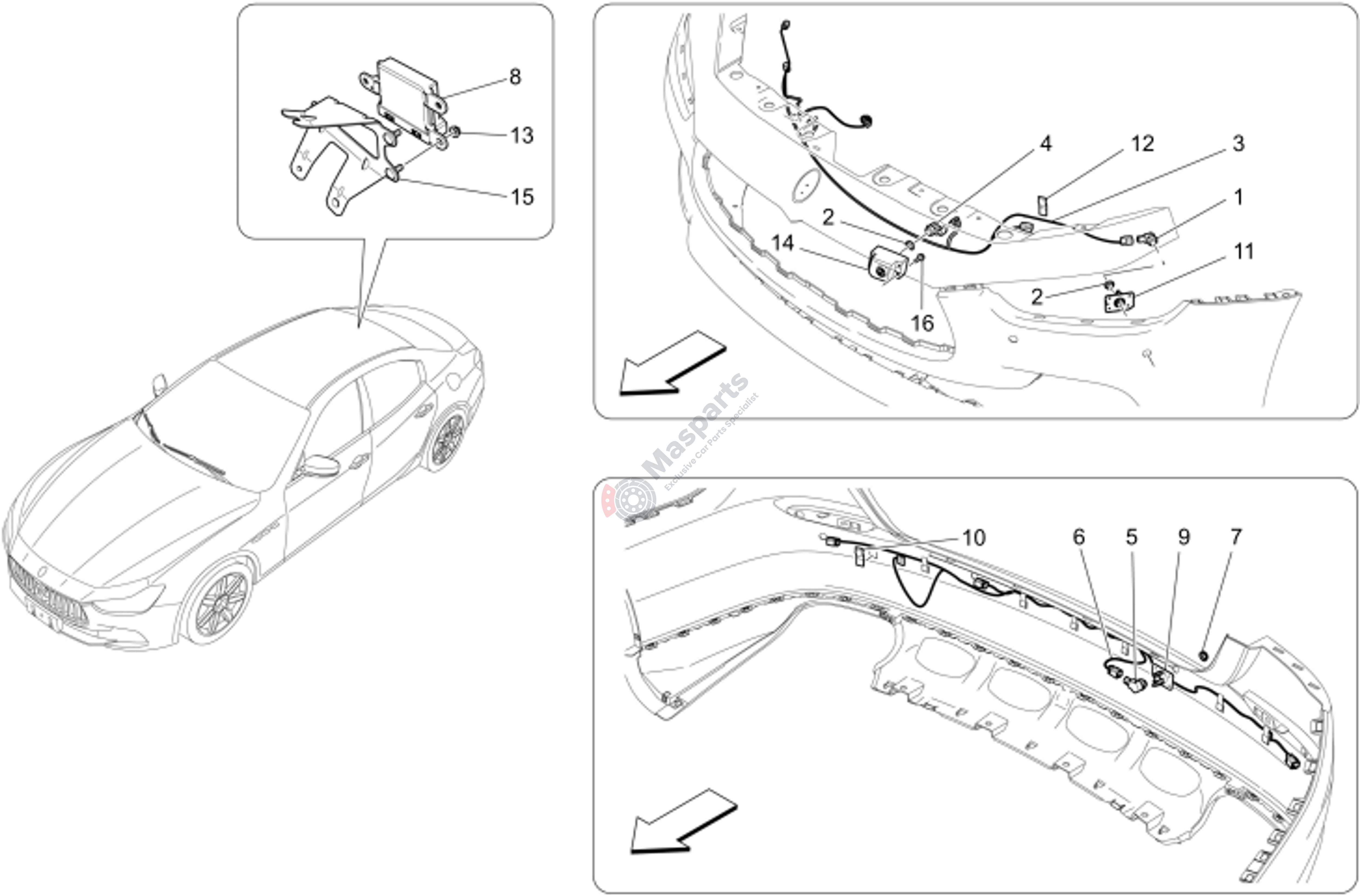

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000039 | Radial Parking Sensor |
$111.68 |
|
|
| 2 | M-675000044 | Silicon Ring |
$7.63 |
|
|
| 4 | M-670005173 | Coaxial Parking Sensor |
$111.68 |
|
|
| 5 | M-675000039 | Radial Parking Sensor |
$111.68 |
|
|
| 7 | M-675000044 | Silicon Ring |
$7.63 |
|
|
| 8 | M-670039913 | Parking Sensor Control Unit |
$188.63 |
|
|
| 9 | M-670010780 | Rear Internal Rh Park. Senso |
$40.85 |
|
|
| 10 | M-670005222 | Clip |
$27.30 |
|
|
| 11 | M-670010769 | Front Intern Rh Parking Sensor |
$32.42 |
|
|
| 12 | M-670005222 | Clip |
$27.30 |
|
|
| 13 | M-675000095 | Nut |
$0.77 |
|
|
| 14 | M-673002937 | Front Rh Parking Sensor Supp |
$37.00 |
|
|
| 15 | M-670031461 | Ecu Bracket |
$10.67 |
|
|
| 16 | M-673006994 | Sensor Fastening Screw |
$2.62 |
|
