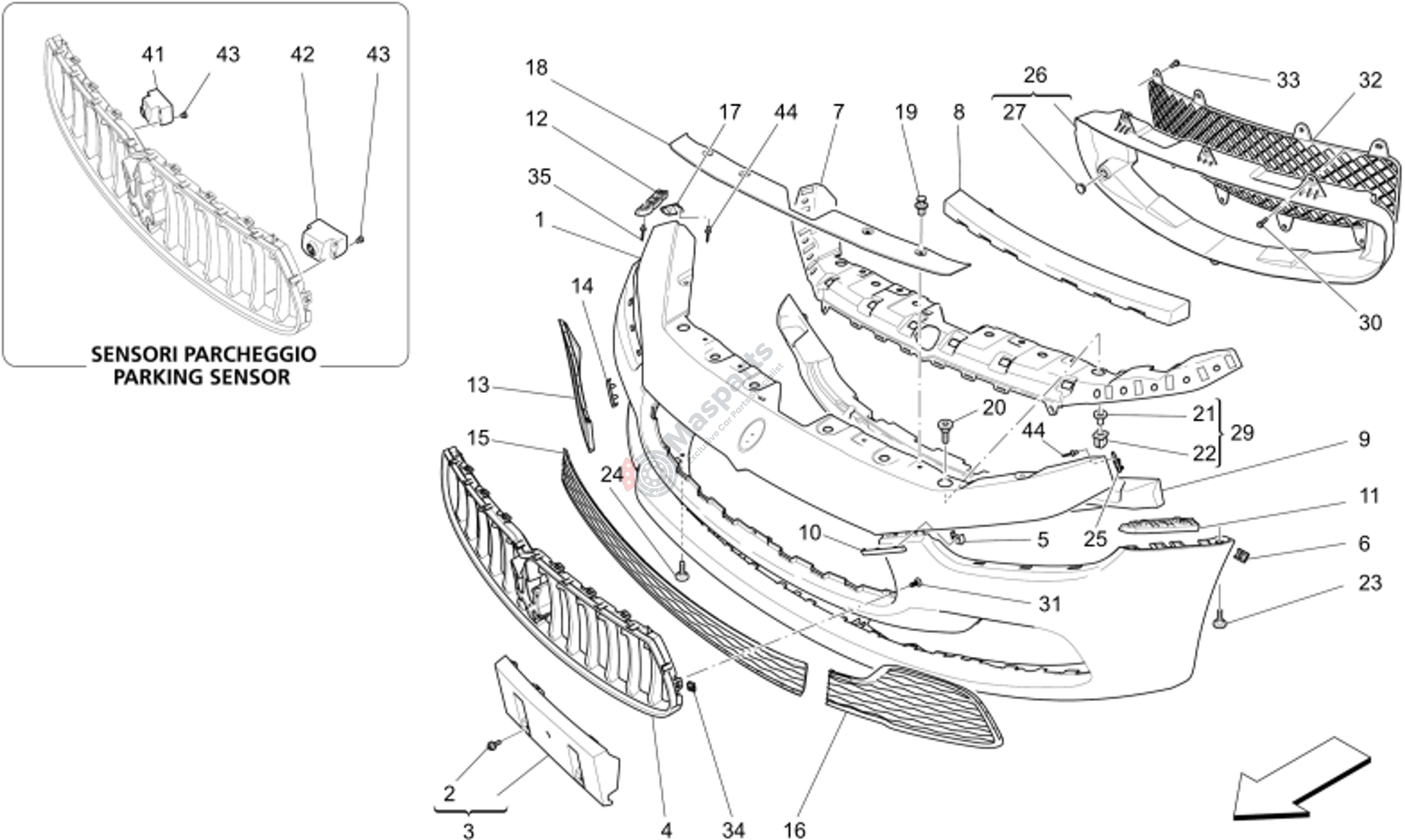

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000228 | Screw |
$2.26 |
|
|
| 5 | M-675000337 | Retaining Clip |
$4.02 |
|
|
| 6 | M-675000192 | Bracket |
$1.24 |
|
|
| 7 | M-670004437 | Upper Bumper Reinforcement |
$295.31 |
|
|
| 8 | M-670036190 | Upper Central Absorber |
$8.33 |
|
|
| 9 | M-670036192 | Lower Central Absorber |
$84.73 |
|
|
| 10 | M-670011292 | L.H. Plate |
$62.17 |
|
|
| 11 | M-670004830 | Lh. Front Bumper Bracket |
$26.53 |
|
|
| 12 | M-670004829 | Rh. Front Bumper Bracket |
$28.48 |
|
|
| 13 | M-670010765 | R.H. Modguard Protection Low |
$71.23 |
|
|
| 14 | M-670011291 | R.H. Plate |
$61.42 |
|
|
| 15 | M-670010773 | Central Grill |
$325.92 |
|
|
| 16 | M-670010766 | L.H. Modguard Protection Low |
$378.32 |
|
|
| 17 | M-670004442 | R.H. Lateral Bracket |
$26.53 |
|
|
| 19 | M-670014562 | Fixing Button. |
$3.04 |
|
|
| 20 | M-670003766 | Screw |
$4.97 |
|
|
| 23 | M-675000057 | Screw |
$2.34 |
|
|
| 24 | M-670034505 | Special Screw |
$2.52 |
|
|
| 25 | M-670004458 | L.H. Lateral Bracket |
$28.26 |
|
|
| 27 | M-670009832 | Towing Hook Cap |
$19.18 |
|
|
| 29 | M-670005535 | Block |
$7.44 |
|
|
| 30 | M-675000077 | Screw |
$2.30 |
|
|
| 31 | M-675000332 | Screw |
$7.13 |
|
|
| 32 | M-670006937 | Grill Conveyor |
$81.04 |
|
|
| 33 | M-675000104 | Screw |
$1.56 |
|
|
| 34 | M-673002939 | Clip |
$7.14 |
|
|
| 35 | M-675000323 | Rivet |
$1.86 |
|
|
| 41 | M-673002937 | Front Rh Parking Sensor Supp |
$37.00 |
|
|
| 42 | M-673002938 | Front Lh Parking Sensor Supp |
$37.00 |
|
|
| 43 | M-673006994 | Sensor Fastening Screw |
$2.62 |
|
|
| 44 | M-675000531 | Rivet |
$1.72 |
|
