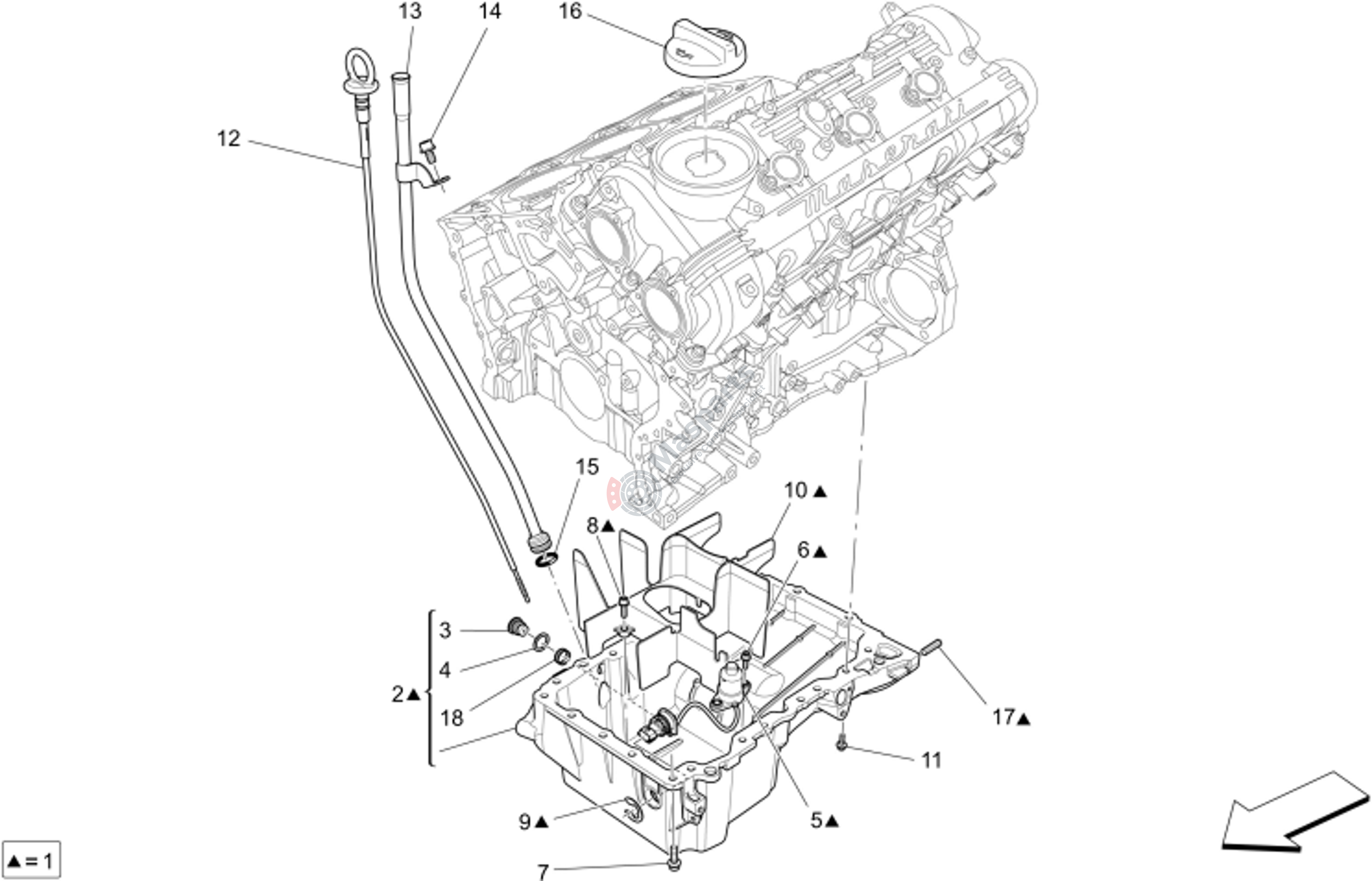

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-331819 | Cpl Oil Pan Assy (V6 Rwd) |
$1,036.19 |
|
|
| 3 | M-104280 | Threaded Plug M 22X1.5 |
$12.32 |
|
|
| 4 | M-10261860 | Gasket 22- 30X 1.5 |
$1.14 |
|
|
| 5 | M-230171 | Oil Level Sensor |
$64.61 |
|
|
| 6 | M-282395 | Screw |
$3.93 |
|
|
| 7 | M-231629 | Socket Head Screw With Washe |
$2.46 |
|
|
| 8 | M-282395 | Screw |
$3.93 |
|
|
| 9 | M-16165276 | 3-Point Circlip D.19 |
$1.73 |
|
|
| 10 | M-291365 | Oil Sump Shield |
$42.84 |
|
|
| 11 | M-295634 | Screw |
$2.63 |
|
|
| 12 | M-315073 | Oil Level Rod |
$42.14 |
|
|
| 13 | M-319585 | Oil Dipstick Holder Extensio |
$72.90 |
|
|
| 14 | M-233600 | Screw |
$2.36 |
|
|
| 15 | M-282370 | O-Ring |
$2.46 |
|
|
| 16 | M-293205 | Engine Oil Filler Cap |
$31.57 |
|
|
| 17 | M-303589 | Stud M10X15X26 Stem40 M10X12 |
$12.66 |
|
|
| 18 | M-223577 | Threaded Fitting M22X1.5X11 |
$3.73 |
|
