Diagram image not available

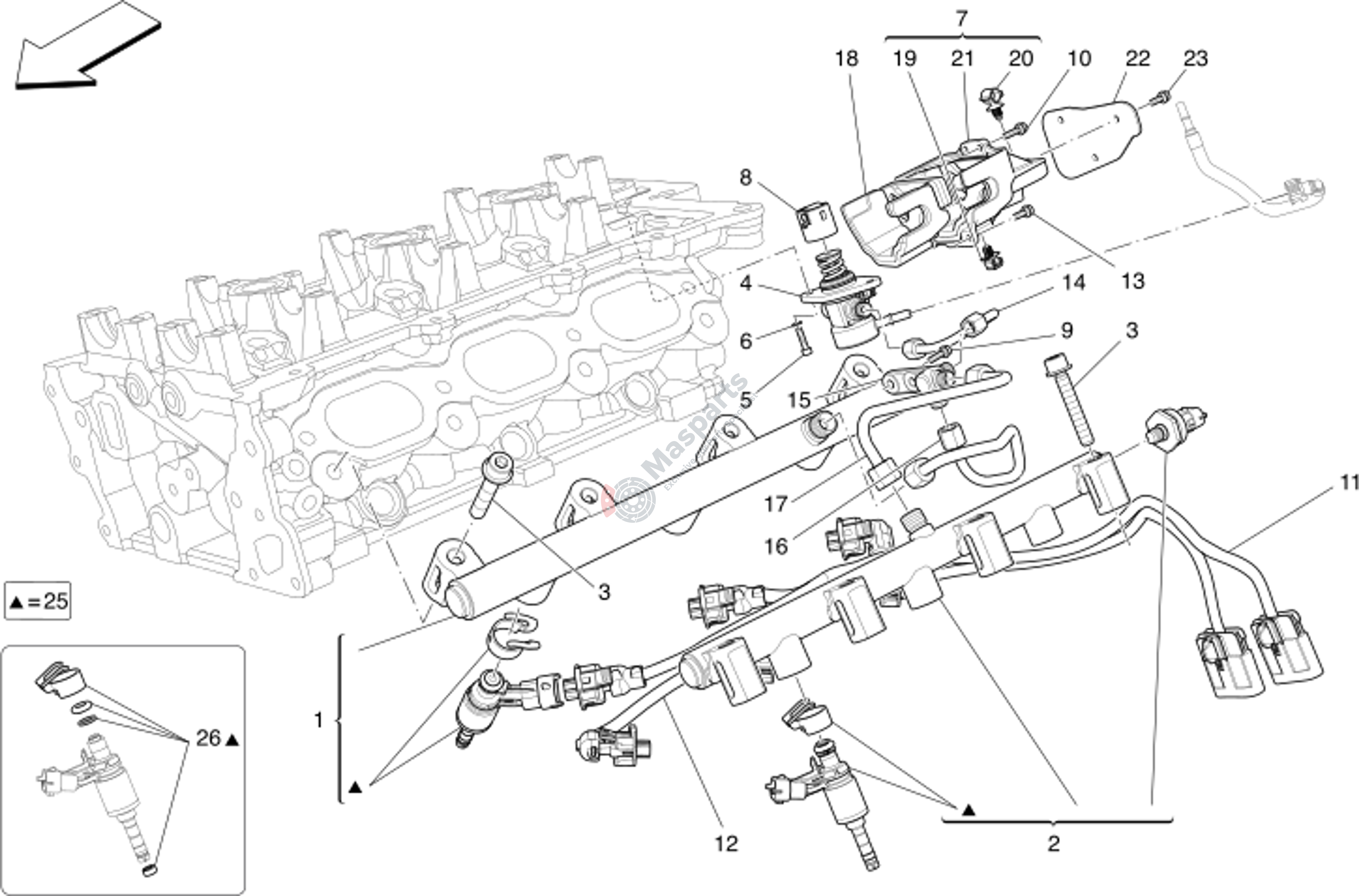

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-327906 | Complete L.H. Injectors Pipe |
$1,142.28 |
|
|
| 3 | M-285494 | Screw |
$4.77 |
|
|
| 5 | M-14305434 | Socket Head Screw M 6X 25 |
$1.35 |
|
|
| 6 | M-12639724 | Washer |
$1.35 |
|
|
| 7 | M-309160 | Shield |
$173.30 |
|
|
| 8 | M-270601 | High Pressure Pump Bucket |
$49.82 |
|
|
| 9 | M-231620 | Socket Head Screw With Washe |
$1.63 |
|
|
| 10 | M-231620 | Socket Head Screw With Washe |
$1.63 |
|
|
| 11 | M-296209 | R.H. Cable |
$270.66 |
|
|
| 12 | M-311644 | L.H. Injection Harness |
$83.82 |
|
|
| 13 | M-305402 | Screw |
$2.44 |
|
|
| 14 | M-310550 | Distributor-Pump High Pressu |
$109.35 |
|
|
| 15 | M-298649 | Pump-Rail Cube Distributor |
$155.23 |
|
|
| 16 | M-282572 | Rh Rail-Pump High-Pressure F |
$102.51 |
|
|
| 17 | M-282571 | Lh Rail-Pump High-Pressure F |
$86.89 |
|
|
| 18 | M-302810 | Gdi Pump Silencer |
$56.99 |
|
|
| 19 | M-283287 | Clip |
$1.71 |
|
|
| 20 | M-303438 | Clip |
$10.75 |
|
|
| 21 | M-333541 | Cpl Shield (V6 Awd) |
$232.48 |
|
|
| 22 | M-670030185 | Gdi Pump Cover Plate |
$28.50 |
|
|
| 26 | M-673015589 | Kit Injector Seal |
$54.84 |
|
