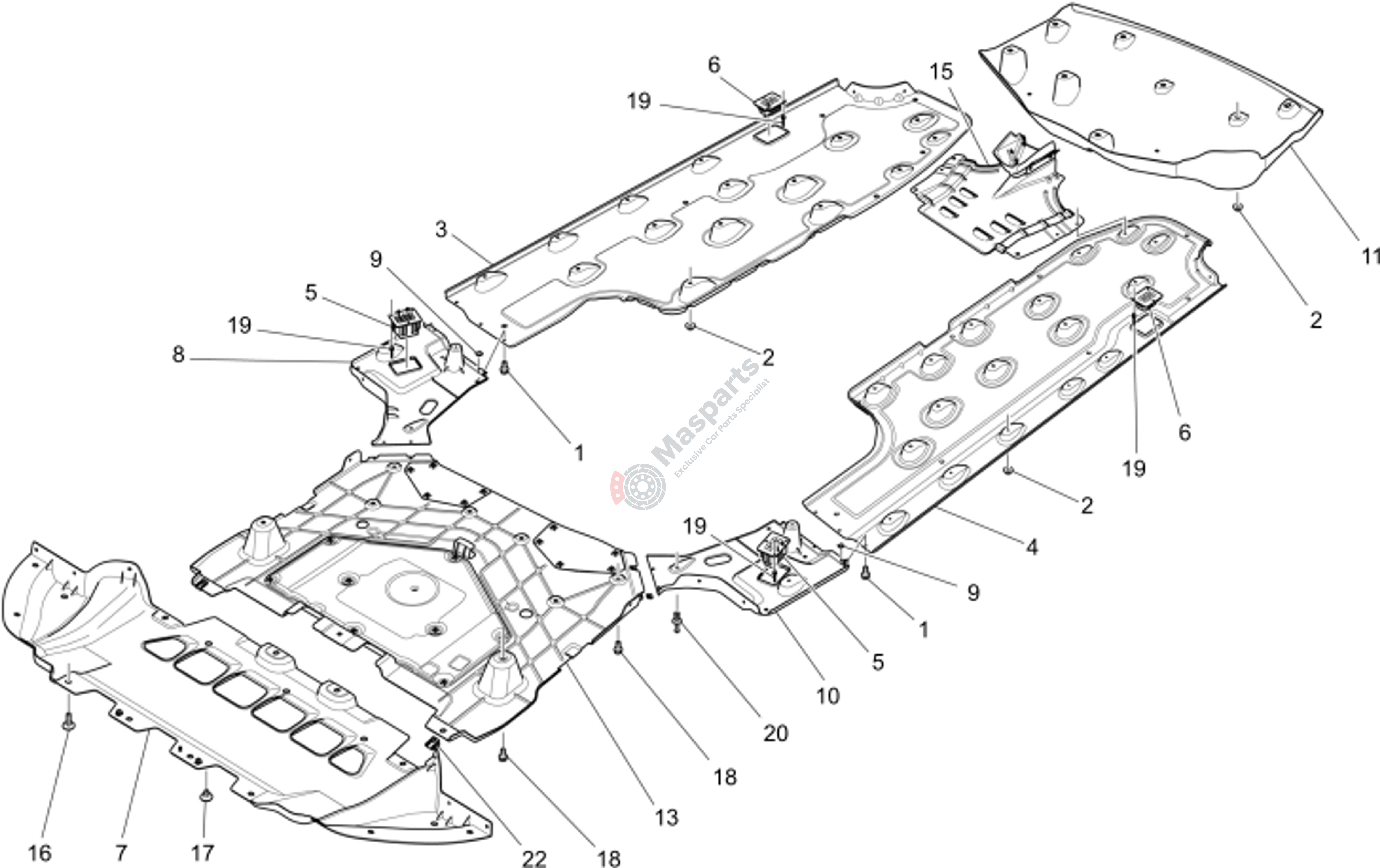

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000228 | Screw |
$2.27 |
|
|
| 2 | M-675000324 | Special Nut |
$1.28 |
|
|
| 3 | M-670030796 | R.H. Central Aerodynamic Bot |
$644.57 |
|
|
| 4 | M-670004365 | Central Left Aerodynamic Gua |
$644.57 |
|
|
| 5 | M-670034356 | Vehicle Lifting Front Suppor |
$15.20 |
|
|
| 6 | M-670034358 | Vehicle Lifting Rear Support |
$12.14 |
|
|
| 7 | M-670001748 | Cpl. Front Aerodynamic Shiel |
$108.87 |
|
|
| 8 | M-670153481 | Cpl Front Rh Aerodynamic Shi |
$48.37 |
|
|
| 9 | M-675000341 | Undercover Screw Fixing Brac |
$2.09 |
|
|
| 10 | M-670153483 | Cpl Front Lh Aerodynamic Shi |
$47.31 |
|
|
| 11 | M-670181064 | Rear Aerodynamic Bottom Asse |
$85.65 |
|
|
| 13 | M-670039641 | Front Aerodynamic Engine Gua |
$232.20 |
|
|
| 15 | M-670030867 | Differential Cpl Air Vent |
$105.00 |
|
|
| 16 | M-670034505 | Special Screw |
$2.53 |
|
|
| 17 | M-670007383 | Fastening Pin |
$8.11 |
|
|
| 18 | M-675000342 | Special Screw With Washer |
$2.57 |
|
|
| 19 | M-675000323 | Rivet |
$1.87 |
|
|
| 20 | M-675000150 | Fixing Button. |
$0.98 |
|
|
| 22 | M-675000020 | Lower Shield Fastening Clip |
$7.14 |
|
