The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

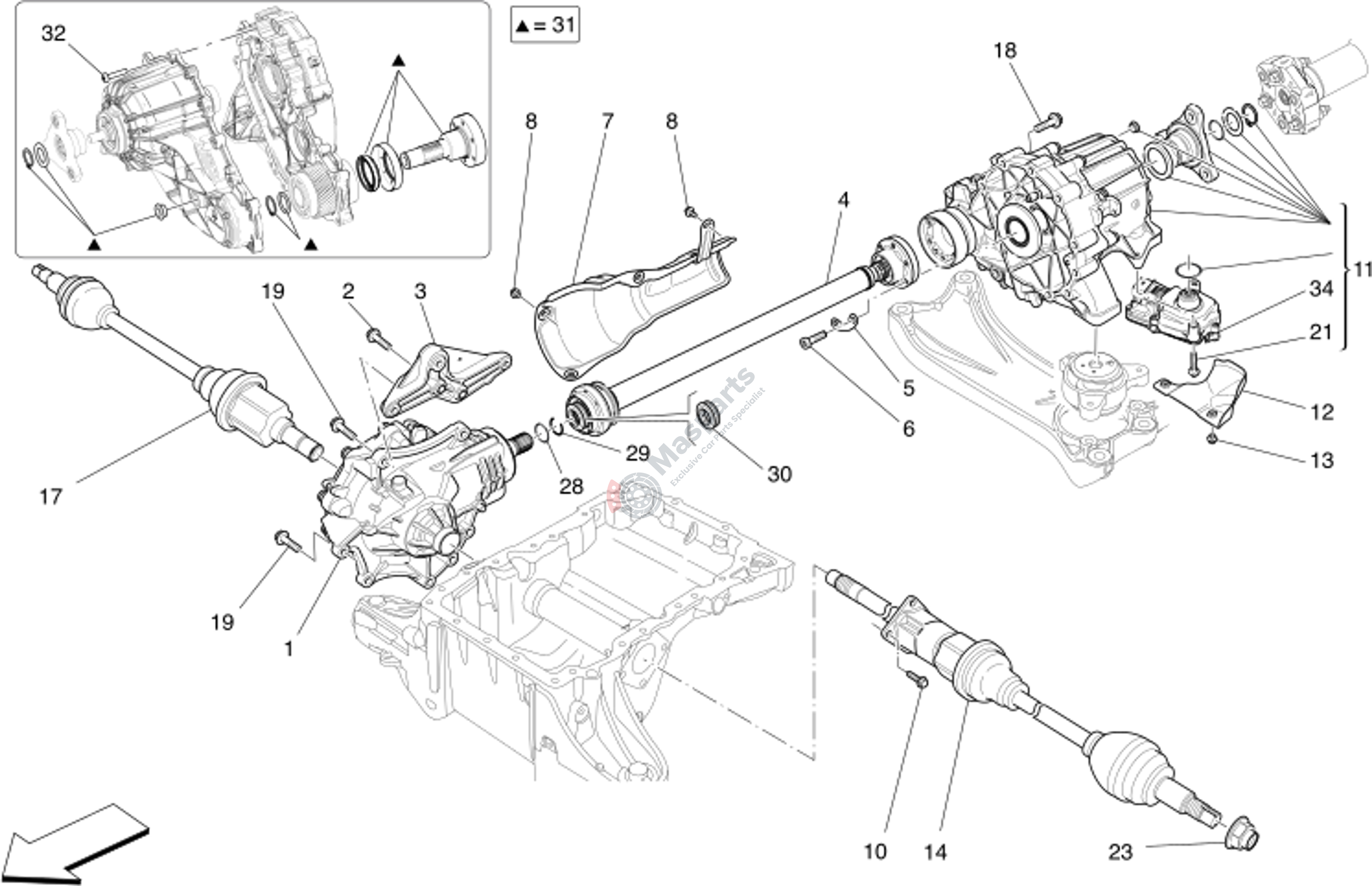

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670038421 | Front Differential Unit |
$1,633.11 |
|
|
| 2 | M-14306534 | Screw |
$2.42 |
|
|
| 3 | M-768641 | Differential Fastening Brack |
$184.25 |
|
|
| 4 | M-670107694 | Front Drive Shaft |
$746.42 |
|
|
| 5 | M-670003772 | Plate |
$3.68 |
|
|
| 6 | M-675000583 | Screw |
$2.42 |
|
|
| 7 | M-670153213 | Heat Shield |
$58.40 |
|
|
| 8 | M-675000102 | Screw |
$2.63 |
|
|
| 10 | M-675000384 | Screw |
$5.08 |
|
|
| 11 | M-670154135 | All Wheel Drive Transfer Cas |
$2,407.80 |
|
|
| 12 | M-670004015 | Heat Shield |
$28.13 |
|
|
| 13 | M-675000102 | Screw |
$2.63 |
|
|
| 14 | M-670032034 | Lh Axle Shaft Assembly |
$883.56 |
|
|
| 17 | M-670035142 | Rh Axle Shaft |
$887.74 |
|
|
| 18 | M-675000386 | Screw |
$3.70 |
|
|
| 19 | M-675000385 | Screw |
$3.63 |
|
|
| 21 | M-673009049 | Hexalobular Screw |
$5.66 |
|
|
| 23 | M-675000138 | Nut |
$8.89 |
|
|
| 28 | M-673008007 | O-Ring |
$5.14 |
|
|
| 29 | M-673008008 | Snap-Ring |
$5.55 |
|
|
| 30 | M-675000719 | Gasket |
$2.82 |
|
|
| 34 | M-670160290 | Transfer Case Control Unit |
$591.48 |
|
