Diagram image not available

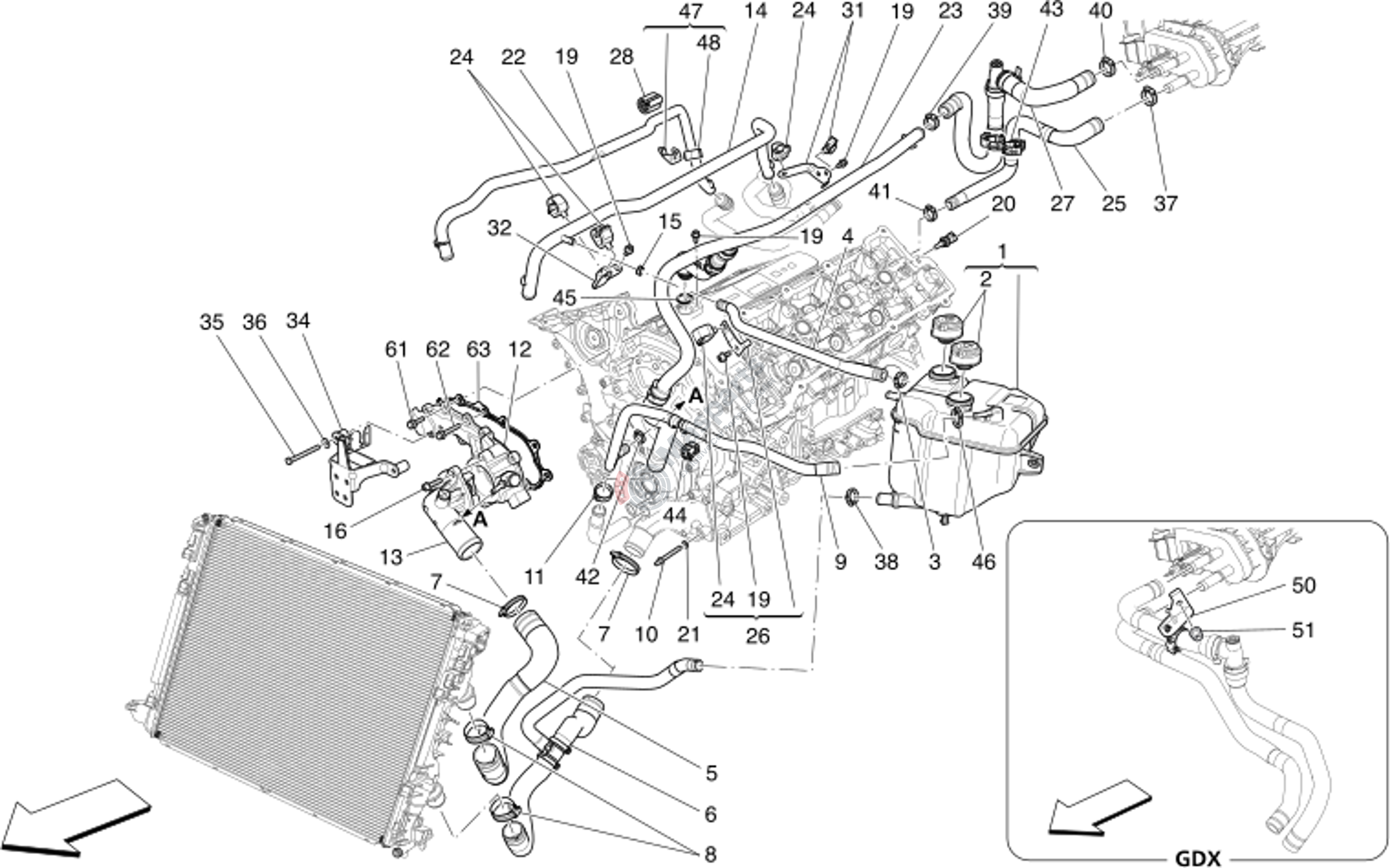

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031651 | Reservoir Assy Engine Coolan |
$93.03 |
|
|
| 2 | M-670003408 | Mount Plug |
$13.64 |
|
|
| 3 | M-675000344 | Strap Collar |
$2.37 |
|
|
| 4 | M-670003615 | Engine Vent Pipe |
$20.58 |
|
|
| 5 | M-670031866 | Radiator Water Inlet Pipe |
$47.29 |
|
|
| 6 | M-670155231 | Water Outlet Sleeve |
$104.97 |
|
|
| 7 | M-675000345 | Screw Collar |
$3.72 |
|
|
| 8 | M-675000345 | Screw Collar |
$3.72 |
|
|
| 9 | M-670003613 | Engine Vent Pipe |
$73.88 |
|
|
| 10 | M-227281 | Stud |
$17.94 |
|
|
| 11 | M-262109 | Clamp |
$2.40 |
|
|
| 13 | M-330424 | Cpl Thermostat |
$99.39 |
|
|
| 14 | M-882497 | Water Secondary Pipe |
$49.31 |
|
|
| 15 | M-675000373 | Strap Collar |
$1.89 |
|
|
| 16 | M-231620 | Socket Head Screw With Washe |
$1.61 |
|
|
| 19 | M-231616 | Screw |
$2.05 |
|
|
| 20 | M-180137 | Water Temperature Sensor |
$38.96 |
|
|
| 21 | M-675000106 | Washer |
$1.61 |
|
|
| 22 | M-296492 | Secondary Water Pipe |
$55.66 |
|
|
| 23 | M-333706 | H2O Hose From Radiator |
$260.59 |
|
|
| 24 | M-259508 | Clip |
$1.70 |
|
|
| 25 | M-670106757 | Water Hose To Heater (Awd2-Z |
$36.26 |
|
|
| 26 | M-292354 | Cpl Pipe Support Bracket |
$18.56 |
|
|
| 27 | M-670106758 | Heater Water Return Sleeve |
$80.35 |
|
|
| 28 | M-298362 | Rubber |
$6.53 |
|
|
| 31 | M-300867 | Bracket |
$202.22 |
|
|
| 32 | M-287986 | Bracket |
$77.59 |
|
|
| 34 | M-834094 | Bracket |
$58.47 |
|
|
| 35 | M-10903424 | Screw |
$2.41 |
|
|
| 36 | M-14498824 | Washer. |
$1.69 |
|
|
| 37 | M-675000334 | Collar Clip |
$2.49 |
|
|
| 38 | M-675000658 | Snap Collar |
$5.53 |
|
|
| 39 | M-675000352 | Hose Elastic Collar |
$3.35 |
|
|
| 40 | M-675000334 | Collar Clip |
$2.49 |
|
|
| 41 | M-675000370 | Strap Collar |
$1.99 |
|
|
| 42 | M-675000368 | Strap Collar |
$1.91 |
|
|
| 43 | M-670005922 | Heating Water Pipe Retaining |
$3.01 |
|
|
| 44 | M-675000019 | Pipe Retaining Clip |
$1.16 |
|
|
| 45 | M-282370 | O-Ring |
$2.41 |
|
|
| 46 | M-675000344 | Strap Collar |
$2.37 |
|
|
| 47 | M-302126 | Bracket Cpl. |
$9.23 |
|
|
| 48 | M-259508 | Clip |
$1.70 |
|
|
| 50 | M-670005450 | Bracket |
$6.31 |
|
|
| 61 | M-291776 | Screw |
$3.85 |
|
|
| 62 | M-291771 | Screw |
$19.42 |
|
|
| 63 | M-280912 | Gasket (Crossover) |
$19.01 |
|
