The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

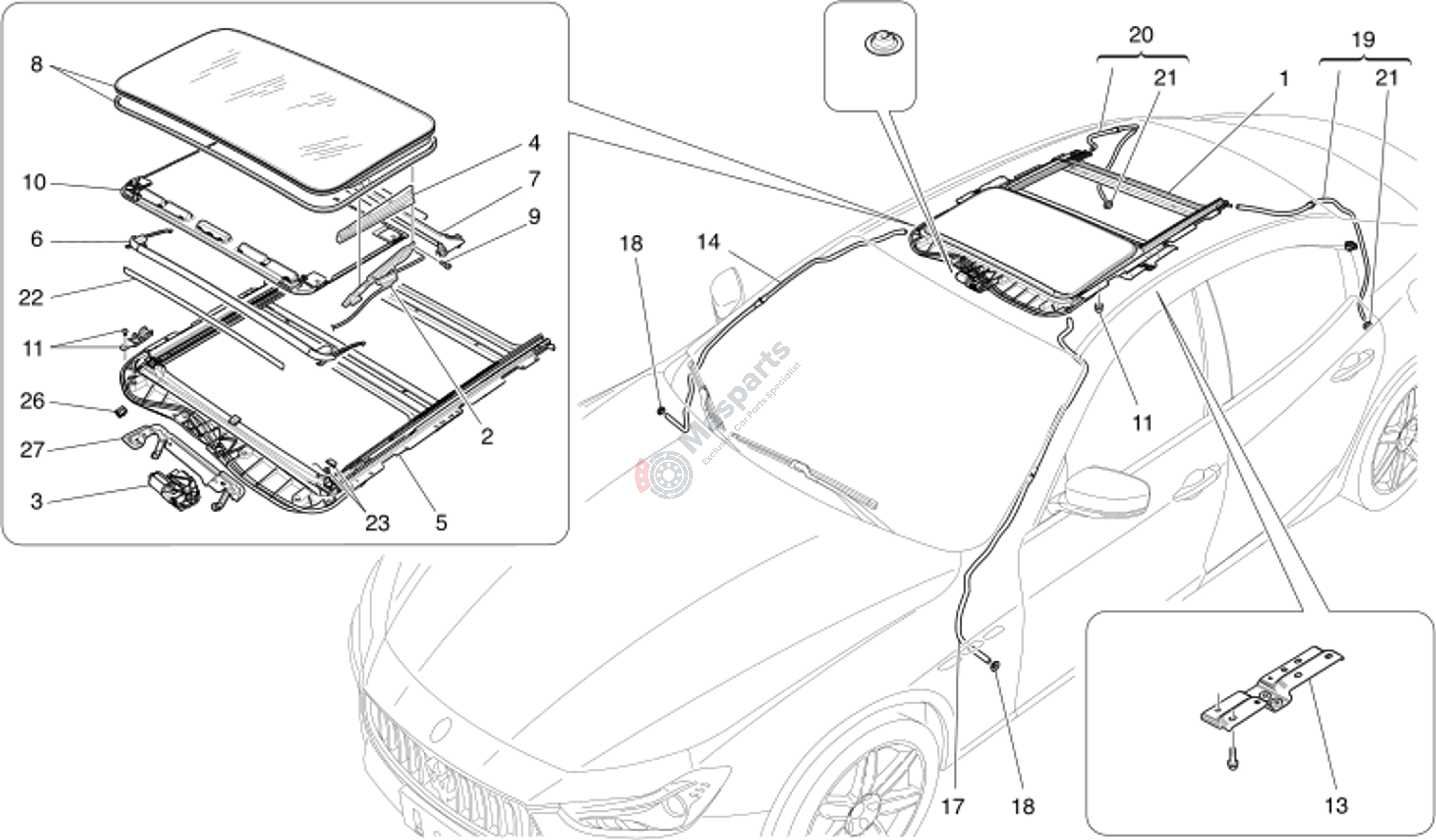

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-980139303 | Rh Mechanism 6109734A |
$129.02 |
|
|
| 3 | M-673000063 | Gearmotor 6113336A |
$386.21 |
|
|
| 4 | M-980139306 | Rh Mechanism Guard 6109725A |
$50.87 |
|
|
| 5 | M-673008102 | Sunroof Frame |
$1,047.07 |
|
|
| 6 | M-673000051 | Deflector 6113337A |
$188.82 |
|
|
| 7 | M-980139310 | Sunroof Guide Rail Assembly |
$61.46 |
|
|
| 8 | M-673009009 | Complete Glass |
$897.97 |
|
|
| 9 | M-980139314 | Glass Fastening Screw 610973 |
$27.96 |
|
|
| 11 | M-673000442 | Fastening Clips Kit |
$23.74 |
|
|
| 13 | M-670030311 | Support Sunroof Rt Bracket |
$18.99 |
|
|
| 14 | M-670003339 | Pipe For Water Outlet |
$35.96 |
|
|
| 17 | M-670003340 | Pipe For Water Outlet |
$33.30 |
|
|
| 18 | M-670031349 | Plug |
$4.54 |
|
|
| 19 | M-670031338 | Lh Rear Water Pipe |
$73.43 |
|
|
| 20 | M-670031337 | Rh Rear Water Pipe |
$73.43 |
|
|
| 21 | M-670005386 | Rubber |
$7.15 |
|
|
| 22 | M-670102014 | Adhesive Flap Sticker Sunroo |
$13.42 |
|
|
| 23 | M-673009181 | Clamps With Plastic Cover |
$59.51 |
|
|
| 27 | M-670159319 | Upholstery Bracket |
$41.60 |
|
