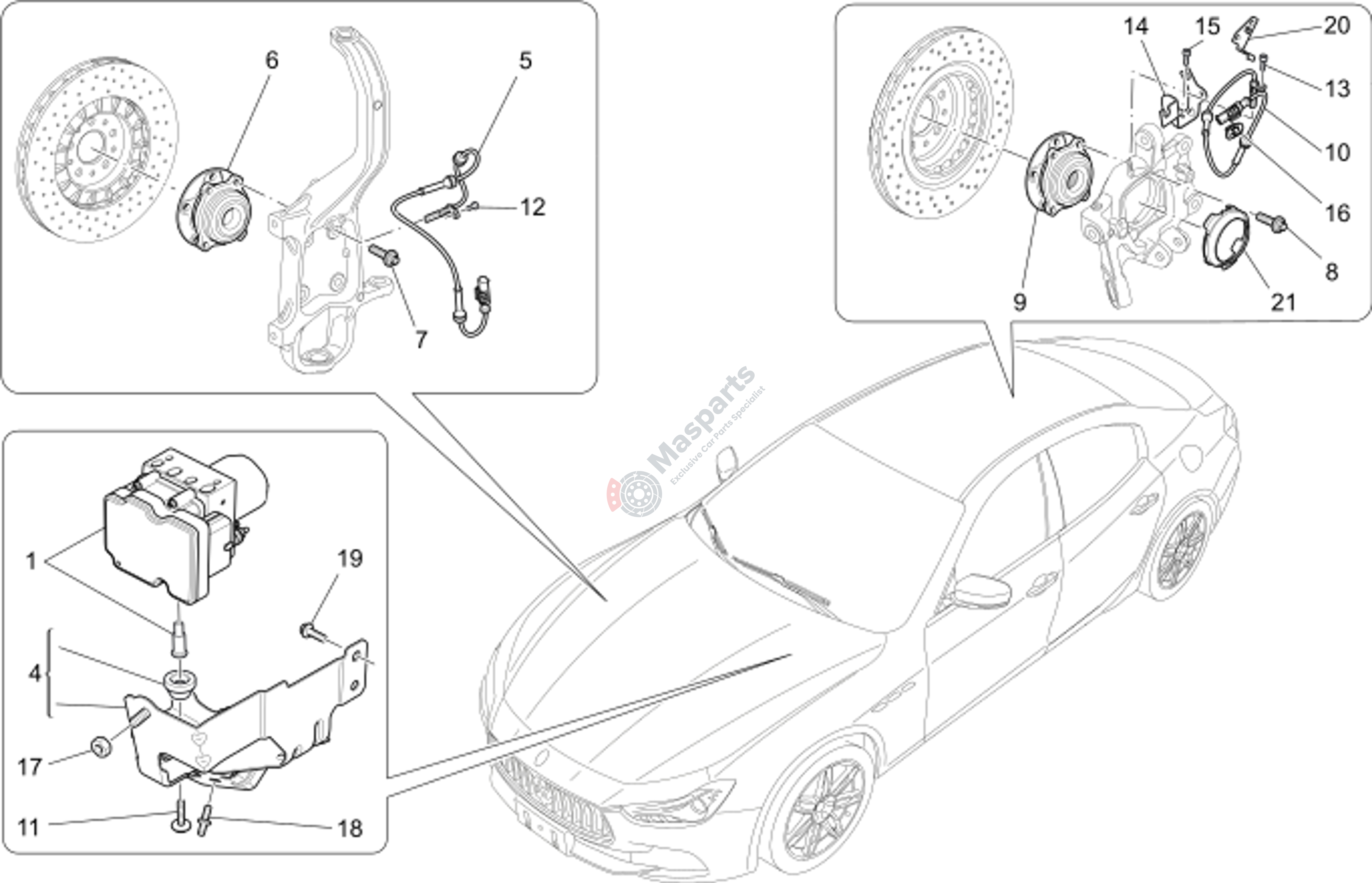

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673010400 | Abs/Asr Hydraulic Unit |
$1,691.70 |
|
|
| 4 | M-670104779 | Brake Controller Bracket |
$35.71 |
|
|
| 5 | M-670037273 | Front Abs Sensor |
$47.72 |
|
|
| 6 | M-675000062 | Complete Front Bearing Wheel |
$391.46 |
|
|
| 7 | M-670006981 | Screw |
$5.54 |
|
|
| 8 | M-670035429 | Screw |
$4.92 |
|
|
| 9 | M-670103668 | Bearing Wheel Assembly |
$269.19 |
|
|
| 10 | M-670035289 | Rear Abs Sensor |
$33.87 |
|
|
| 11 | M-675000156 | Screw |
$3.13 |
|
|
| 12 | M-675000173 | Screw |
$1.97 |
|
|
| 13 | M-675000173 | Screw |
$1.97 |
|
|
| 14 | M-670036877 | Rh Abs Sensor Bracket |
$23.92 |
|
|
| 15 | M-675000173 | Screw |
$1.97 |
|
|
| 16 | M-675000355 | Clip |
$0.96 |
|
|
| 18 | M-675000430 | Screw |
$2.38 |
|
|
| 19 | M-675000387 | Screw |
$1.83 |
|
|
| 21 | M-670037587 | Bearing Shelter |
$3.48 |
|
