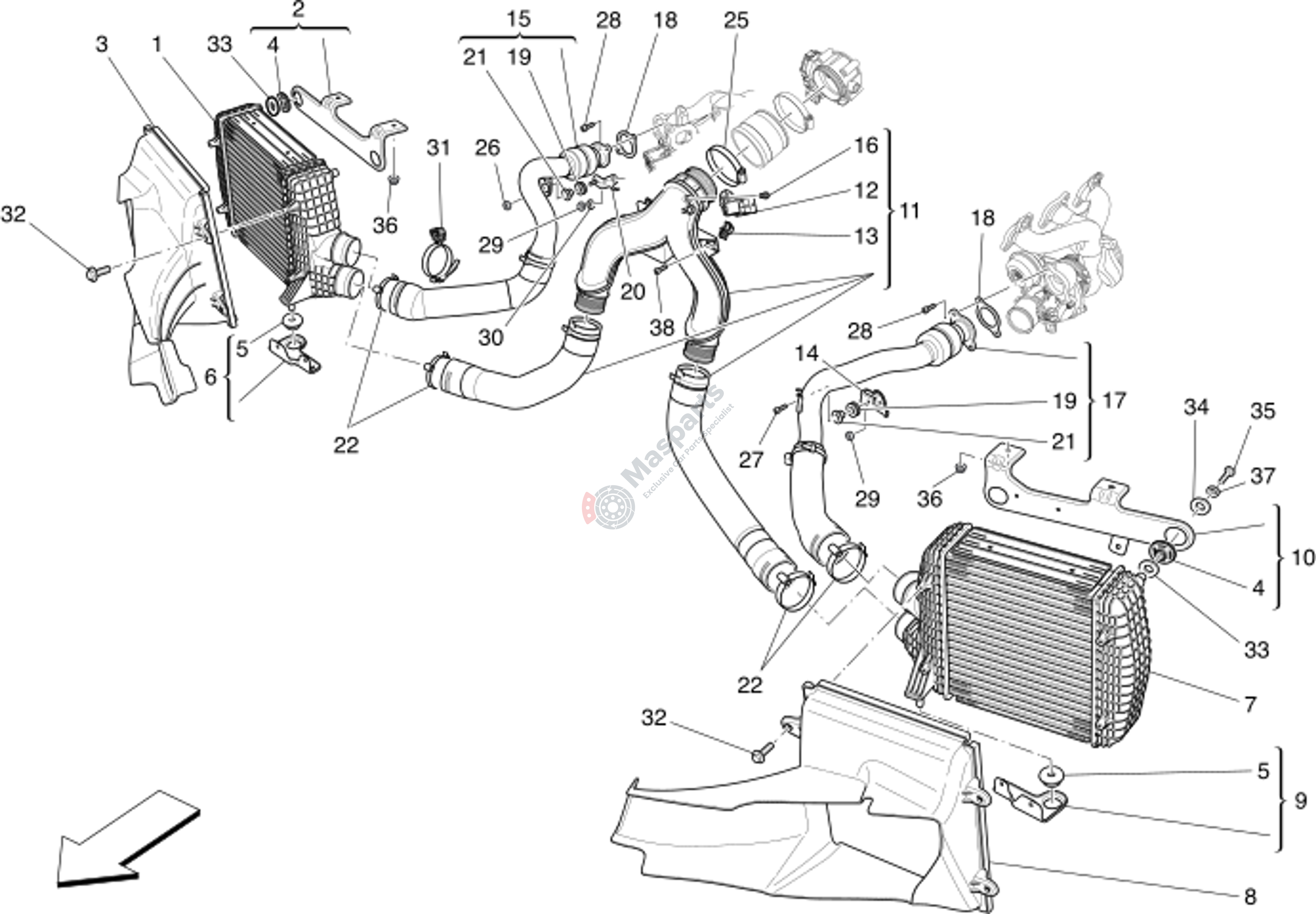

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670109552 | Rh Intercooler |
$391.84 |
|
|
| 2 | M-670001349 | Ic Upper Rh Support Bracket |
$26.39 |
|
|
| 3 | M-670038774 | Rh Side Air Duct ˇ |
$58.89 |
|
|
| 4 | M-675000201 | Small Block. |
$9.10 |
|
|
| 5 | M-670009556 | Radiator Support Fastening B |
$3.08 |
|
|
| 6 | M-670037757 | Lower Intercooler Bracket |
$18.71 |
|
|
| 7 | M-670109550 | Lh Intercooler |
$408.92 |
|
|
| 8 | M-670038777 | Lh Side Air Duct ˇ |
$58.89 |
|
|
| 9 | M-670037759 | Intercooler Bracket |
$91.74 |
|
|
| 10 | M-670001348 | Ic Upper Lh Support Bracket |
$33.47 |
|
|
| 11 | M-670039354 | Sleeve |
$427.90 |
|
|
| 12 | M-675000248 | Air Temp Sensor |
$114.23 |
|
|
| 13 | M-670006739 | Retaining Clip |
$2.38 |
|
|
| 14 | M-670009370 | Lh Bracket |
$10.47 |
|
|
| 15 | M-670105603 | Sleeve From Turbine To Rh In |
$293.17 |
|
|
| 16 | M-675000190 | Screw |
$2.84 |
|
|
| 17 | M-670038535 | Sleeve |
$405.12 |
|
|
| 18 | M-670006210 | Gasket |
$4.21 |
|
|
| 19 | M-675000016 | Rubber Bushing |
$5.60 |
|
|
| 20 | M-670105605 | Rh Bracket |
$10.87 |
|
|
| 21 | M-675000017 | Spacer |
$7.94 |
|
|
| 22 | M-675000362 | Collar |
$4.72 |
|
|
| 25 | M-675000685 | Collar |
$7.32 |
|
|
| 27 | M-675000088 | Screw |
$2.57 |
|
|
| 28 | M-675000104 | Screw |
$1.53 |
|
|
| 30 | M-675000366 | Washer |
$1.63 |
|
|
| 31 | M-670006982 | Retaining Clip |
$2.97 |
|
|
| 32 | M-675000354 | Screw |
$2.63 |
|
|
| 33 | M-670007293 | Spacer |
$3.00 |
|
|
| 35 | M-675000409 | Washer |
$2.40 |
|
|
| 37 | M-675000718 | Washer |
$2.17 |
|
|
| 38 | M-675000088 | Screw |
$2.57 |
|
