Diagram image not available

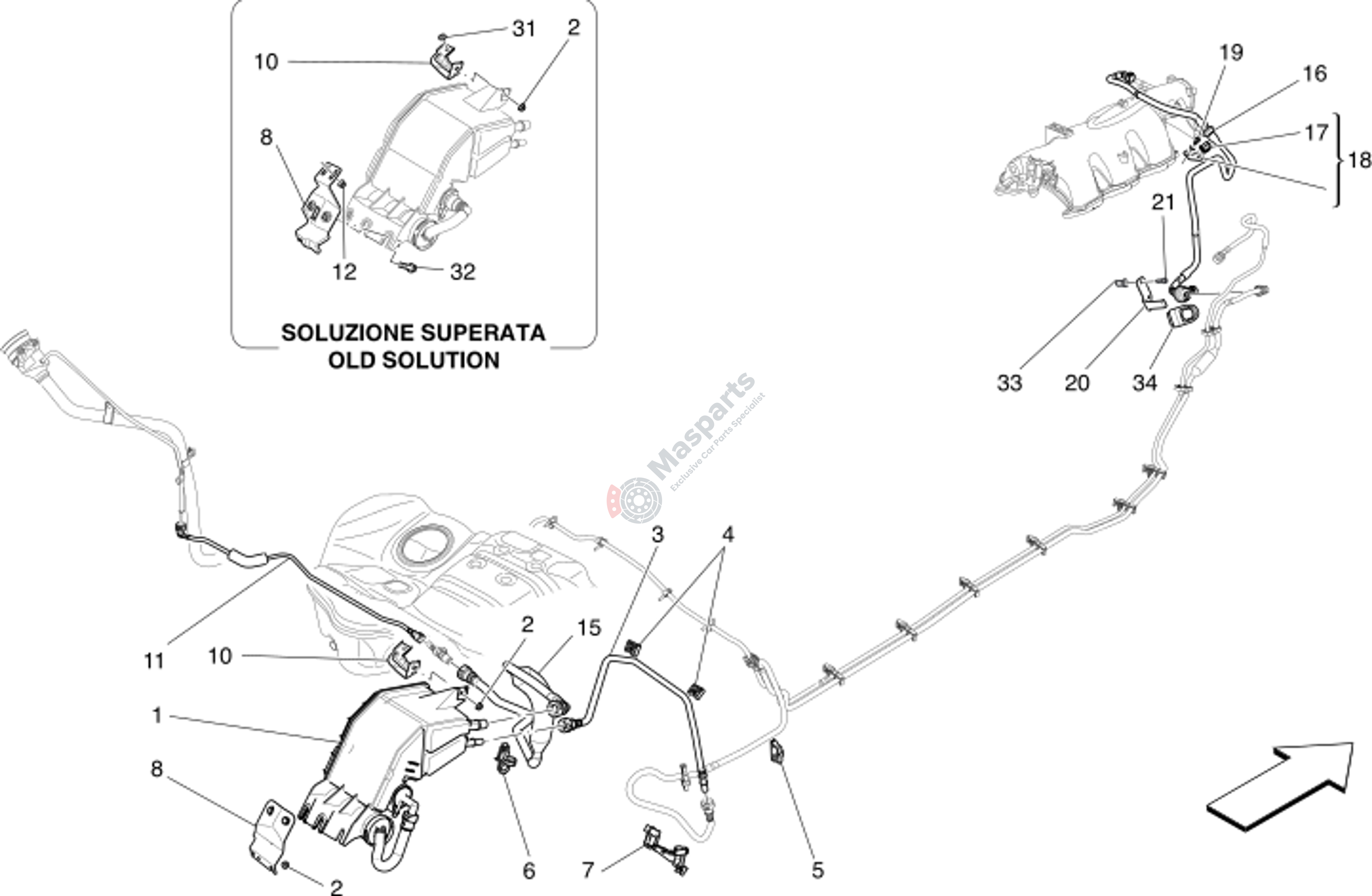

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102642 | Fuel Vapour Filter |
$178.59 |
|
|
| 2 | M-675000095 | Nut |
$0.77 |
|
|
| 3 | M-670105545 | Fuel Vapour Pipe |
$27.86 |
|
|
| 4 | M-670033289 | Pipe Clip |
$3.05 |
|
|
| 5 | M-675000790 | Clip |
$1.25 |
|
|
| 6 | M-670100038 | Fuel Tank Bracket |
$3.13 |
|
|
| 7 | M-670106064 | Clip |
$3.17 |
|
|
| 10 | M-670036933 | Canister Bracket |
$24.88 |
|
|
| 11 | M-670005215 | Flex.Hose |
$28.15 |
|
|
| 15 | M-670036929 | Fuel Tank Blow-By Dump-Pipe |
$90.71 |
|
|
| 16 | M-670161425 | Pipe From Union To Air Intak |
$138.79 |
|
|
| 17 | M-675000132 | Clip |
$1.16 |
|
|
| 18 | M-670005045 | Cpl Bracket |
$5.94 |
|
|
| 19 | M-675000191 | Screw |
$2.00 |
|
|
| 20 | M-670007135 | Bracket |
$3.64 |
|
|
| 21 | M-675000242 | Screw |
$3.33 |
|
|
| 33 | M-675000576 | Rivet |
$1.18 |
|
|
| 34 | M-670007319 | Antivibration Bushing |
$6.53 |
|
