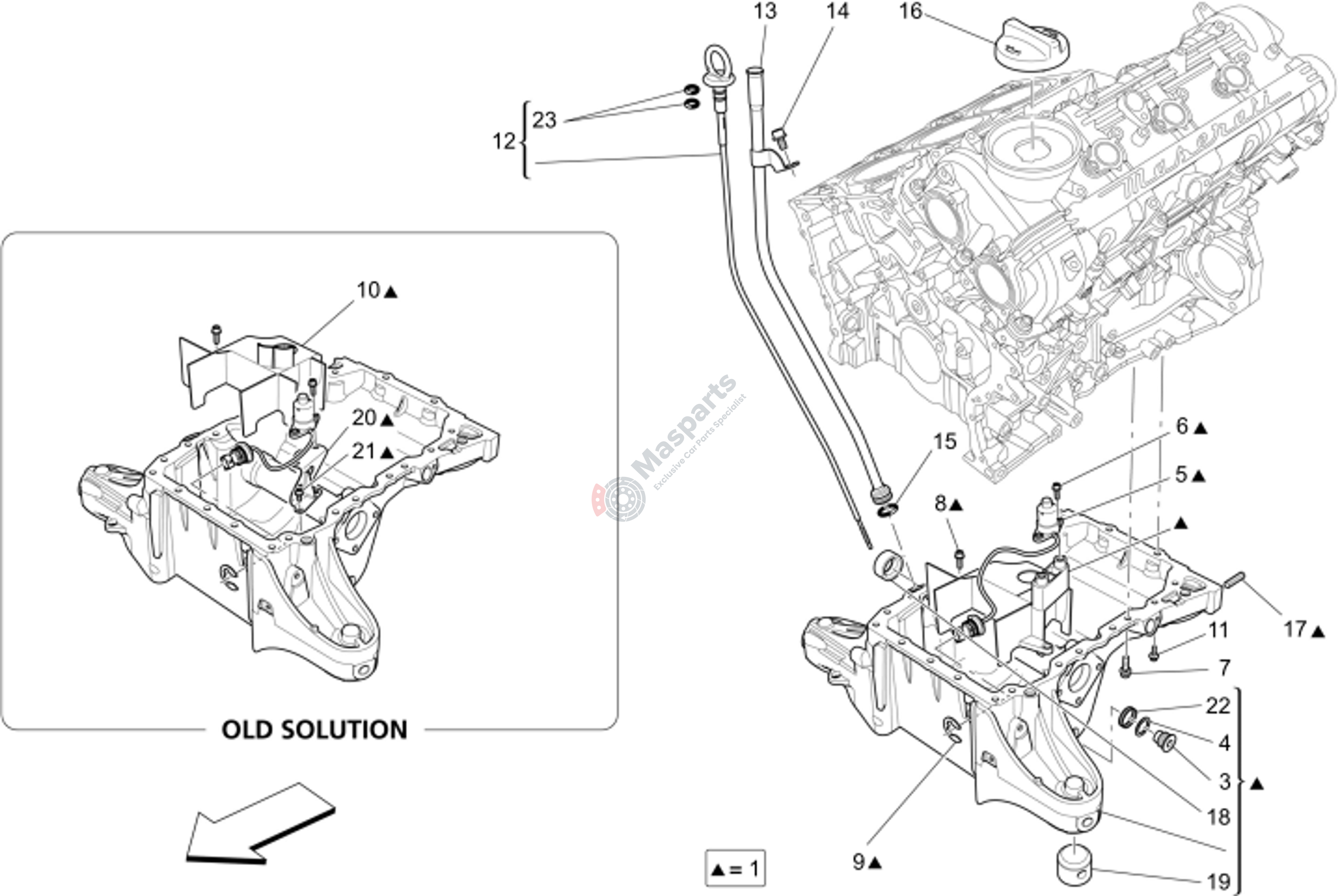

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-849084 | Cpl Oil Pan Assy (V6 Awd) |
€1.080,35 |
|
|
| 3 | M-104280 | Threaded Plug M 22X1.5 |
€10,40 |
|
|
| 4 | M-10261860 | Gasket 22- 30X 1.5 |
€0,95 |
|
|
| 5 | M-230171 | Oil Level Sensor |
€54,95 |
|
|
| 6 | M-282394 | Screw |
€2,09 |
|
|
| 7 | M-231629 | Socket Head Screw With Washe |
€2,09 |
|
|
| 8 | M-282394 | Screw |
€2,09 |
|
|
| 9 | M-16165276 | 3-Point Circlip D.19 |
€1,46 |
|
|
| 10 | M-291687 | Oil Sump Shield |
€16,01 |
|
|
| 11 | M-295634 | Screw |
€2,23 |
|
|
| 12 | M-315073 | Oil Level Rod |
€35,79 |
|
|
| 13 | M-789110 | Oil Dipstick Holder Extensio |
€69,74 |
|
|
| 14 | M-233600 | Screw |
€1,99 |
|
|
| 15 | M-282370 | O-Ring |
€2,09 |
|
|
| 16 | M-293205 | Engine Oil Filler Cap |
€26,77 |
|
|
| 17 | M-303589 | Stud M10X15X26 Stem40 M10X12 |
€10,76 |
|
|
| 18 | M-294812 | Bushing |
€93,84 |
|
|
| 19 | M-294029 | Bushing |
€701,96 |
|
|
| 20 | M-299494 | Bracket |
€11,04 |
|
|
| 21 | M-282394 | Screw |
€2,09 |
|
|
| 22 | M-223577 | Threaded Fitting M22X1.5X11 |
€3,13 |
|
|
| 23 | M-306702 | O-Ring 615X210 |
€5,52 |
|
