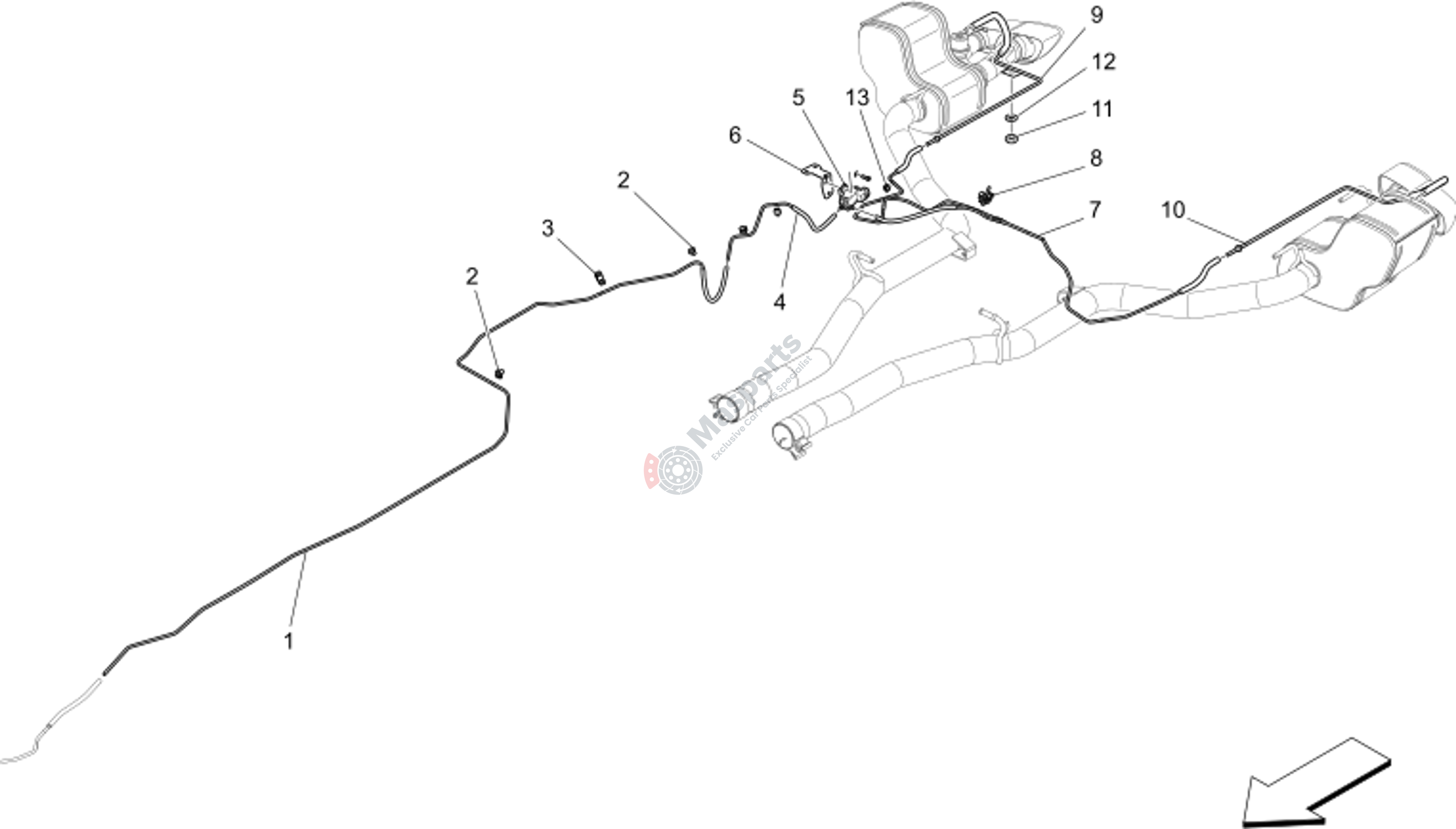

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670105621 | Vacuum Pipe - Part 2 |
$42.83 |
|
|
| 2 | M-675000141 | Clip |
$0.98 |
|
|
| 4 | M-670175155 | Pipe |
$8.66 |
|
|
| 5 | M-670002843 | On/Off Solenoid Valve |
$44.06 |
|
|
| 6 | M-670038865 | Valve Bracket |
$25.12 |
|
|
| 7 | M-670175156 | Underbody Vacuum Pipe |
$48.03 |
|
|
| 8 | M-675000072 | Clip |
$2.35 |
|
|
| 9 | M-670007191 | Rh Hose |
$47.83 |
|
|
| 10 | M-670007192 | Lh Hose |
$47.83 |
|
|
| 11 | M-675000447 | Nut |
$3.63 |
|
|
| 12 | M-675000441 | Washer |
$1.20 |
|
|
| 13 | M-675000356 | Clip |
$1.71 |
|
