Diagram image not available

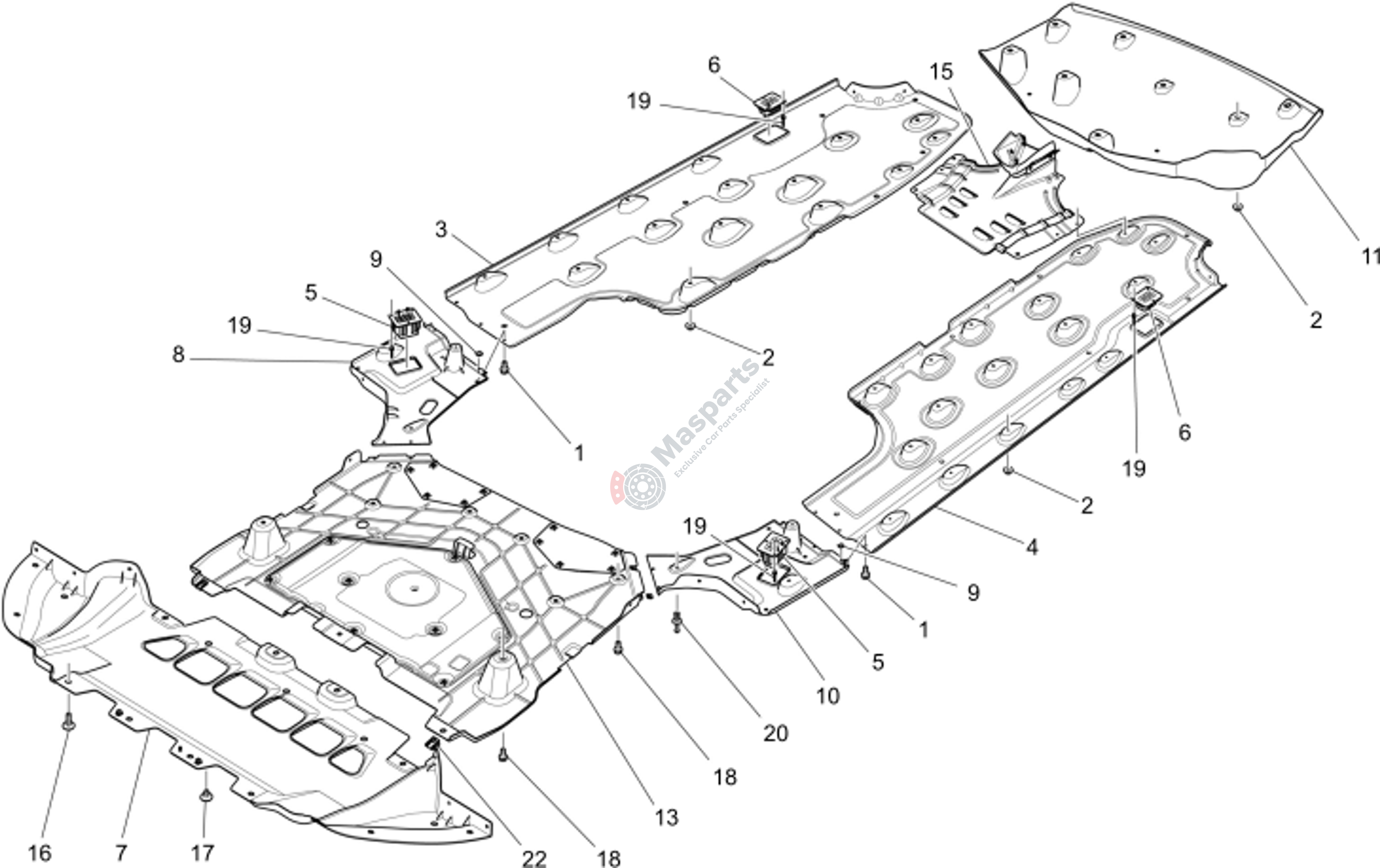

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000228 | Screw |
$2.31 |
|
|
| 2 | M-675000324 | Special Nut |
$1.30 |
|
|
| 3 | M-670030796 | R.H. Central Aerodynamic Bot |
$655.08 |
|
|
| 4 | M-670004365 | Central Left Aerodynamic Gua |
$655.08 |
|
|
| 5 | M-670034356 | Vehicle Lifting Front Suppor |
$15.44 |
|
|
| 6 | M-670034358 | Vehicle Lifting Rear Support |
$12.33 |
|
|
| 7 | M-670001748 | Cpl. Front Aerodynamic Shiel |
$110.65 |
|
|
| 8 | M-670153481 | Cpl Front Rh Aerodynamic Shi |
$49.16 |
|
|
| 9 | M-675000341 | Undercover Screw Fixing Brac |
$2.12 |
|
|
| 10 | M-670153483 | Cpl Front Lh Aerodynamic Shi |
$48.08 |
|
|
| 11 | M-670181064 | Rear Aerodynamic Bottom Asse |
$87.05 |
|
|
| 13 | M-670039641 | Front Aerodynamic Engine Gua |
$235.98 |
|
|
| 15 | M-670030867 | Differential Cpl Air Vent |
$106.71 |
|
|
| 16 | M-670034505 | Special Screw |
$2.57 |
|
|
| 17 | M-670007383 | Fastening Pin |
$8.25 |
|
|
| 18 | M-675000342 | Special Screw With Washer |
$2.62 |
|
|
| 19 | M-675000323 | Rivet |
$1.90 |
|
|
| 20 | M-675000150 | Fixing Button. |
$1.00 |
|
|
| 22 | M-675000020 | Lower Shield Fastening Clip |
$7.25 |
|
