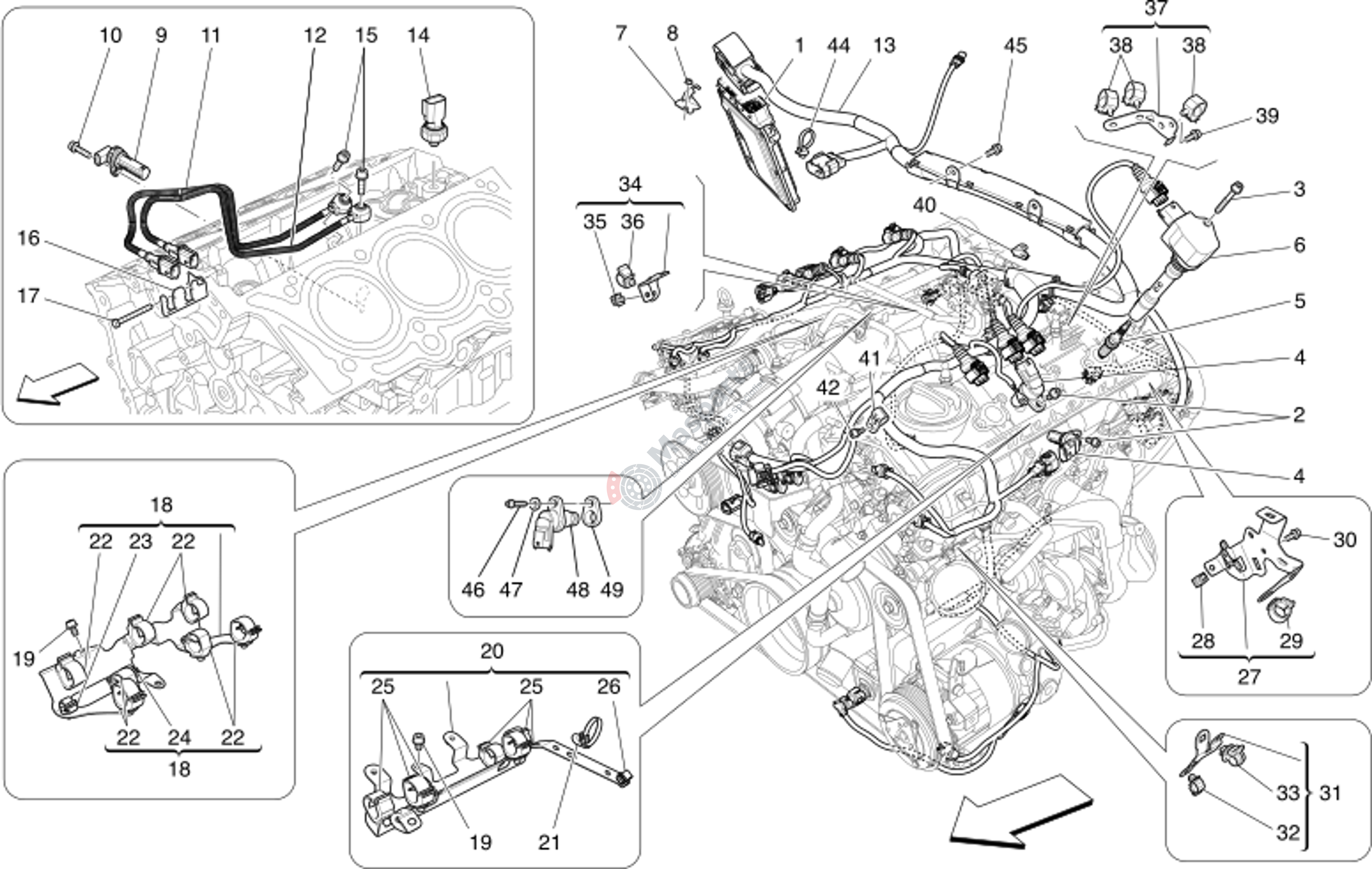

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-231616 | Screw |
$2.11 |
|
|
| 3 | M-231624 | Socket Head Screw With Washe |
$2.85 |
|
|
| 4 | M-224573 | Timing Sensor |
$51.93 |
|
|
| 5 | M-310235 | Spark Plug |
$23.08 |
|
|
| 6 | M-288233 | Ignition Coil |
$114.29 |
|
|
| 7 | M-670009042 | Control Unit Fixing Bracket |
$9.54 |
|
|
| 9 | M-961644 | Angolar Speed Sensor |
$65.26 |
|
|
| 10 | M-231620 | Socket Head Screw With Washe |
$1.65 |
|
|
| 11 | M-772995 | Cpl Rh Detonation Sensor 1-2 |
$109.27 |
|
|
| 12 | M-792379 | Cpl Lh Detonation Sensor 4-5 |
$118.30 |
|
|
| 13 | M-316039 | Engine Injection Wiring Harn |
$1,257.14 |
|
|
| 14 | M-328660 | Oil Pressure Sensor |
$69.57 |
|
|
| 15 | M-231629 | Socket Head Screw With Washe |
$2.48 |
|
|
| 16 | M-290057 | Cover |
$43.22 |
|
|
| 17 | M-10903724 | Screw |
$2.97 |
|
|
| 18 | M-302135 | Rh Cylinder Head Hoses Cpl B |
$44.08 |
|
|
| 19 | M-231616 | Screw |
$2.11 |
|
|
| 20 | M-317131 | Lh Cyl.Head Hoses&Wirings Br |
$49.55 |
|
|
| 21 | M-10901087 | Clamp |
$3.74 |
|
|
| 22 | M-259508 | Clip |
$1.75 |
|
|
| 23 | M-292112 | Pipe Retaining Clip D.8 |
$1.74 |
|
|
| 24 | M-226603 | Pipe Retaining Clip D.8 |
$2.48 |
|
|
| 25 | M-226603 | Pipe Retaining Clip D.8 |
$2.48 |
|
|
| 26 | M-259508 | Clip |
$1.75 |
|
|
| 27 | M-323966 | Bracket |
$35.71 |
|
|
| 28 | M-283287 | Clip |
$1.74 |
|
|
| 29 | M-191273 | Spring |
$1.74 |
|
|
| 30 | M-231616 | Screw |
$2.11 |
|
|
| 31 | M-290960 | Lh Turbo Hose Cpl Bracket |
$10.40 |
|
|
| 32 | M-226603 | Pipe Retaining Clip D.8 |
$2.48 |
|
|
| 33 | M-288849 | Cables Retaining Clip |
$38.22 |
|
|
| 34 | M-673007937 | Bracket And Screw |
$19.95 |
|
|
| 35 | M-283287 | Clip |
$1.74 |
|
|
| 36 | M-247440 | Spring |
$1.82 |
|
|
| 37 | M-318883 | Lh Cyl. Head Hoses&Wirings B |
$19.54 |
|
|
| 38 | M-259508 | Clip |
$1.75 |
|
|
| 39 | M-231616 | Screw |
$2.11 |
|
|
| 42 | M-233600 | Screw |
$2.38 |
|
|
| 44 | M-670008301 | Clip |
$1.13 |
|
|
| 45 | M-675000556 | Screw |
$2.11 |
|
