Diagram image not available

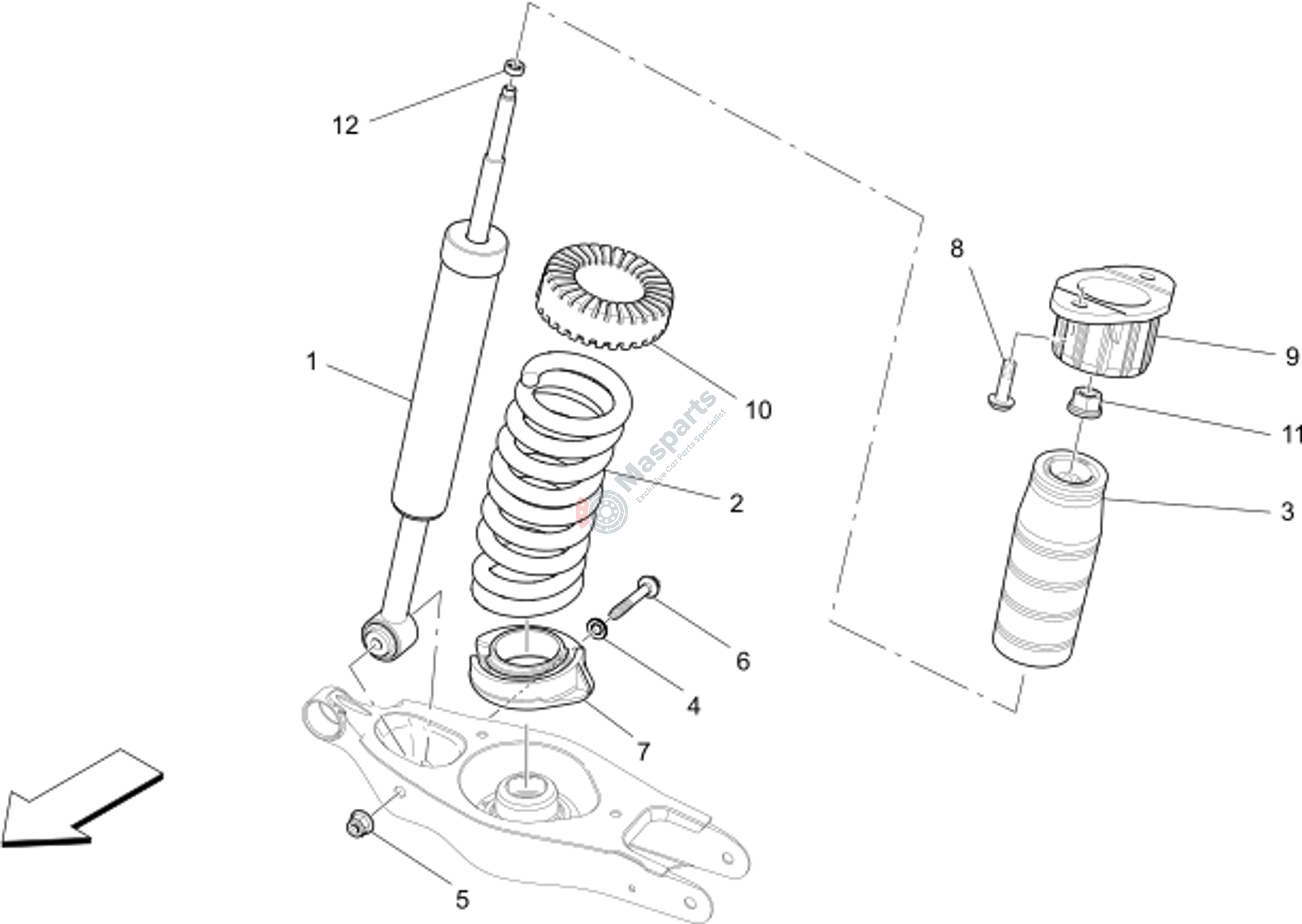

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670105403 | Rear Shock Absorber Damping |
$770.72 |
|
|
| 2 | M-673002079 | Rear Suspensions Springs Kit |
$221.12 |
|
|
| 4 | M-675000083 | Washer |
$1.91 |
|
|
| 5 | M-675000023 | Nut |
$1.40 |
|
|
| 6 | M-675000146 | Screw |
$5.85 |
|
|
| 7 | M-675000033 | Ring |
$36.45 |
|
|
| 8 | M-675000145 | Screw |
$4.09 |
|
|
| 9 | M-670301950 | Elastic Block Suspension |
$50.09 |
|
|
| 10 | M-675000216 | Ring |
$21.63 |
|
|
| 11 | M-670009802 | Nut With Washer |
$4.57 |
|
|
| 12 | M-670007685 | Spacer |
$40.67 |
|
