Diagram image not available

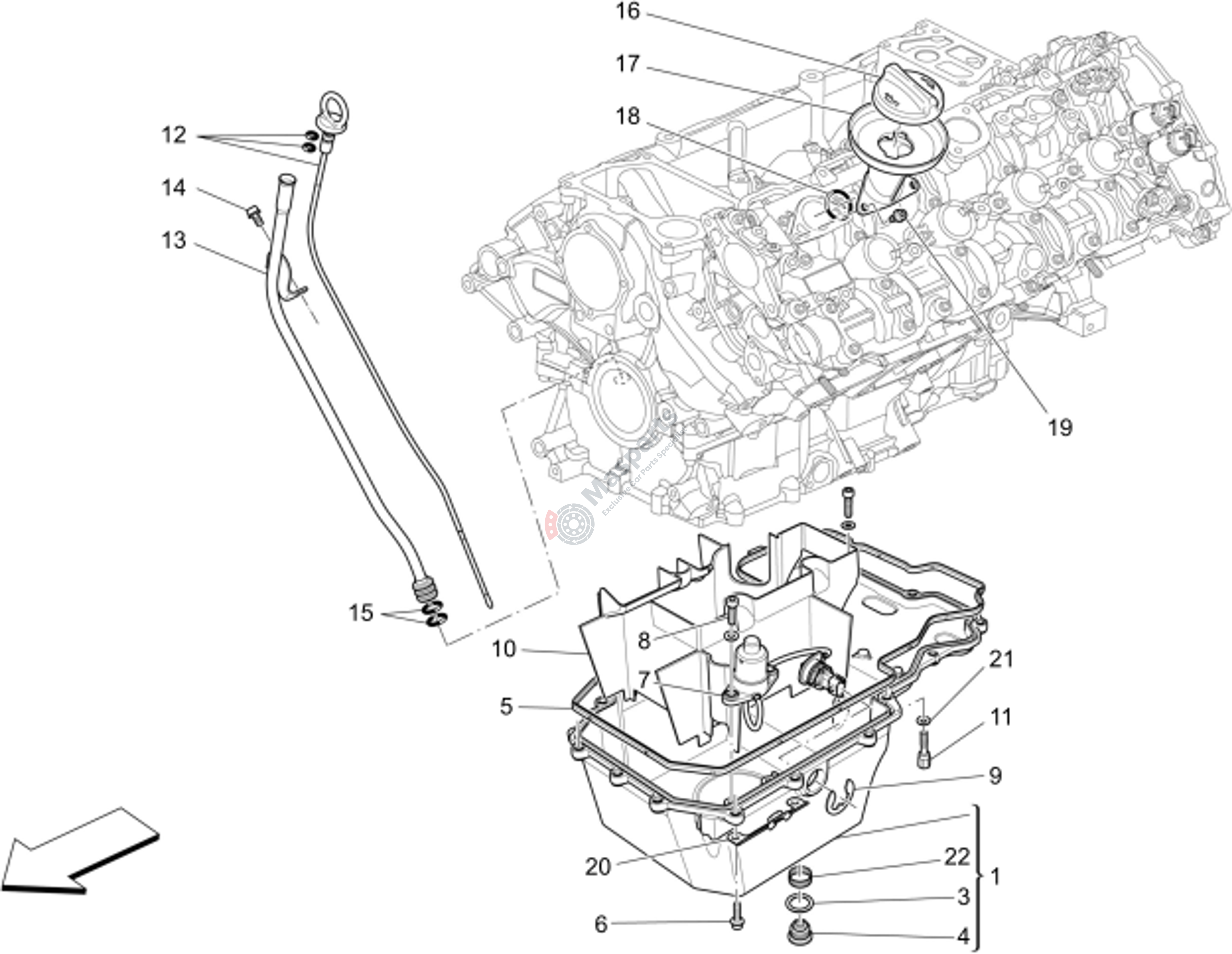

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-289921 | Cpl Oil Sump With Cap |
$989.30 |
|
|
| 3 | M-10261860 | Gasket 22- 30X 1.5 |
$1.11 |
|
|
| 4 | M-104280 | Threaded Plug M 22X1.5 |
$12.12 |
|
|
| 5 | M-301591 | Oil Pan Gasket |
$82.29 |
|
|
| 6 | M-231620 | Socket Head Screw With Washe |
$1.61 |
|
|
| 7 | M-230171 | Oil Level Sensor |
$63.56 |
|
|
| 8 | M-282396 | Screw |
$2.90 |
|
|
| 9 | M-16165276 | 3-Point Circlip D.19 |
$1.70 |
|
|
| 10 | M-271468 | Oil Sump Guard |
$213.32 |
|
|
| 11 | M-214412 | Stud M6X25(M) M6X10(F) H=14 |
$15.23 |
|
|
| 12 | M-301461 | Oil Dipstick (V8) |
$22.06 |
|
|
| 13 | M-297463 | Oil Dipstick Holder Extensio |
$40.28 |
|
|
| 14 | M-233600 | Screw |
$2.32 |
|
|
| 15 | M-282370 | O-Ring |
$2.42 |
|
|
| 16 | M-293205 | Engine Oil Filler Cap |
$31.05 |
|
|
| 17 | M-307944 | Oil Cap Extension |
$150.58 |
|
|
| 18 | M-14457881 | Gasket |
$2.28 |
|
|
| 19 | M-248334 | Screw |
$2.90 |
|
|
| 20 | M-277533 | Wiring Fixing Bracket. |
$11.37 |
|
|
| 21 | M-675000106 | Washer |
$1.61 |
|
|
| 22 | M-223577 | Threaded Fitting M22X1.5X11 |
$3.67 |
|
