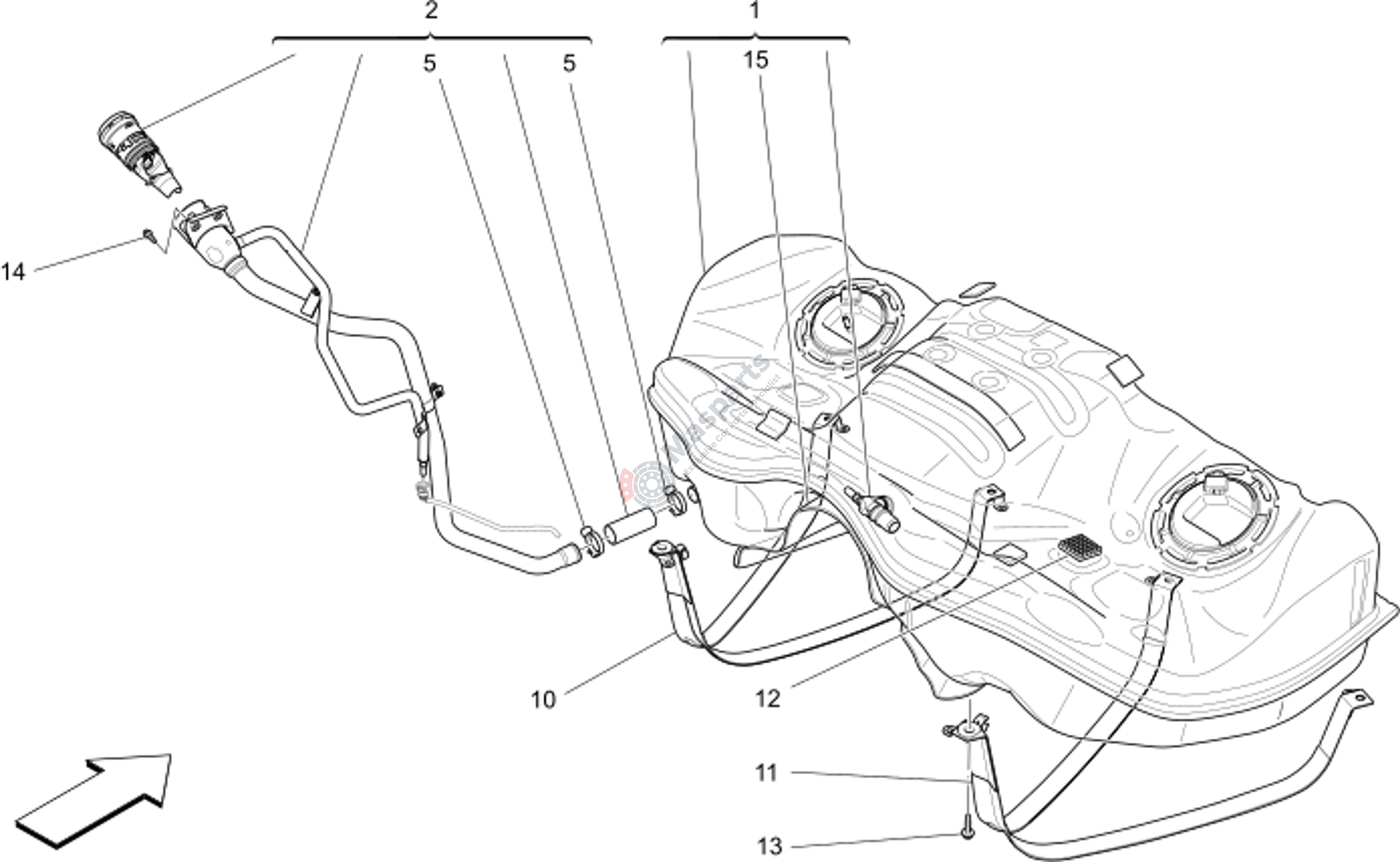

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670103704 | Fuel Tank |
$3,498.51 |
|
|
| 2 | M-673015725 | Filler Nek |
$264.33 |
|
|
| 5 | M-11417670 | Nemo Bes Fastening Collar D3 |
$9.78 |
|
|
| 10 | M-670007868 | Lh Fuel Tank Fastening Strap |
$104.71 |
|
|
| 12 | M-670003729 | Antivibration Bushing |
$5.54 |
|
|
| 13 | M-675000041 | Screw |
$1.69 |
|
|
| 14 | M-675000144 | Screw |
$2.66 |
|
