The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

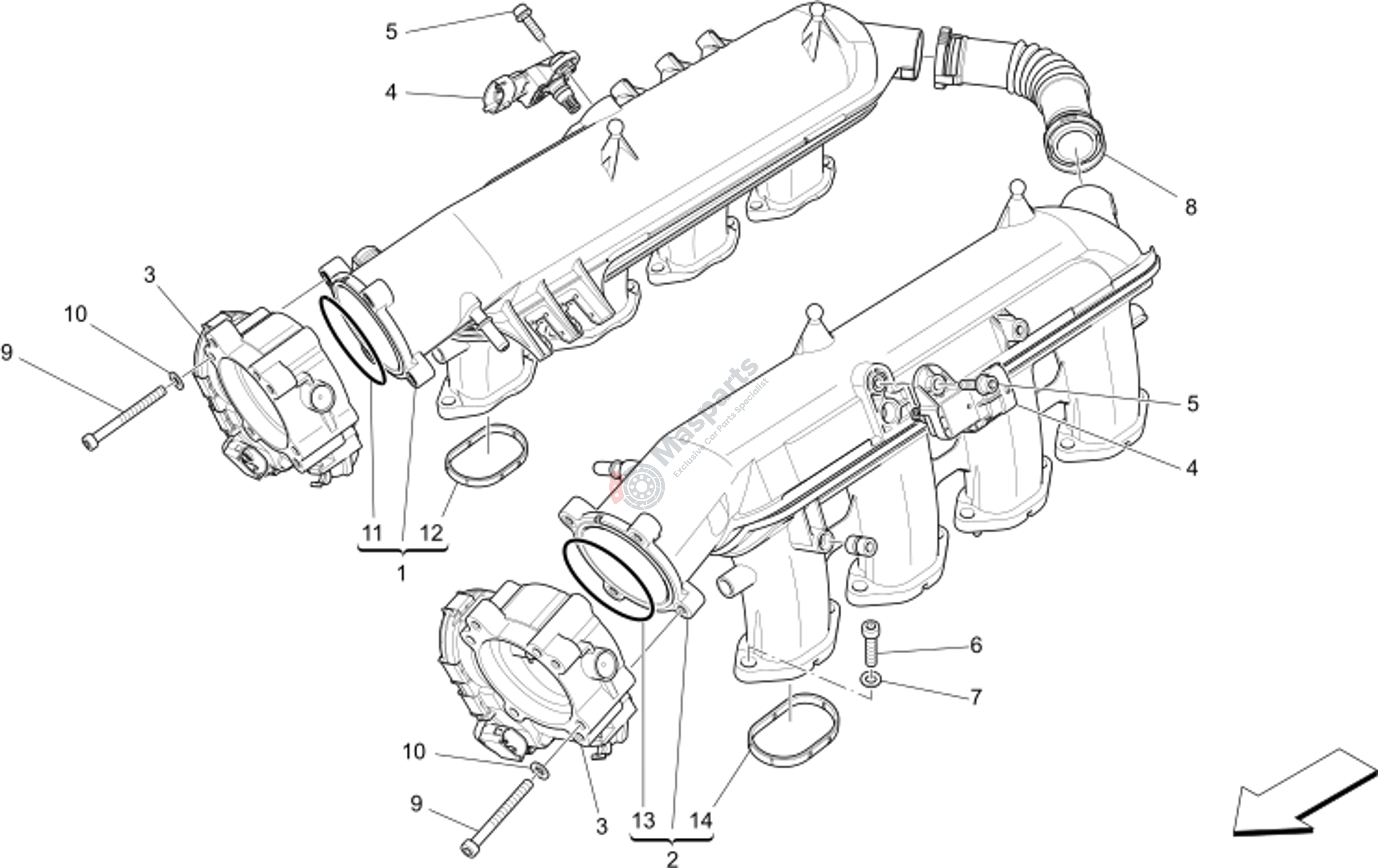

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-837180 | Rh Intake Manifold Assembly |
$340.81 |
|
|
| 2 | M-837181 | Lh Intake Manifold Assembly |
$340.81 |
|
|
| 3 | M-329967 | Throttle Body (V8) |
$318.22 |
|
|
| 4 | M-272880 | Pressure Sensor |
$45.00 |
|
|
| 5 | M-231619 | Socket Head Screw With Washe |
$2.46 |
|
|
| 6 | M-14305474 | Screw |
$1.56 |
|
|
| 7 | M-675000106 | Washer |
$1.64 |
|
|
| 8 | M-277295 | Compensation Central |
$44.47 |
|
|
| 9 | M-14309224 | Screw |
$2.89 |
|
|
| 10 | M-14499324 | Washer |
$1.20 |
|
|
| 11 | M-322327 | V8 Airbox Intake Manifold Co |
$36.45 |
|
|
| 12 | M-309025 | V8 Airbox Intake Manifold Ga |
$37.22 |
|
|
| 13 | M-322327 | V8 Airbox Intake Manifold Co |
$36.45 |
|
|
| 14 | M-309025 | V8 Airbox Intake Manifold Ga |
$37.22 |
|
