Diagram image not available

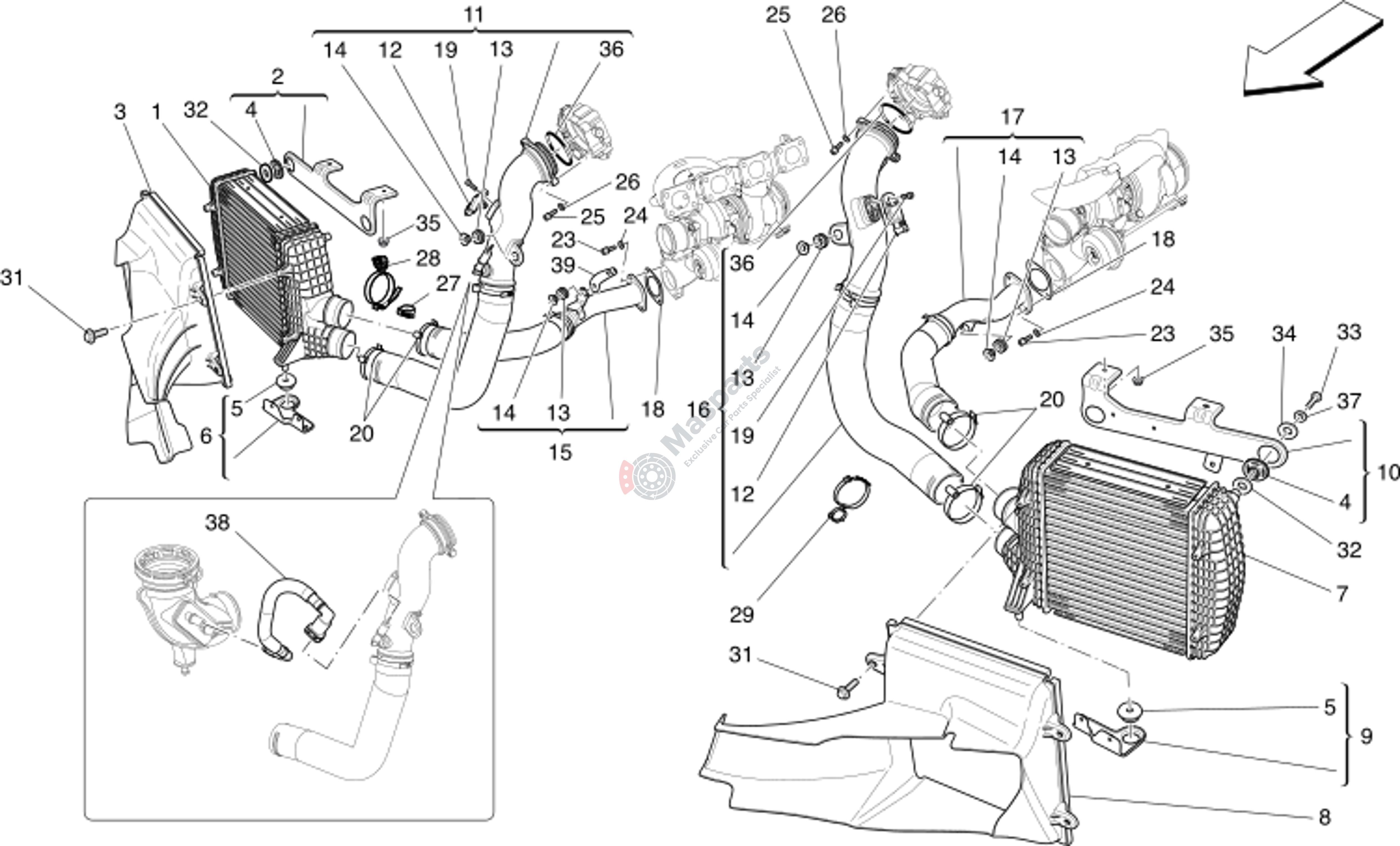

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670153433 | R.H. Intercooler |
€365,50 |
|
|
| 2 | M-670001349 | Ic Upper Rh Support Bracket |
€23,18 |
|
|
| 3 | M-670038774 | Rh Side Air Duct ˇ |
€51,85 |
|
|
| 4 | M-675000201 | Small Block. |
€7,91 |
|
|
| 5 | M-670009556 | Radiator Support Fastening B |
€2,61 |
|
|
| 6 | M-670037757 | Lower Intercooler Bracket |
€16,47 |
|
|
| 7 | M-670109553 | Lh Intercooler M161 V8 |
€365,50 |
|
|
| 8 | M-670038777 | Lh Side Air Duct ˇ |
€51,85 |
|
|
| 9 | M-670037759 | Intercooler Bracket |
€80,78 |
|
|
| 10 | M-670001348 | Ic Upper Lh Support Bracket |
€29,44 |
|
|
| 11 | M-670153432 | Pipe From Intercooler To Int |
€225,25 |
|
|
| 12 | M-675000014 | Pressure Sensor |
€103,20 |
|
|
| 13 | M-675000016 | Rubber Bushing |
€4,88 |
|
|
| 14 | M-675000017 | Spacer |
€6,90 |
|
|
| 15 | M-670155084 | Sleeve From Turbine To Inter |
€272,85 |
|
|
| 16 | M-670002112 | Cpl. Intake Manifold Lh Air |
€256,70 |
|
|
| 17 | M-670103757 | Sleeve |
€145,35 |
|
|
| 18 | M-670006209 | Gasket For Air Delivery Pipe |
€14,08 |
|
|
| 19 | M-675000190 | Screw |
€2,49 |
|
|
| 20 | M-675000685 | Collar |
€6,44 |
|
|
| 23 | M-675000375 | Screw |
€0,63 |
|
|
| 24 | M-675000106 | Washer |
€1,38 |
|
|
| 25 | M-675000376 | Screw |
€1,17 |
|
|
| 26 | M-675000367 | Washer |
€1,51 |
|
|
| 27 | M-670007020 | Retaining Clip |
€1,46 |
|
|
| 28 | M-670006982 | Retaining Clip |
€2,61 |
|
|
| 29 | M-670005919 | Retaining Clip |
€3,13 |
|
|
| 31 | M-675000354 | Screw |
€2,29 |
|
|
| 32 | M-670007293 | Spacer |
€2,61 |
|
|
| 33 | M-10902024 | Hex Head Screw M 6X 12 |
€1,08 |
|
|
| 34 | M-675000409 | Washer |
€2,09 |
|
|
| 35 | M-14059214 | Nut |
€1,08 |
|
|
| 36 | M-14464786 | O-Ring |
€29,07 |
|
|
| 37 | M-675000718 | Washer |
€1,89 |
|
|
| 38 | M-670153398 | Pipe |
€36,81 |
|
|
| 39 | M-670153392 | Bracket |
€10,40 |
|
