Diagram image not available

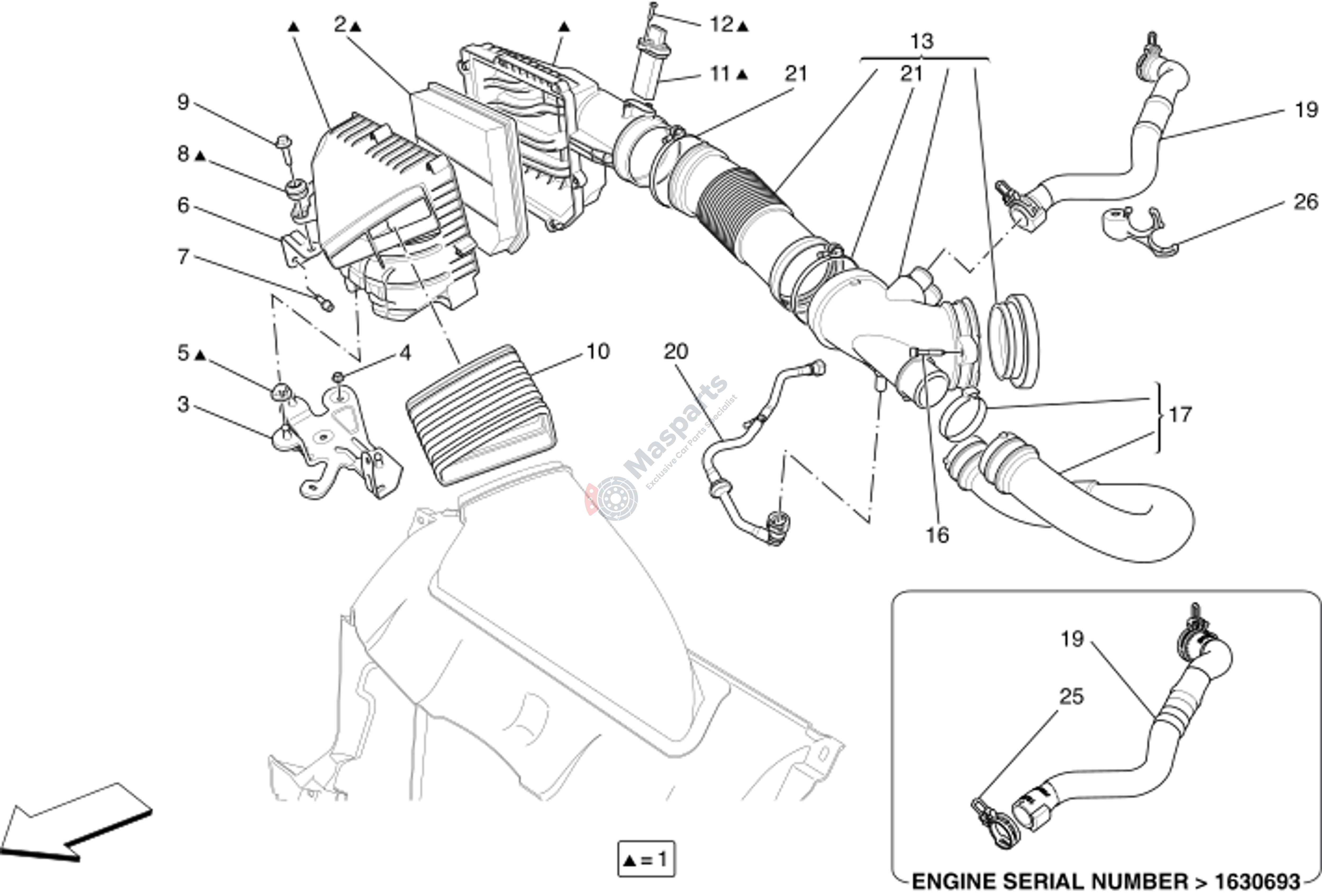

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670173310 | Air Filter Box Assembly |
$389.40 |
|
|
| 2 | M-670154626 | Air Filter |
$60.76 |
|
|
| 3 | M-670154619 | Bracket |
$22.09 |
|
|
| 4 | M-675000182 | Nut |
$1.14 |
|
|
| 5 | M-670181247 | Rubber Pad |
$2.25 |
|
|
| 6 | M-670159199 | Bracket |
$16.04 |
|
|
| 7 | M-675000104 | Screw |
$1.60 |
|
|
| 8 | M-675000284 | Flexible Pad |
$10.83 |
|
|
| 9 | M-675001078 | Screw |
$2.01 |
|
|
| 10 | M-670154641 | Air Inlet Sleeve |
$60.46 |
|
|
| 11 | M-670156109 | Flowmeter |
$250.63 |
|
|
| 12 | M-675001116 | Screw |
$0.79 |
|
|
| 13 | M-670293521 | Clean Air Intake Sleeve |
$170.43 |
|
|
| 16 | M-675001118 | Screw |
$1.10 |
|
|
| 17 | M-670154945 | E-Booster Air Intake Sleeve |
$73.60 |
|
|
| 19 | M-670053090 | Flexible Pipe |
$93.14 |
|
|
| 20 | M-670154517 | Pipe |
$82.58 |
|
|
| 21 | M-675000501 | Collar |
$4.72 |
|
|
| 25 | M-675001954 | Collar |
$3.38 |
|
|
| 26 | M-670053111 | Clip |
$1.79 |
|
