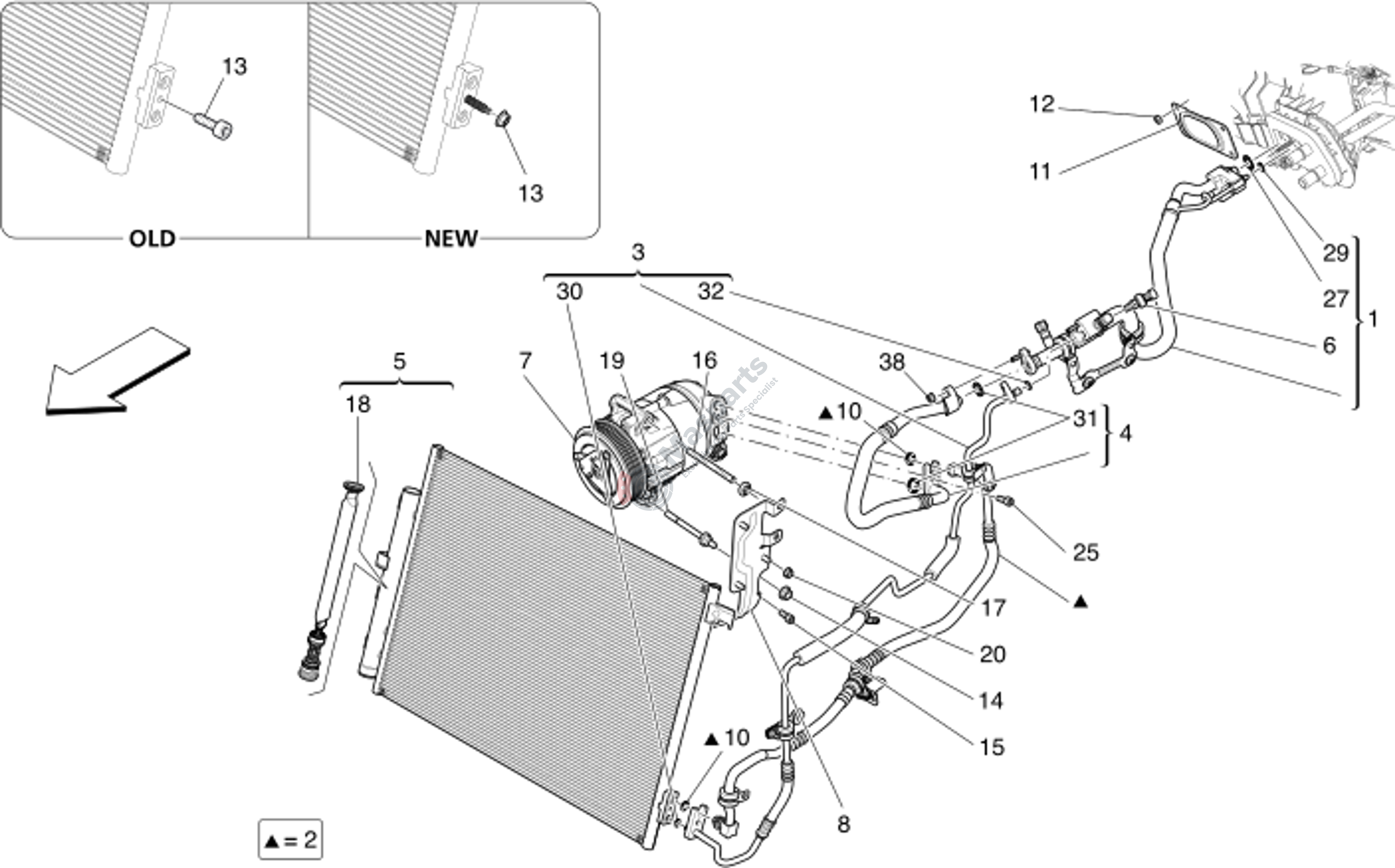

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154985 | Pipe From Evapourator To Uni |
€330,65 |
|
|
| 2 | M-670154981 | Pipe Ac - Compressor |
€109,65 |
|
|
| 3 | M-670154983 | Pipe Between Condenser And J |
€96,90 |
|
|
| 4 | M-670154978 | Pipe From Compressor To Unio |
€104,55 |
|
|
| 5 | M-670296020 | Ac Condenser |
€686,80 |
|
|
| 6 | M-670038668 | Pressostat |
€51,60 |
|
|
| 7 | M-675001009 | Ac Compressor |
€207,40 |
|
|
| 8 | M-670154500 | Timing Belt Cover |
€12,33 |
|
|
| 10 | M-675000122 | O-Ring 1/2 - 1234Yf |
€6,62 |
|
|
| 11 | M-670005087 | Plug |
€16,01 |
|
|
| 12 | M-675000315 | Nut |
€1,51 |
|
|
| 13 | M-675000456 | Screw |
€3,99 |
|
|
| 14 | M-675001096 | Nut |
€0,60 |
|
|
| 16 | M-675000902 | Threaded Stud |
€2,39 |
|
|
| 17 | M-675001090 | Nut |
€0,91 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
€203,15 |
|
|
| 19 | M-675001019 | Screw |
€2,13 |
|
|
| 20 | M-675000969 | Nut |
€0,83 |
|
|
| 25 | M-675000249 | Screw |
€1,20 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
€6,99 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
€5,24 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
€5,24 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
€6,99 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
€1,67 |
|
|
| 38 | M-675000315 | Nut |
€1,51 |
|
