Diagram image not available

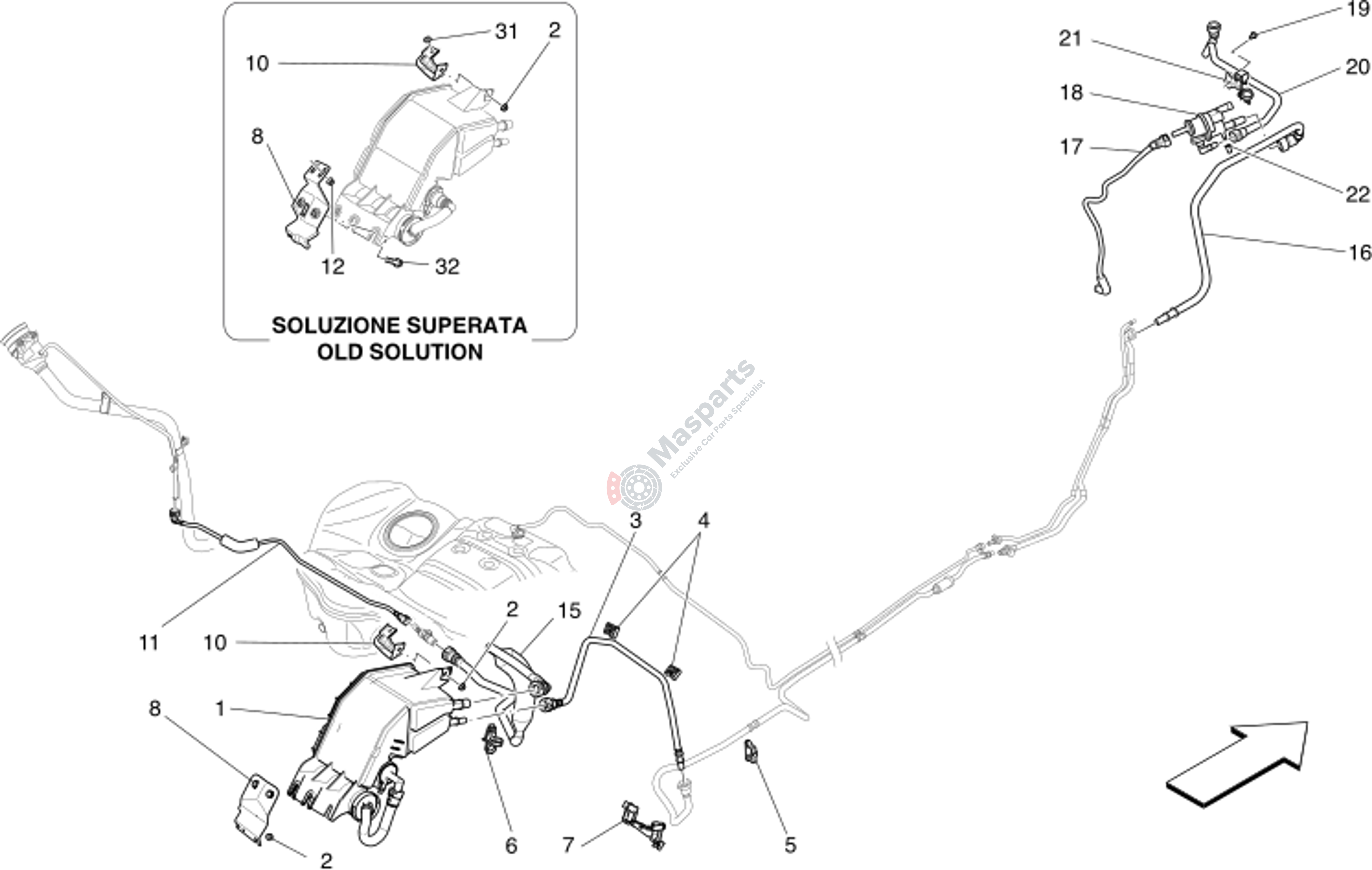

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102642 | Fuel Vapour Filter |
$183.60 |
|
|
| 2 | M-675000095 | Nut |
$0.79 |
|
|
| 3 | M-670105545 | Fuel Vapour Pipe |
$28.65 |
|
|
| 4 | M-670033289 | Pipe Clip |
$3.13 |
|
|
| 5 | M-675000790 | Clip |
$1.29 |
|
|
| 6 | M-670154600 | Bracket |
$3.14 |
|
|
| 7 | M-670106064 | Clip |
$3.26 |
|
|
| 10 | M-670036933 | Canister Bracket |
$25.58 |
|
|
| 11 | M-670005215 | Flex.Hose |
$28.94 |
|
|
| 15 | M-670154613 | Vent Pipe |
$93.76 |
|
|
| 16 | M-670155397 | Tube Fuel Vapor |
$34.53 |
|
|
| 17 | M-675000981 | Flexible Pipe |
$195.20 |
|
|
| 18 | M-675000977 | Spurge Valve |
$198.17 |
|
|
| 19 | M-675000172 | Screw |
$1.03 |
|
|
| 20 | M-670154516 | Pipe |
$42.95 |
|
|
| 21 | M-670154518 | Bracket |
$10.39 |
|
|
| 22 | M-675000982 | Plug |
$14.12 |
|
