Diagram image not available

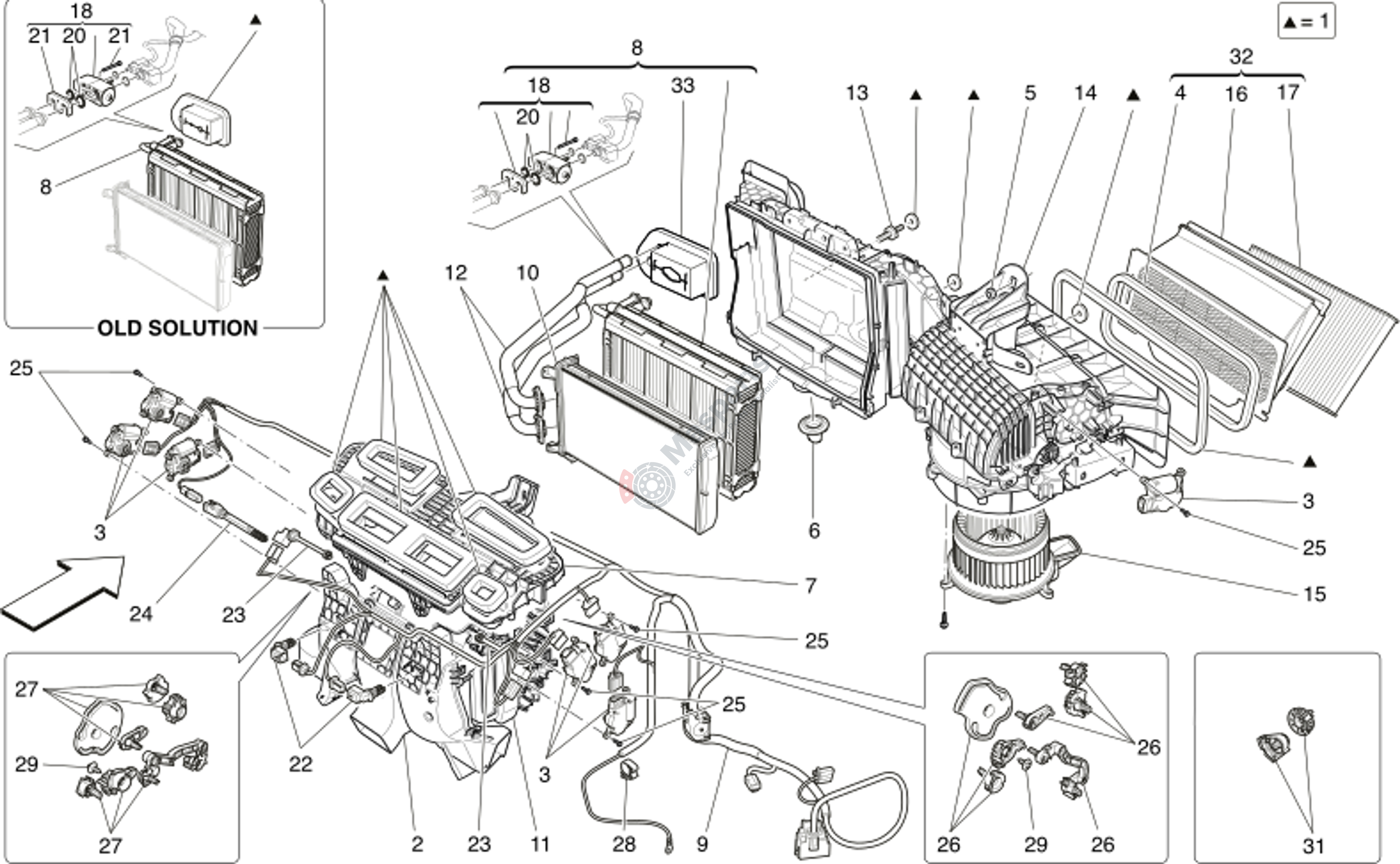

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009607 | Sealings Kit M156/7 Lhd |
€40,66 |
|
|
| 2 | M-673009330 | Air Duct |
€66,05 |
|
|
| 3 | M-670104418 | Actuator |
€55,08 |
|
|
| 4 | M-670007353 | Gasket |
€26,22 |
|
|
| 5 | M-675000093 | Nut |
€1,25 |
|
|
| 6 | M-675000425 | Condensation Outlet Hose |
€15,13 |
|
|
| 7 | M-673009329 | Air Duct |
€71,49 |
|
|
| 8 | M-673013159 | Lhd Evaporator |
€85,00 |
|
|
| 9 | M-673009320 | Wiring Harness |
€179,74 |
|
|
| 10 | M-673009324 | Heater |
€122,40 |
|
|
| 11 | M-673009317 | Central Body Hvac Gasoline |
€265,20 |
|
|
| 12 | M-673009325 | Heater Hose Kit |
€79,99 |
|
|
| 13 | M-673009338 | Pin |
€14,63 |
|
|
| 14 | M-673009318 | Air Inlet Module Lhd |
€306,36 |
|
|
| 15 | M-673009319 | Electrofan Gsx |
€383,56 |
|
|
| 16 | M-670005020 | Air Conditioner Box |
€27,20 |
|
|
| 17 | M-670005021 | Pollen Filter |
€47,10 |
|
|
| 18 | M-673009322 | Txv Kit |
€182,16 |
|
|
| 20 | M-673009339 | Gasket Kit |
€39,65 |
|
|
| 21 | M-673009336 | Txv Fixing Kit |
€12,42 |
|
|
| 22 | M-673009333 | Air Temp. Floor Sensor |
€30,19 |
|
|
| 23 | M-673009332 | Air Temp. Vent Sensor |
€25,71 |
|
|
| 24 | M-673009331 | Evapourator Sensor |
€39,90 |
|
|
| 25 | M-673009334 | Screw |
€6,26 |
|
|
| 26 | M-673009326 | Kit Right Side Mix/Mode Kine |
€20,91 |
|
|
| 27 | M-673009327 | Kit Left Side Mix/Mode Kinem |
€20,91 |
|
|
| 28 | M-673009337 | Retaining Clip |
€15,00 |
|
|
| 29 | M-673009335 | Screw |
€11,59 |
|
|
| 31 | M-673009328 | Kit Air Inlet/Rec Kinematics |
€16,58 |
|
|
| 32 | M-670004016 | Air Conditioner Box With Pol |
€74,21 |
|
|
| 33 | M-673014092 | Sealings Set |
€33,49 |
|
