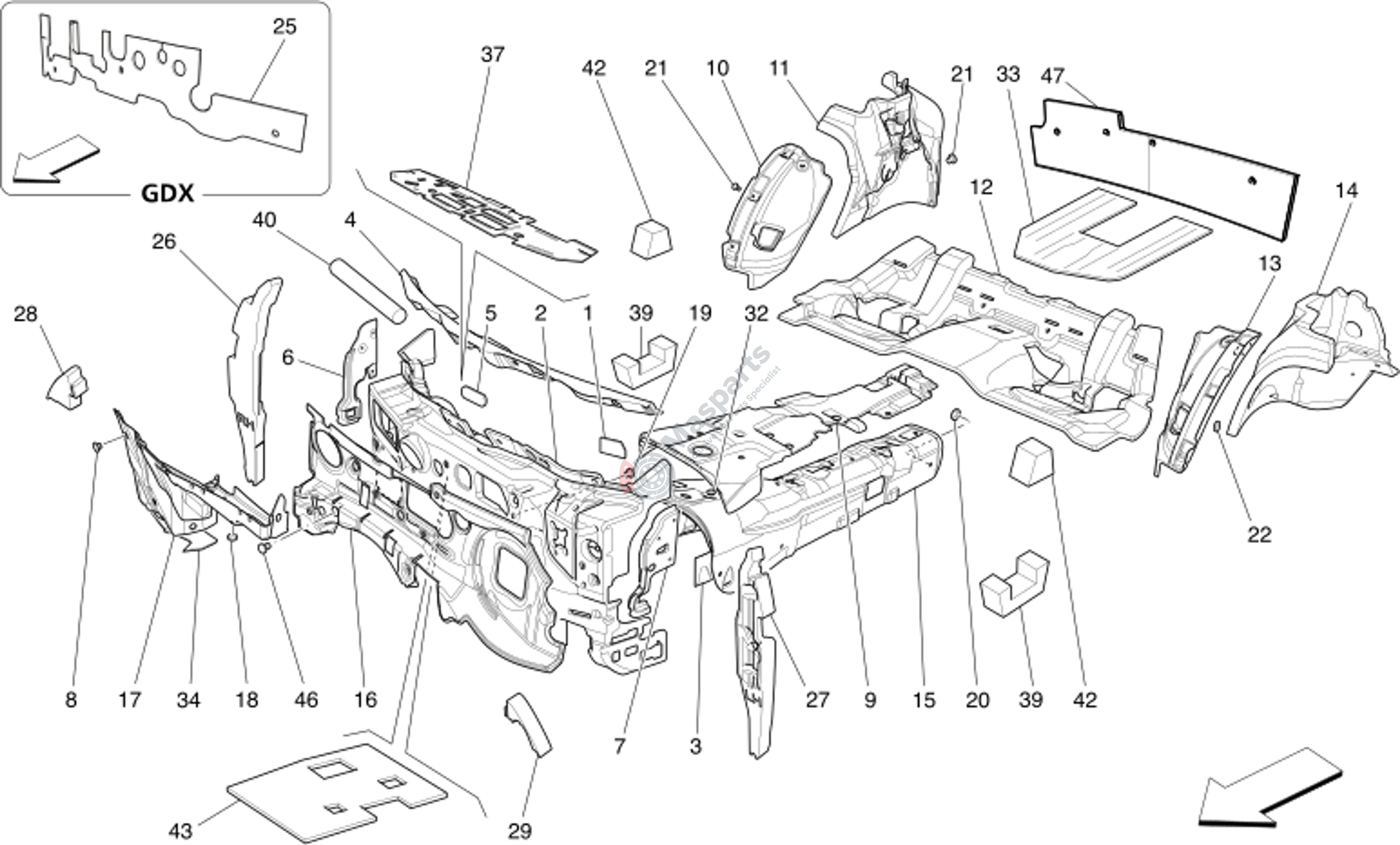

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000151 | Seal Plug |
$1.72 |
|
|
| 2 | M-670105244 | Insulation |
$224.31 |
|
|
| 3 | M-670001856 | Soundproofing |
$3.68 |
|
|
| 5 | M-675000417 | Oval Protection Sheet 48X140 |
$7.18 |
|
|
| 9 | M-670037073 | Central Insulation |
$42.84 |
|
|
| 10 | M-670037434 | Front Part Of Rear Rh Wheelh |
$20.09 |
|
|
| 11 | M-670038084 | Rear Part Of Rear Rh Wheelho |
$22.54 |
|
|
| 12 | M-670108268 | Insulation |
$48.69 |
|
|
| 13 | M-670037435 | Front Part Of Rear Lh Wheelh |
$20.09 |
|
|
| 14 | M-670155007 | Rear Lh Wheelhouse Insulatio |
$23.44 |
|
|
| 15 | M-670155008 | Ext. Tunnel Soundproofing Gu |
$56.24 |
|
|
| 16 | M-670001780 | Engine Compartment Insulatio |
$26.50 |
|
|
| 18 | M-675000453 | Plate |
$1.67 |
|
|
| 20 | M-675000411 | Washer |
$3.71 |
|
|
| 22 | M-675000424 | Plug |
$8.77 |
|
|
| 32 | M-675000679 | Sealing Plug 22Mm |
$10.61 |
|
|
| 33 | M-670156325 | Soundproofing Panel |
$9.15 |
|
|
| 39 | M-670037611 | Insulation Pad |
$8.88 |
|
|
| 40 | M-670100306 | Lh Side Dashboard Insulation |
$9.57 |
|
|
| 42 | M-670037614 | Upper Insulation Pad |
$7.63 |
|
|
| 43 | M-670172653 | Floor Insulation Pad |
$11.91 |
|
|
| 47 | M-670156042 | Rear Soundproofing Guard |
$22.72 |
|
