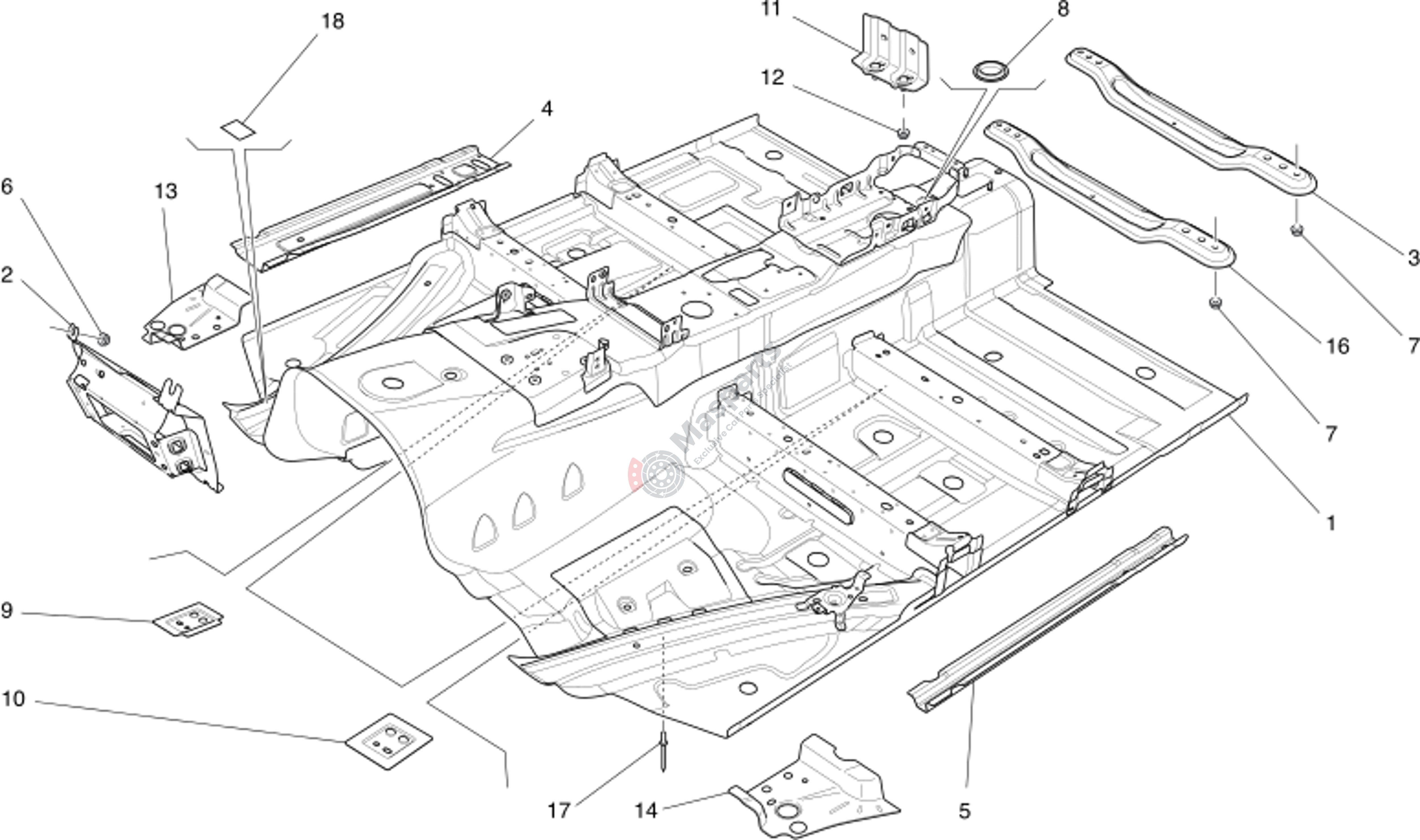

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009739 | Front Floor M157 |
$3,210.59 |
|
|
| 3 | M-670006640 | Underfloor Tunnel Rear Reinf |
$90.13 |
|
|
| 4 | M-673001720 | Rh Underfloor Small Side Mem |
$59.65 |
|
|
| 5 | M-673001721 | Lh Underfloor Small Side Mem |
$47.45 |
|
|
| 6 | M-675000412 | Hex Nut |
$1.24 |
|
|
| 8 | M-670006214 | Sticker Cap |
$2.49 |
|
|
| 9 | M-670003751 | Rh Plate |
$51.32 |
|
|
| 10 | M-670003900 | Lh Plate |
$51.64 |
|
|
| 11 | M-673004077 | Underfloor Bracket Rear Tunn |
$192.97 |
|
|
| 13 | M-670031919 | Reinforcement Dx |
$14.54 |
|
|
| 14 | M-670031920 | Reinforcement Dx |
$14.54 |
|
|
| 16 | M-670031638 | Underfloor Tunnel Front Rein |
$59.21 |
|
|
| 17 | M-670037283 | Rivet |
$5.03 |
|
|
| 18 | M-675000789 | Protective Film |
$2.87 |
|
