Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

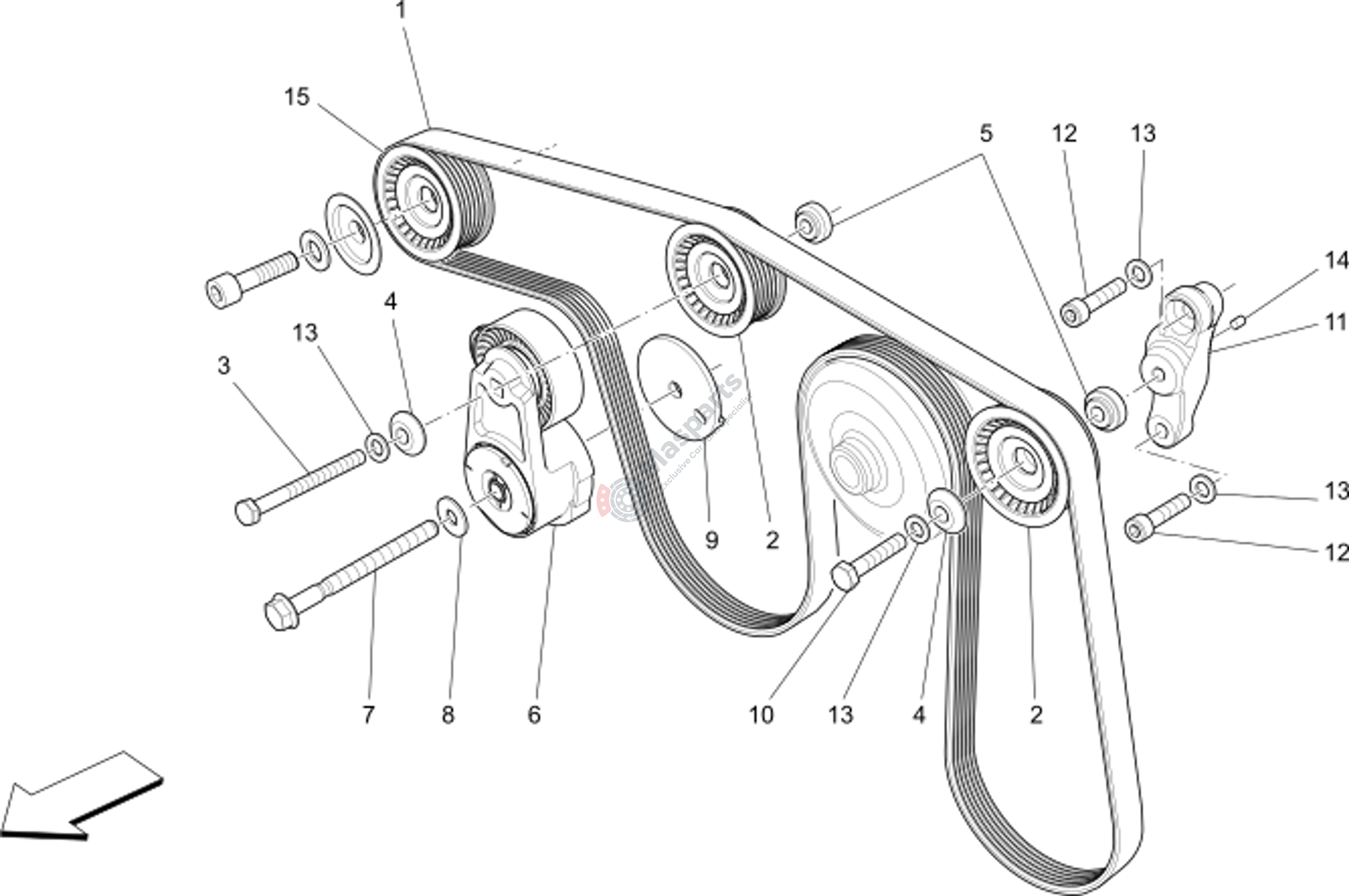

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-771134 | Compressor Driving Belt |
$46.51 |
|
|
| 2 | M-278950 | Belt Tightening Pulley |
$44.27 |
|
|
| 3 | M-16045024 | Screw M8X90 |
$1.69 |
|
|
| 4 | M-278939 | Washer |
$9.26 |
|
|
| 5 | M-290823 | Bushing |
$11.89 |
|
|
| 6 | M-278940 | Belt Stretcher |
$132.29 |
|
|
| 7 | M-296171 | Screw M10X1.5X110 |
$24.19 |
|
|
| 8 | M-12646824 | Washer |
$1.67 |
|
|
| 9 | M-290822 | Shim |
$204.64 |
|
|
| 10 | M-16044024 | Screw M8X40 |
$1.33 |
|
|
| 11 | M-290824 | Belt Tightening Pulley Suppo |
$24.57 |
|
|
| 12 | M-14306624 | Screw For Power Steering |
$2.03 |
|
|
| 13 | M-11198074 | Tapered Rubber Washer D8.5-1 |
$1.33 |
|
|
| 14 | M-175611 | Centering Dowel |
$3.61 |
|
|
| 15 | M-278950 | Belt Tightening Pulley |
$44.27 |
|
