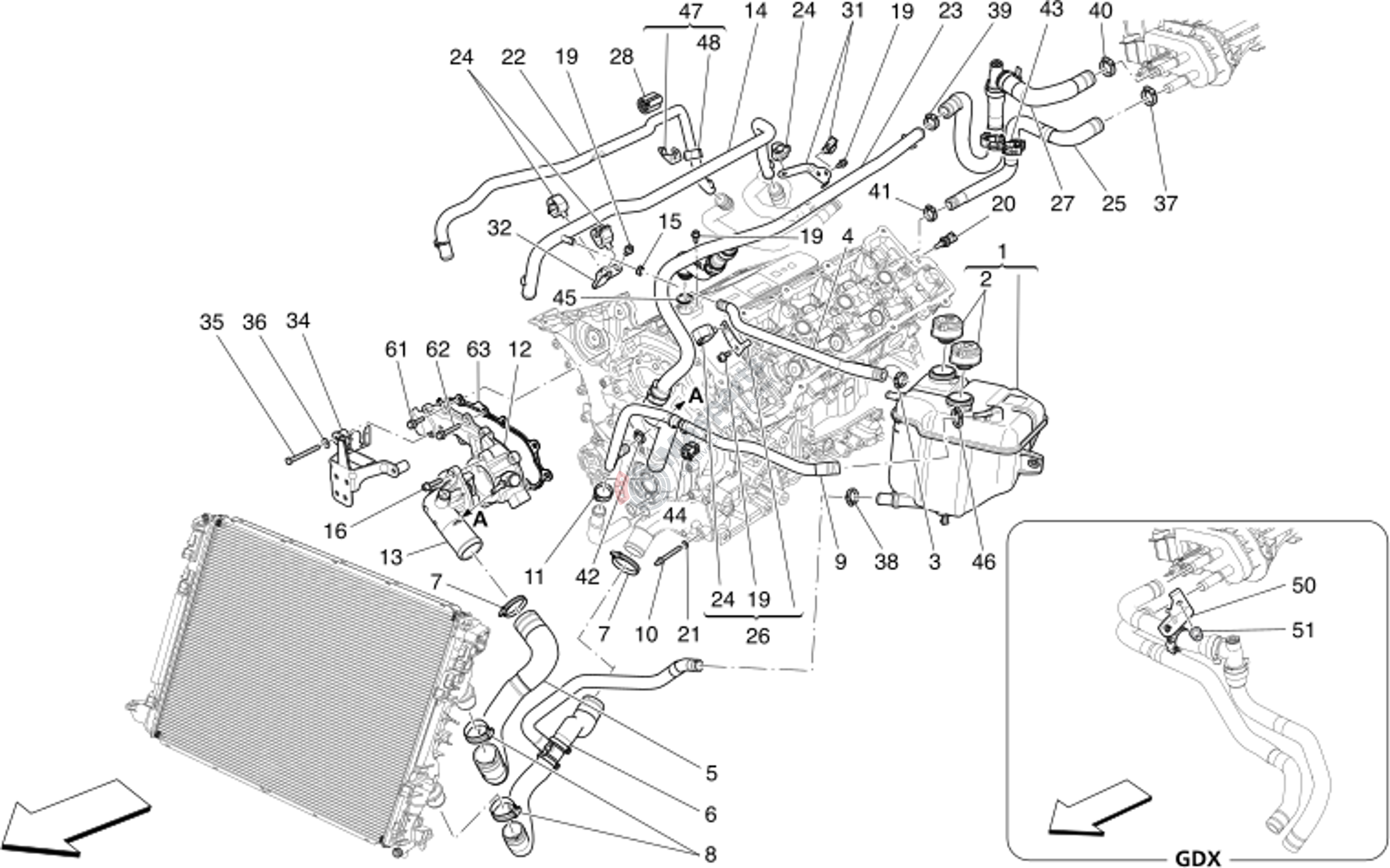

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031651 | Reservoir Assy Engine Coolan |
€71,40 |
||
| 2 | M-670003408 | Mount Plug |
€10,82 |
||
| 3 | M-675000344 | Strap Collar |
€1,84 |
||
| 4 | M-670003615 | Engine Vent Pipe |
€16,52 |
||
| 5 | M-670031866 | Radiator Water Inlet Pipe |
€37,94 |
||
| 6 | M-670155231 | Water Outlet Sleeve |
€82,81 |
||
| 7 | M-675000345 | Screw Collar |
€2,70 |
||
| 7 | M-675000345 | Screw Collar |
€2,70 |
||
| 8 | M-675000345 | Screw Collar |
€2,70 |
||
| 9 | M-670003613 | Engine Vent Pipe |
€59,36 |
||
| 10 | M-227281 | Stud |
€14,19 |
||
| 11 | M-262109 | Clamp |
€1,84 |
||
| 13 | M-330424 | Cpl Thermostat |
€76,90 |
||
| 14 | M-882497 | Water Secondary Pipe |
€39,63 |
||
| 15 | M-675000373 | Strap Collar |
€1,42 |
||
| 16 | M-231620 | Socket Head Screw With Washe |
€1,29 |
||
| 19 | M-231616 | Screw |
€1,65 |
||
| 19 | M-231616 | Screw |
€1,65 |
||
| 19 | M-231616 | Screw |
€1,65 |
||
| 19 | M-231616 | Screw |
€1,65 |
||
| 20 | M-180137 | Water Temperature Sensor |
€34,41 |
||
| 21 | M-675000106 | Washer |
€1,17 |
||
| 22 | M-296492 | Secondary Water Pipe |
€44,72 |
||
| 23 | M-333706 | H2O Hose From Radiator |
€208,66 |
||
| 24 | M-259508 | Clip |
€1,35 |
||
| 24 | M-259508 | Clip |
€1,35 |
||
| 24 | M-259508 | Clip |
€1,35 |
||
| 25 | M-670106757 | Water Hose To Heater (Awd2-Z |
€28,57 |
||
| 26 | M-292354 | Cpl Pipe Support Bracket |
€14,78 |
||
| 27 | M-670106759 | Sleeve |
€65,59 |
||
| 28 | M-298362 | Rubber |
€5,22 |
||
| 31 | M-300867 | Bracket |
€30,43 |
||
| 32 | M-287986 | Bracket |
€70,43 |
||
| 34 | M-834094 | Bracket |
€53,04 |
||
| 35 | M-10903424 | Screw |
€1,93 |
||
| 36 | M-14498824 | Washer. |
€1,35 |
||
| 37 | M-675000334 | Collar Clip |
€1,93 |
||
| 38 | M-675000658 | Snap Collar |
€6,76 |
||
| 39 | M-675000352 | Hose Elastic Collar |
€2,53 |
||
| 40 | M-675000334 | Collar Clip |
€1,93 |
||
| 41 | M-675000370 | Strap Collar |
€1,55 |
||
| 42 | M-675000368 | Strap Collar |
€1,38 |
||
| 43 | M-670005922 | Heating Water Pipe Retaining |
€2,42 |
||
| 44 | M-675000019 | Pipe Retaining Clip |
€0,85 |
||
| 45 | M-282370 | O-Ring |
€1,93 |
||
| 46 | M-675000344 | Strap Collar |
€1,84 |
||
| 47 | M-302126 | Bracket Cpl. |
€7,44 |
||
| 48 | M-259508 | Clip |
€1,35 |
||
| 50 | M-670005450 | Bracket |
€5,02 |
||
| 61 | M-291776 | Screw |
€3,09 |
||
| 62 | M-291771 | Screw |
€15,56 |
||
| 63 | M-280912 | Gasket (Crossover) |
€9,95 |
