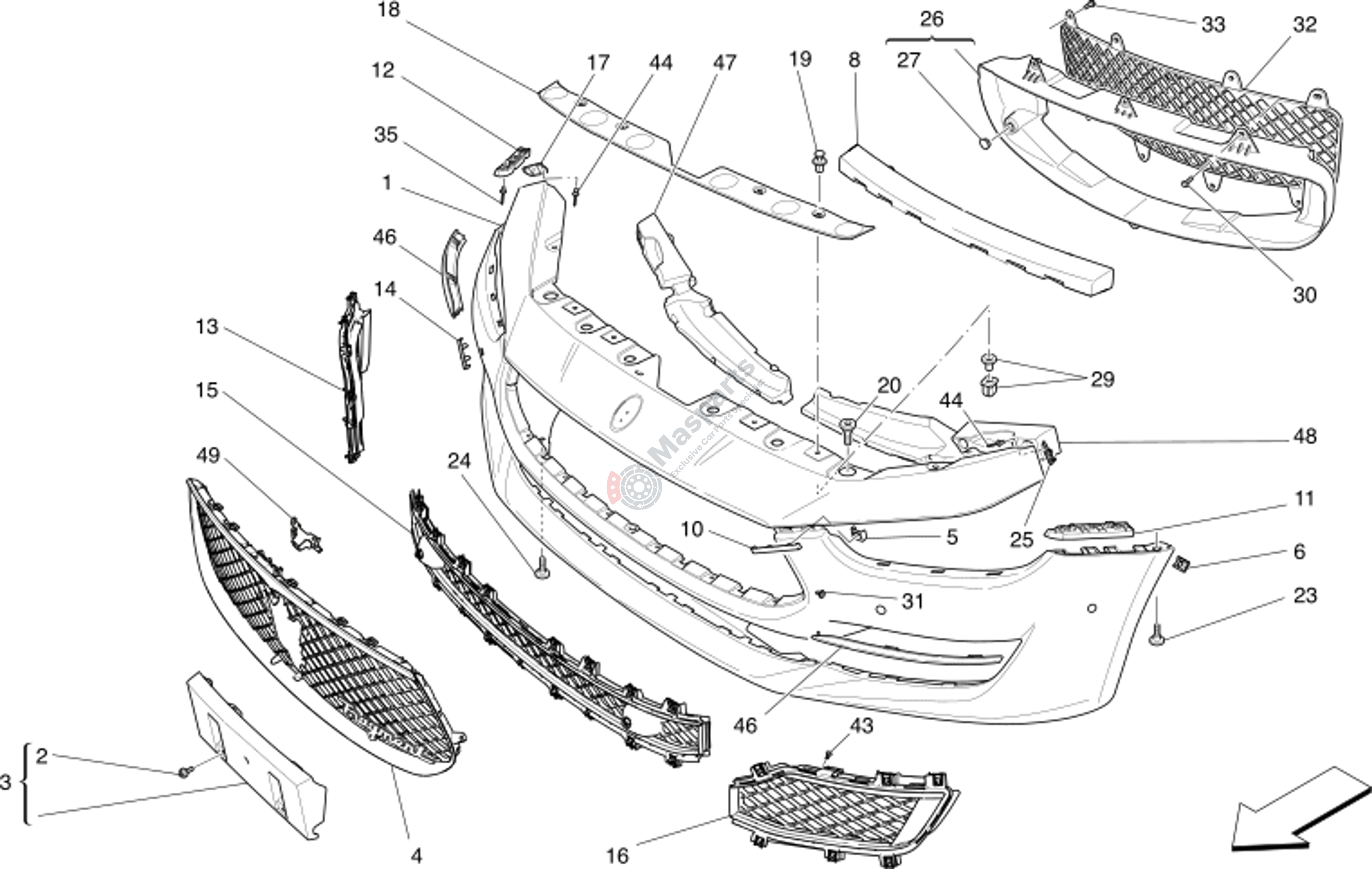

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000228 | Screw |
$2.31 |
|
|
| 5 | M-675000337 | Retaining Clip |
$4.12 |
|
|
| 6 | M-675000192 | Bracket |
$1.27 |
|
|
| 8 | M-670101003 | Upper Central Absorber |
$84.08 |
|
|
| 11 | M-670004830 | Lh. Front Bumper Bracket |
$27.14 |
|
|
| 12 | M-670004829 | Rh. Front Bumper Bracket |
$29.14 |
|
|
| 17 | M-670004442 | R.H. Lateral Bracket |
$27.14 |
|
|
| 19 | M-670014562 | Fixing Button. |
$3.11 |
|
|
| 20 | M-670003766 | Screw |
$5.08 |
|
|
| 23 | M-675000057 | Screw |
$2.39 |
|
|
| 24 | M-670034505 | Special Screw |
$2.57 |
|
|
| 25 | M-670004458 | L.H. Lateral Bracket |
$28.92 |
|
|
| 26 | M-670214504 | Modular Air Duct Assembly |
$104.04 |
|
|
| 27 | M-670009832 | Towing Hook Cap |
$19.63 |
|
|
| 29 | M-670005535 | Block |
$7.61 |
|
|
| 30 | M-675000077 | Screw |
$2.36 |
|
|
| 31 | M-670100901 | Button |
$6.31 |
|
|
| 32 | M-670172874 | Grill |
$60.45 |
|
|
| 33 | M-675000104 | Screw |
$1.60 |
|
|
| 35 | M-675000323 | Rivet |
$1.90 |
|
|
| 43 | M-675000332 | Screw |
$7.29 |
|
|
| 44 | M-675000531 | Rivet |
$1.76 |
|
|
| 47 | M-670213993 | Rh Front Lower Bumper Absorb |
$604.42 |
|
|
| 48 | M-670213995 | Lh Front Lower Bumper Absorb |
$604.42 |
|
