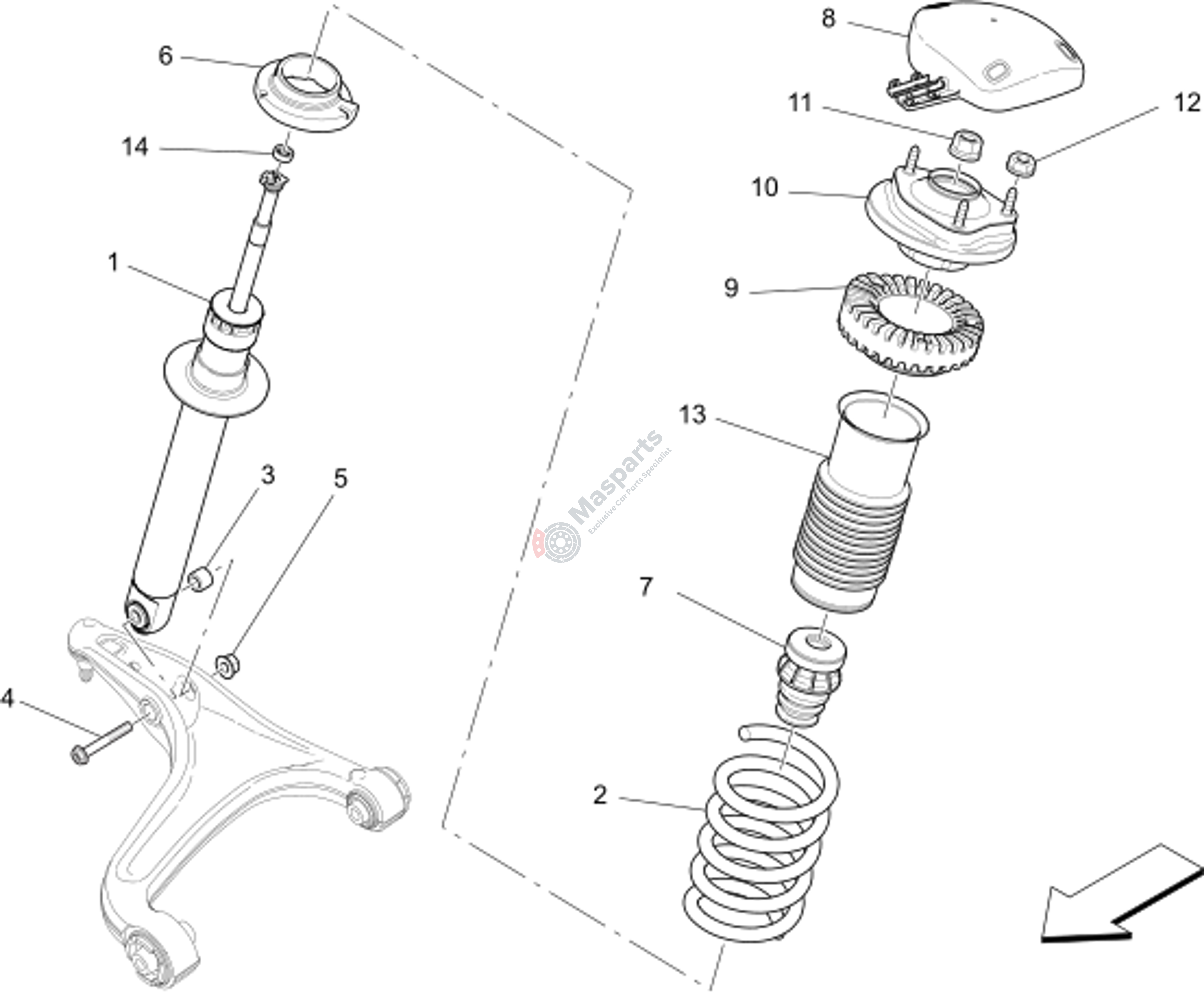

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670153412 | Complete Front Shock Absorber |
$414.58 |
|
|
| 2 | M-673011248 | Suspencion Spring Kit |
$189.79 |
|
|
| 3 | M-670002891 | Lh Shock Absorber Special Si |
$6.58 |
|
|
| 4 | M-670002889 | Pin M14X102 |
$25.47 |
|
|
| 5 | M-670002854 | Special Nut M14X2 |
$2.09 |
|
|
| 6 | M-675000035 | Ring |
$21.58 |
|
|
| 7 | M-670034347 | Front End-Stop (No Sky-Hook) |
$33.29 |
|
|
| 8 | M-670007598 | Rh Shock Abs. Upper Cup |
$8.10 |
|
|
| 9 | M-675000034 | Ring |
$36.36 |
|
|
| 10 | M-670034710 | Elastic Pad |
$108.15 |
|
|
| 11 | M-670009802 | Nut With Washer |
$4.56 |
|
|
| 12 | M-675000517 | Special Nut (M8X1.25) |
$1.93 |
|
|
| 13 | M-675000520 | Sleeve |
$8.10 |
|
|
| 14 | M-670007685 | Spacer |
$40.57 |
|
