Diagram image not available

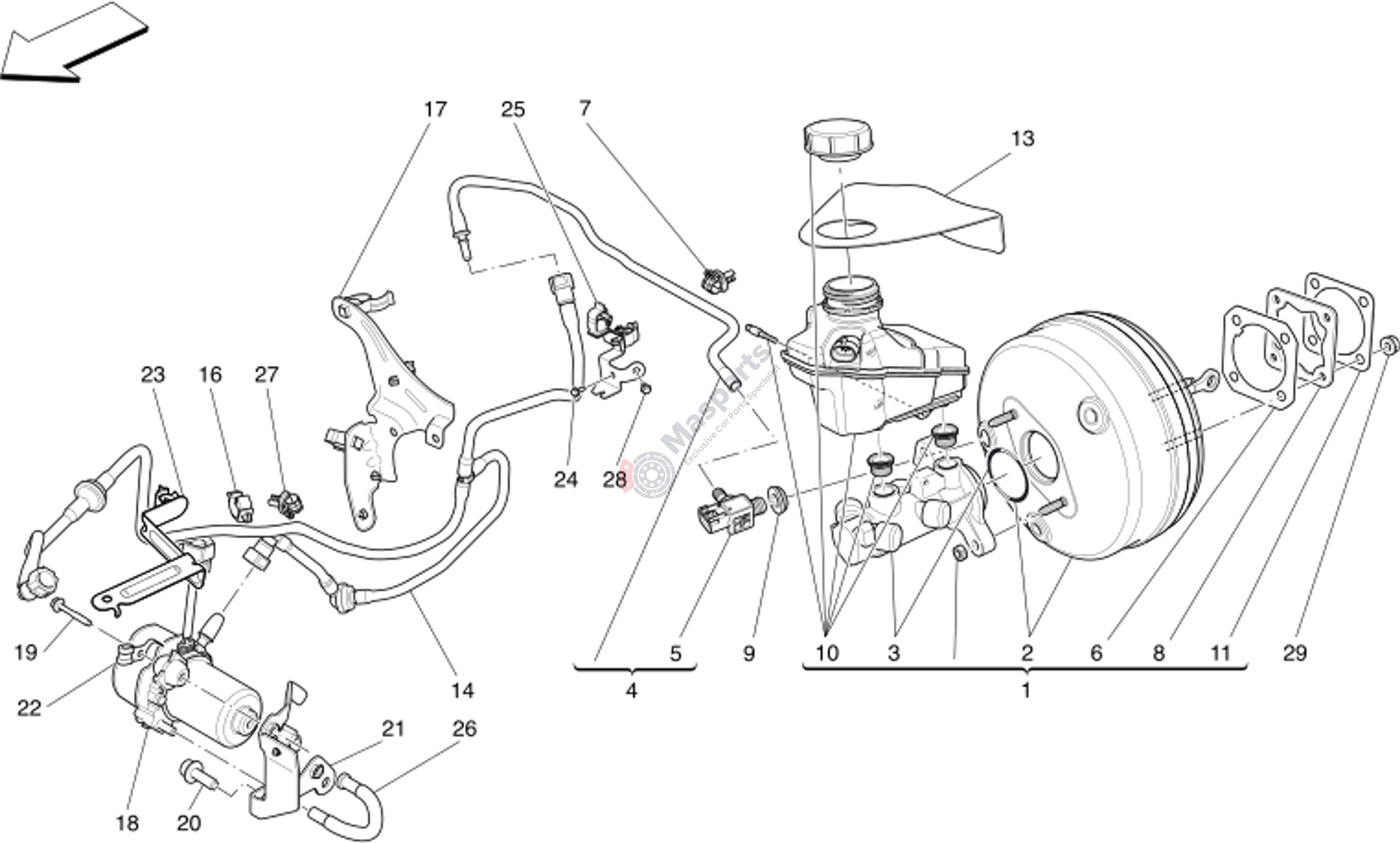

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670006653 | Complete Brake Booster |
$528.17 |
|
|
| 2 | M-673000001 | Brake Booster |
$580.99 |
|
|
| 3 | M-673000002 | Pump (Brake Booster) |
$294.27 |
|
|
| 4 | M-670174167 | Vacuum Pipe Assembly |
$44.71 |
|
|
| 6 | M-673002019 | Brake Booster Gasket |
$38.34 |
|
|
| 7 | M-675000013 | Clip |
$0.95 |
|
|
| 8 | M-673009226 | Spacer |
$41.14 |
|
|
| 9 | M-673002073 | Gasket |
$11.64 |
|
|
| 10 | M-673003415 | Brake Booster Tank |
$178.26 |
|
|
| 11 | M-673009227 | Gasket |
$2.35 |
|
|
| 13 | M-670153081 | Water Shield |
$6.66 |
|
|
| 14 | M-670174171 | Vacuum Hose |
$45.37 |
|
|
| 16 | M-675001092 | Clip |
$1.99 |
|
|
| 17 | M-670158333 | Bracket |
$16.93 |
|
|
| 18 | M-675001155 | Vacuum Pump |
$282.00 |
|
|
| 19 | M-675001131 | Screw |
$1.33 |
|
|
| 20 | M-675001015 | Screw |
$1.72 |
|
|
| 21 | M-670177396 | Bracket Vacuum Pump |
$27.56 |
|
|
| 22 | M-670160885 | Cable Bracket |
$5.51 |
|
|
| 23 | M-670157154 | Bracket |
$16.85 |
|
|
| 24 | M-675000665 | Sc/Hex.Hd Fl. M6 X 12 |
$2.04 |
|
|
| 25 | M-670177593 | Bracket |
$14.19 |
|
|
| 26 | M-670177395 | Pipe |
$44.47 |
|
|
| 27 | M-675001093 | Retaining Clip |
$1.13 |
|
|
| 28 | M-675000126 | Screw |
$1.60 |
|
|
| 29 | M-675001939 | Nut M8 With Washer |
$1.93 |
|
