Diagram image not available

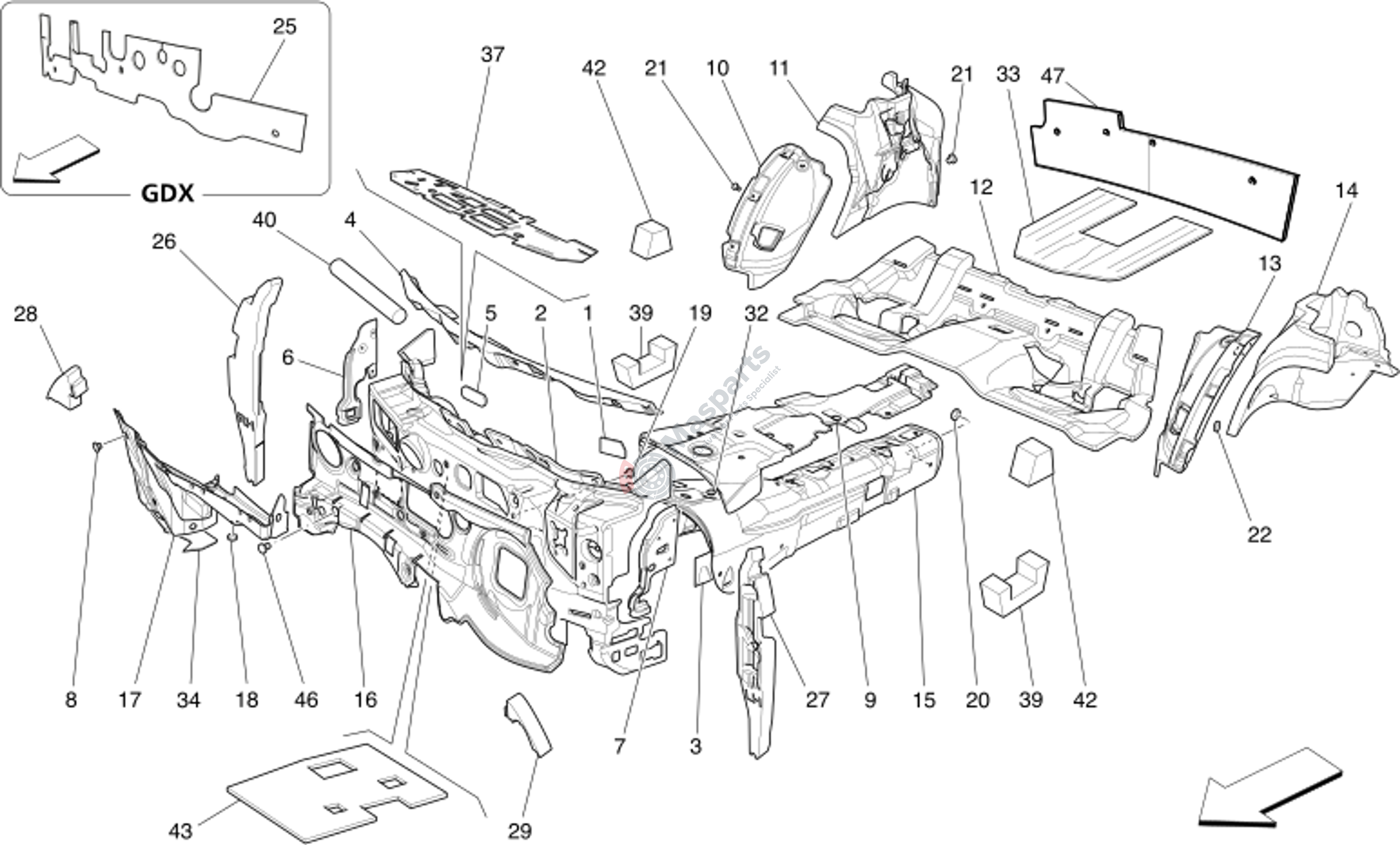

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000151 | Seal Plug |
$1.66 |
|
|
| 2 | M-670105244 | Insulation |
$216.46 |
|
|
| 3 | M-670001856 | Soundproofing |
$3.55 |
|
|
| 5 | M-675000417 | Oval Protection Sheet 48X140 |
$6.92 |
|
|
| 9 | M-670037073 | Central Insulation |
$41.35 |
|
|
| 10 | M-670037434 | Front Part Of Rear Rh Wheelh |
$19.39 |
|
|
| 11 | M-670038084 | Rear Part Of Rear Rh Wheelho |
$21.74 |
|
|
| 12 | M-670108268 | Insulation |
$46.99 |
|
|
| 13 | M-670037435 | Front Part Of Rear Lh Wheelh |
$19.39 |
|
|
| 14 | M-670038083 | Rear Part Of Rear Lh Wheelho |
$21.74 |
|
|
| 15 | M-670155008 | Ext. Tunnel Soundproofing Gu |
$54.27 |
|
|
| 16 | M-670001780 | Engine Compartment Insulatio |
$25.58 |
|
|
| 18 | M-675000453 | Plate |
$1.61 |
|
|
| 20 | M-675000411 | Washer |
$3.58 |
|
|
| 22 | M-675000424 | Plug |
$8.46 |
|
|
| 32 | M-675000679 | Sealing Plug 22Mm |
$10.24 |
|
|
| 33 | M-670030941 | Soundproofing Panel |
$8.78 |
|
|
| 39 | M-670037611 | Insulation Pad |
$8.56 |
|
|
| 40 | M-670100306 | Lh Side Dashboard Insulation |
$9.23 |
|
|
| 42 | M-670037614 | Upper Insulation Pad |
$7.37 |
|
|
| 43 | M-670172653 | Floor Insulation Pad |
$11.49 |
|
